P2138
DTC P2138
Wiring Diagram:
DTC Confirmation Procedure
NOTE: If DTC other than aimed DTC are previously detected in DTC confirmation procedure, be sure to troubleshoot DTC previously detected.
1. Turn ignition switch to ON position.
2. Keep accelerator pedal at fully depressed position for 2 sec.
3. Keep accelerator pedal at idle position for 2 sec.
4. Repeat Step 2) through 3) for 3 times.

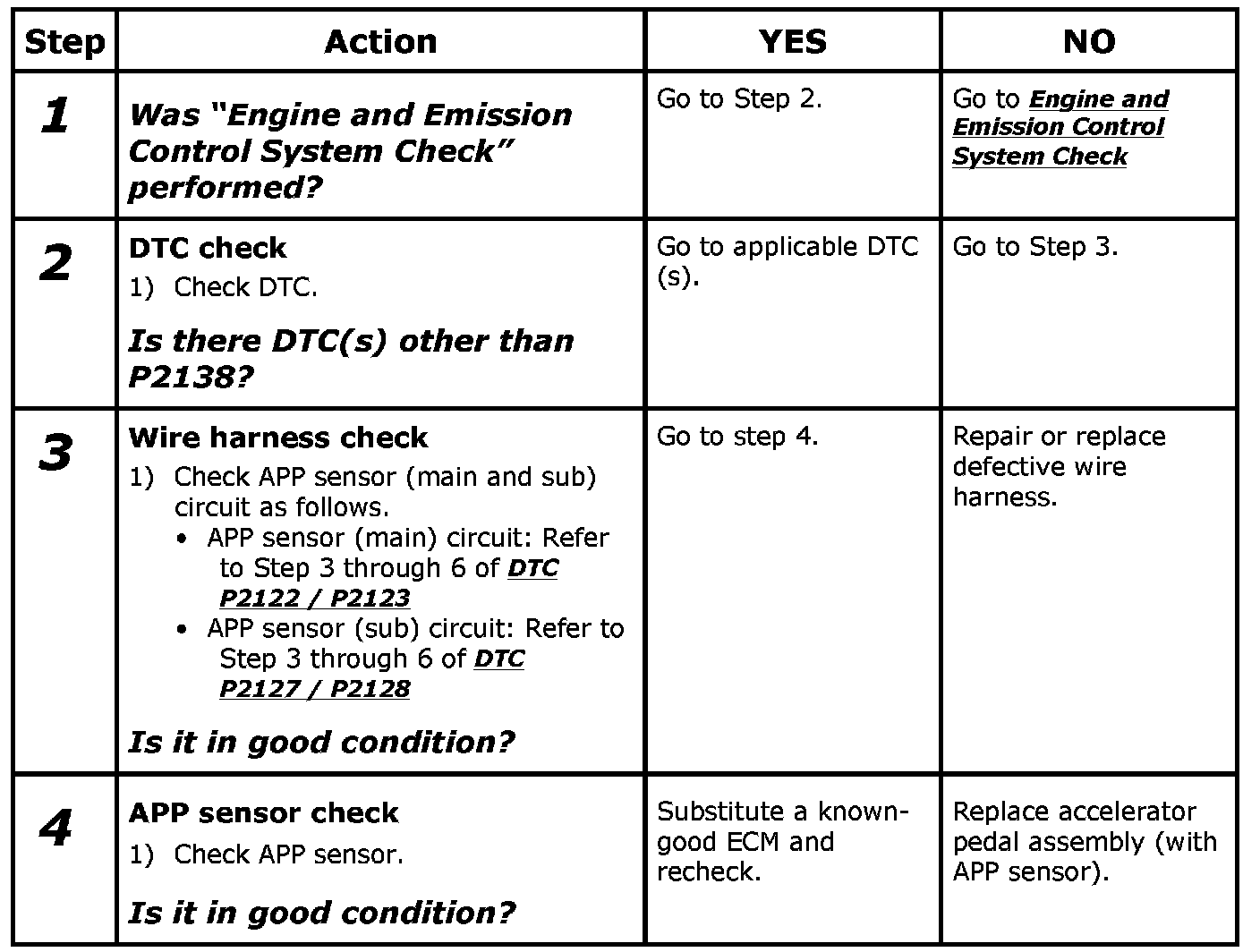

DTC Troubleshooting
