P2135
DTC P2135
Wiring Diagram:
DTC Confirmation Procedure
NOTE: If DTC other than aimed DTC are previously detected in DTC confirmation procedure, be sure to troubleshoot DTC previously detected.
1. Turn ignition switch to ON position.
2. Keep accelerator pedal at fully depressed position for 2 sec.
3. Keep accelerator pedal at release position for 2 sec.
4. Repeat Step 2) through 3) for 3 times.

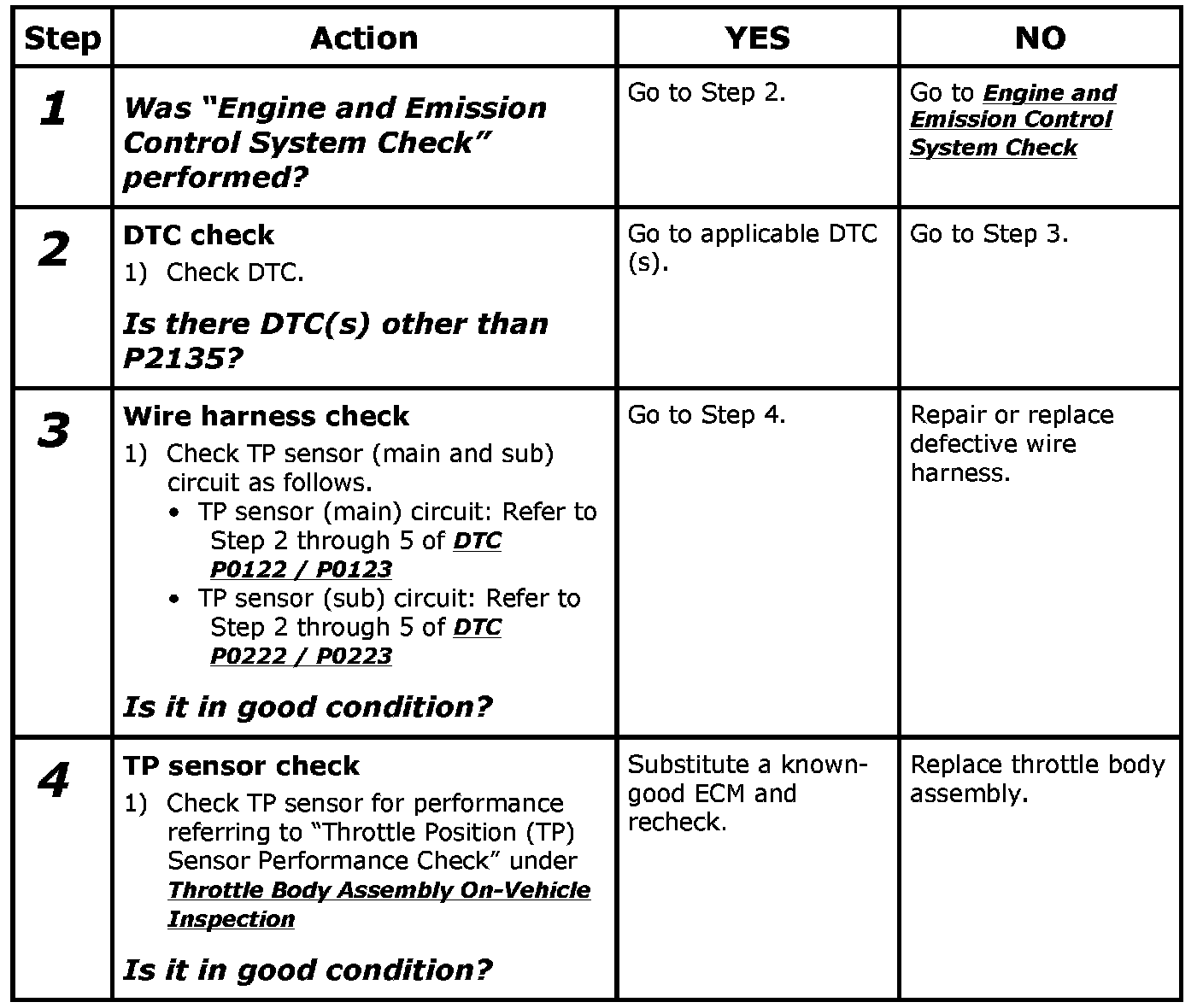

DTC Troubleshooting
