P2103

DTC P2102 / P2103

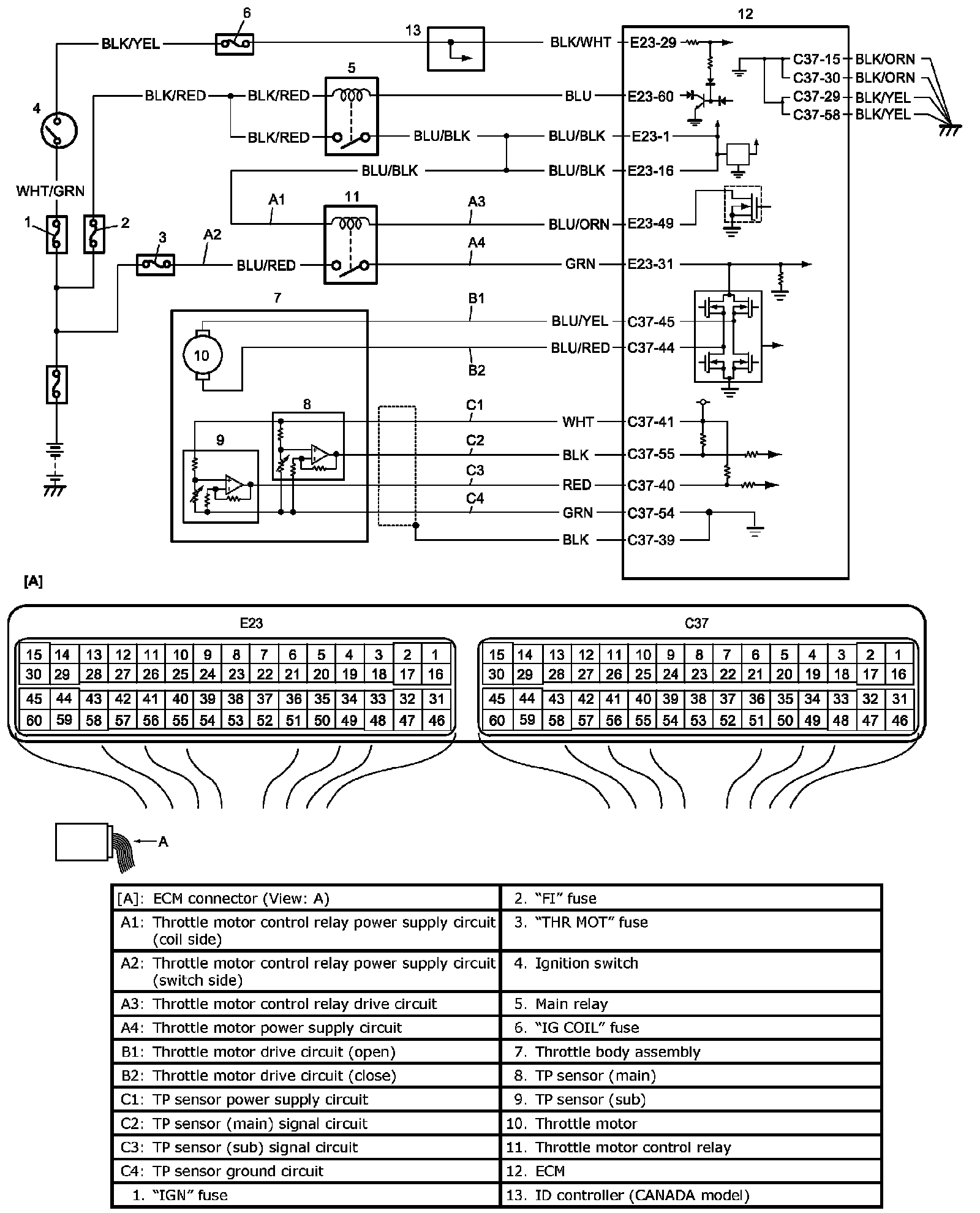

Wiring Diagram:

DTC Confirmation Procedure

1. Turn ignition switch to ON position for 10 sec.
2. Turn OFF ignition switch for 10 sec.

DTC Troubleshooting (P2102)

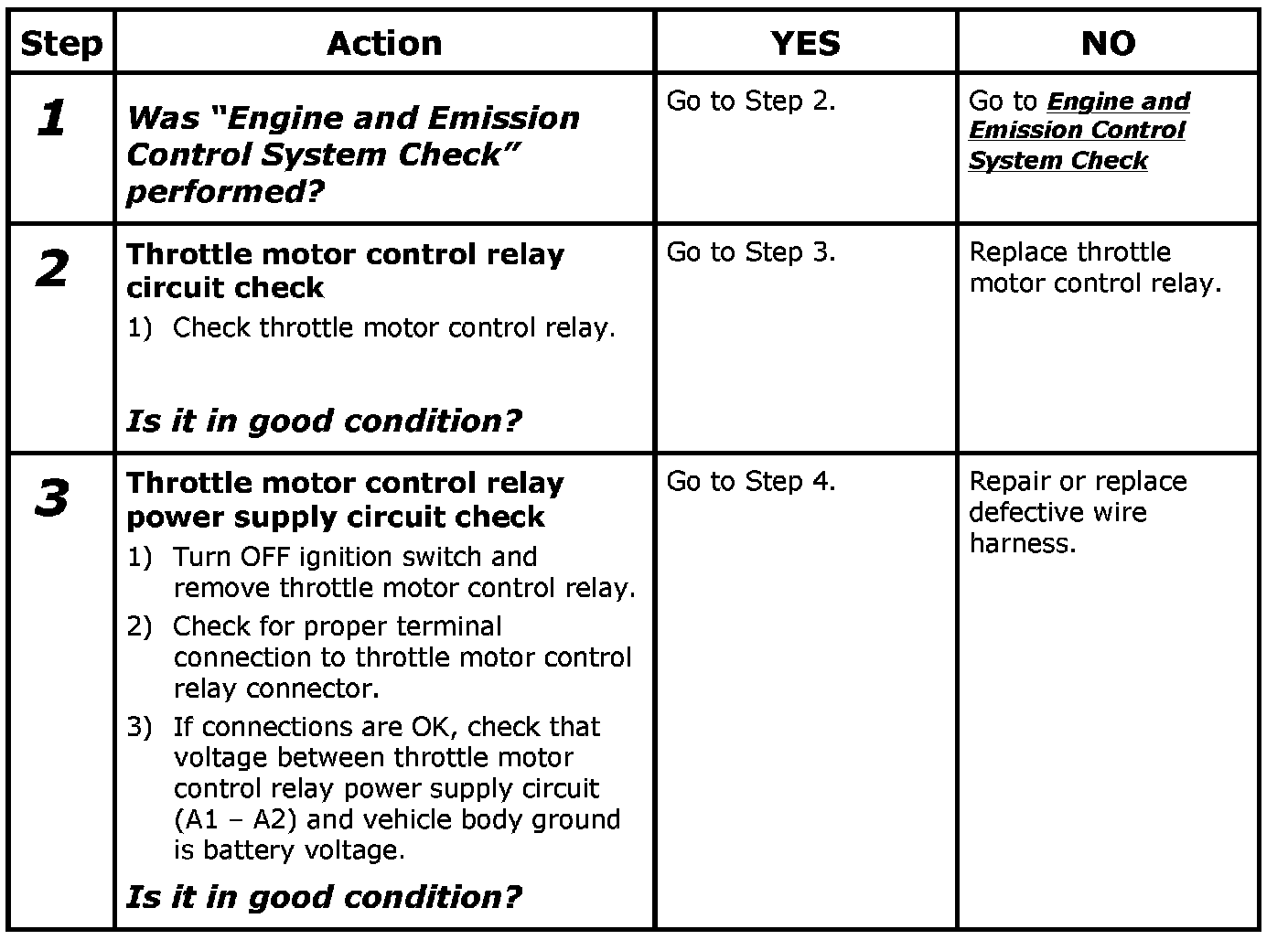

Step 1-3:

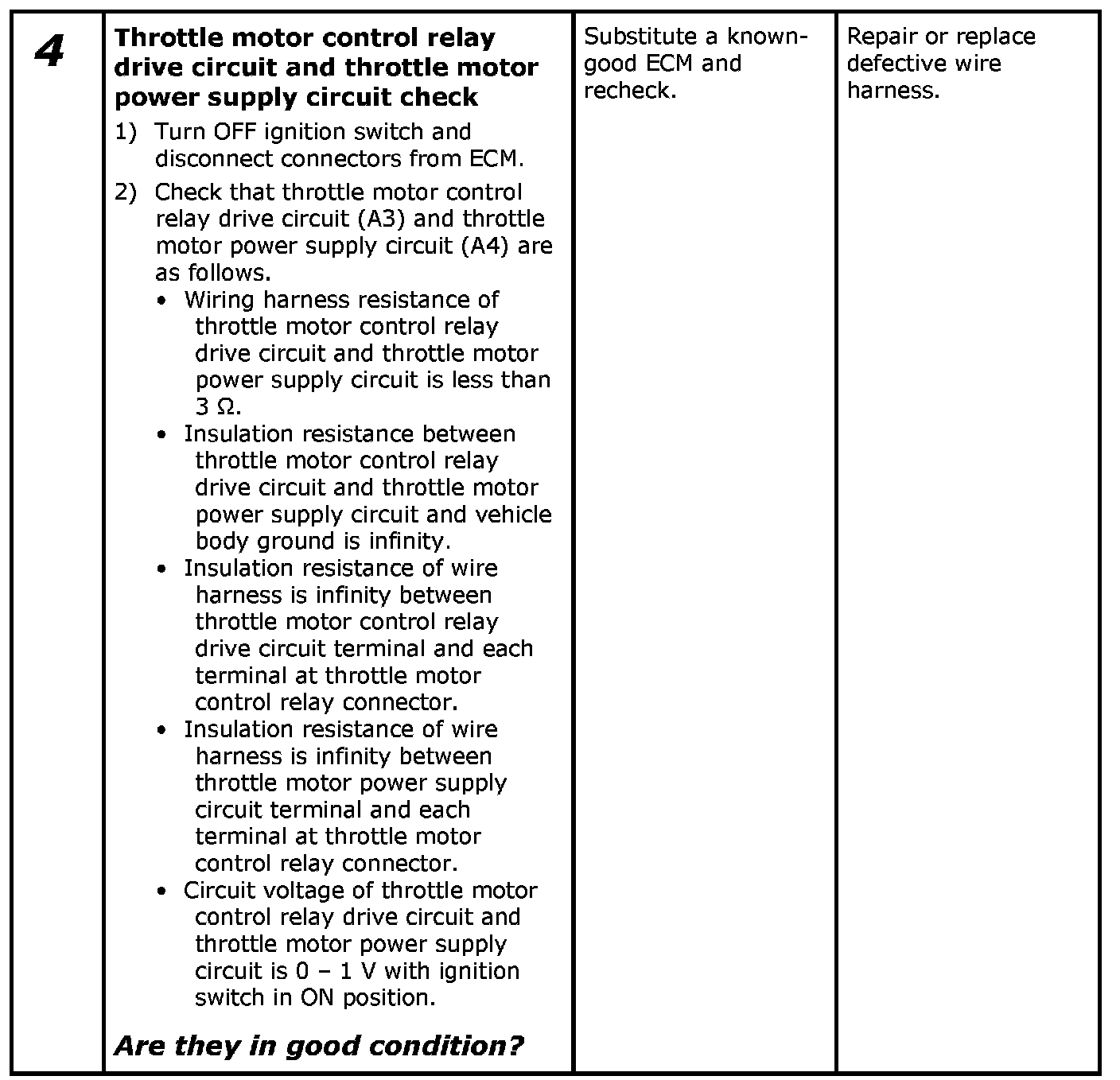

Step 4:

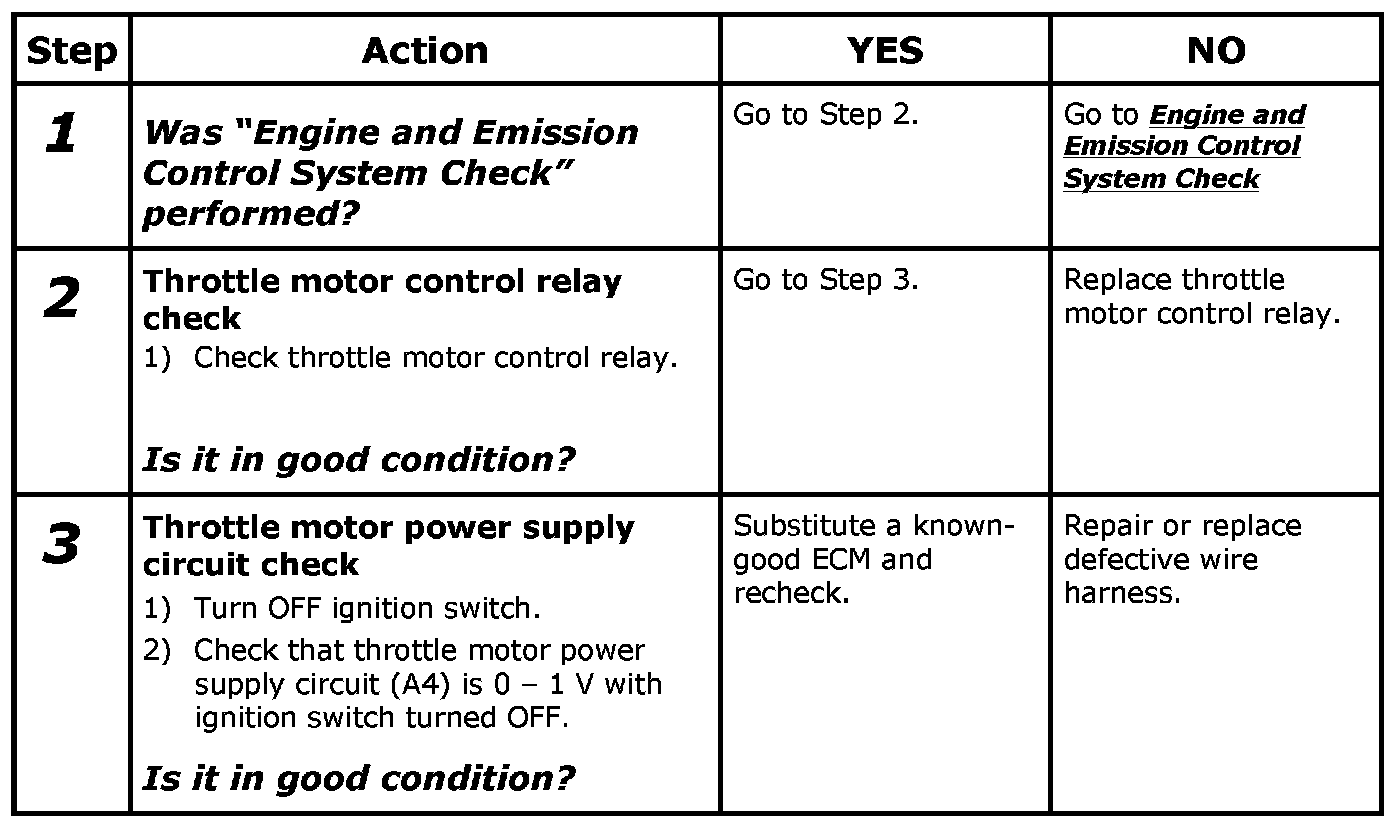

DTC Troubleshooting (P2103)
