P2016

DTC P2016 / P2017

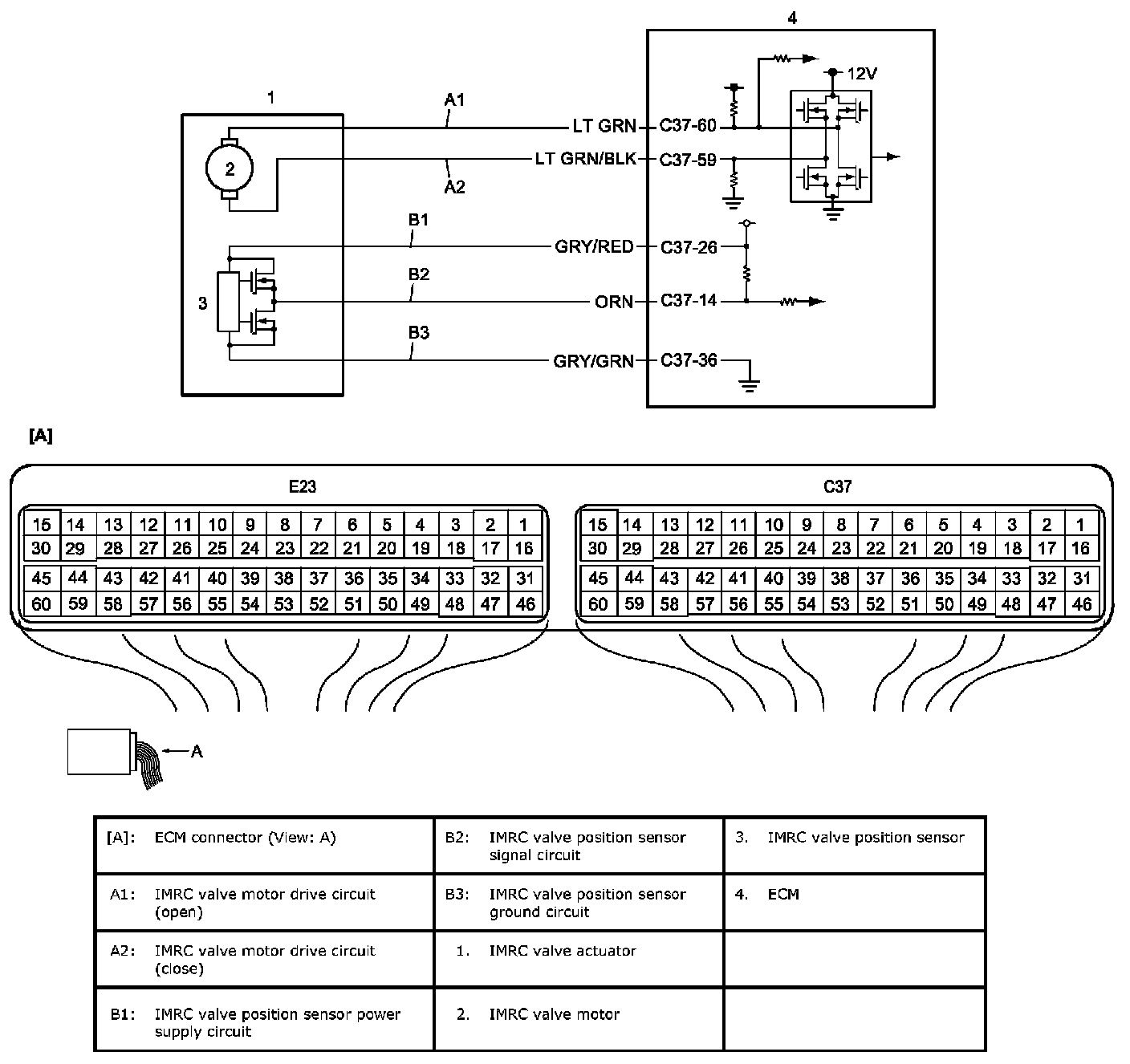

Wiring Diagram:






DTC Confirmation Procedure

1. Turn ignition switch to ON position for 10 sec.

DTC Troubleshooting

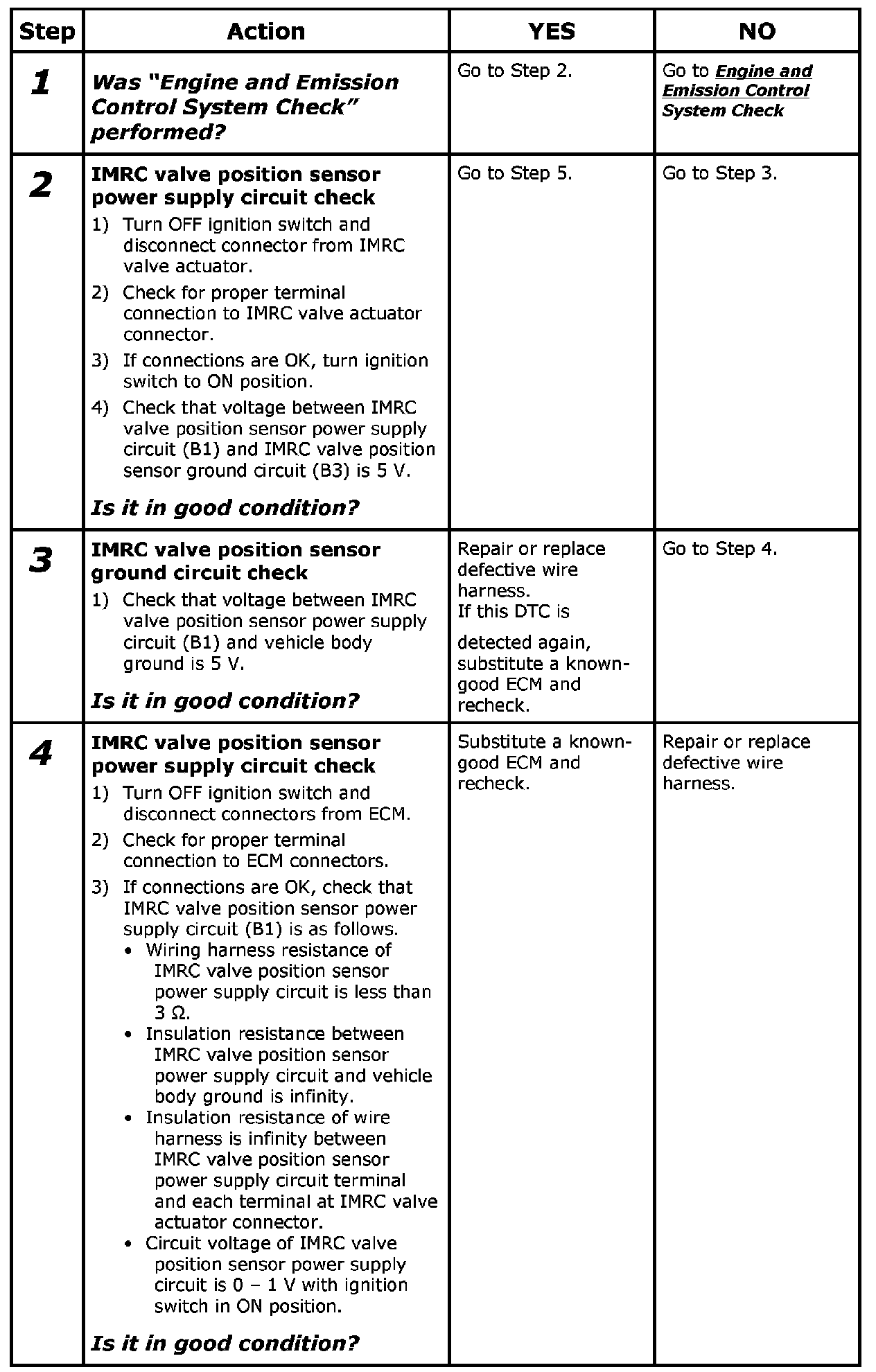

Step 1-4:

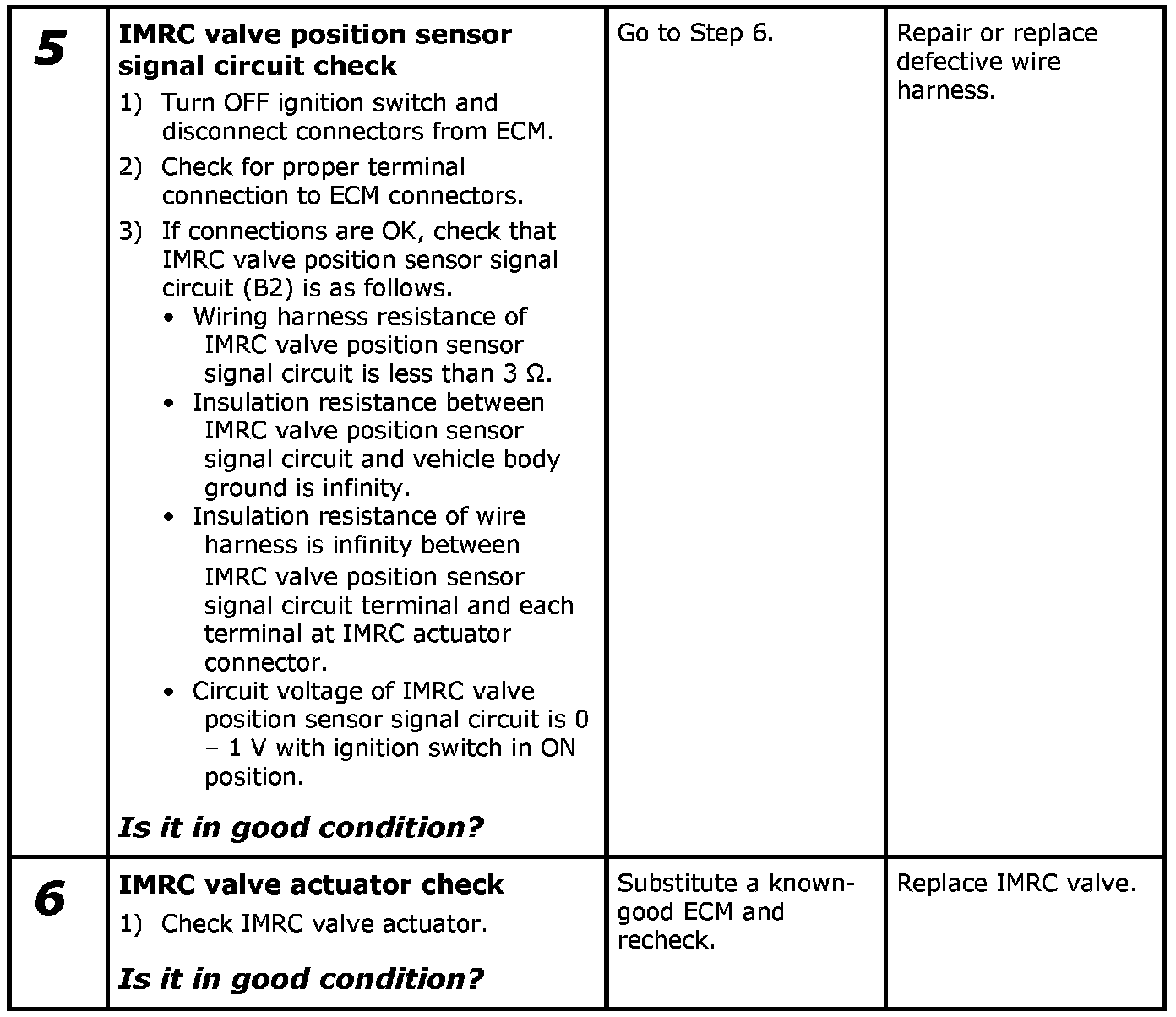

Step 5-6:
