P2006
DTC P2004 / P2006
Wiring Diagram:
DTC Confirmation Procedure
NOTE:
- If DTC other than aimed DTC are previously detected in DTC confirmation procedure, be sure to troubleshoot DTC previously detected.
- Check to make sure that the following condition is satisfied when using this procedure.
- 0 °C (32 °F) < ECT at engine started < 50 °C (122 °F)
1. Run engine at idle speed for 20 sec.
2. Run engine at 3,500 rpm for 20 sec.

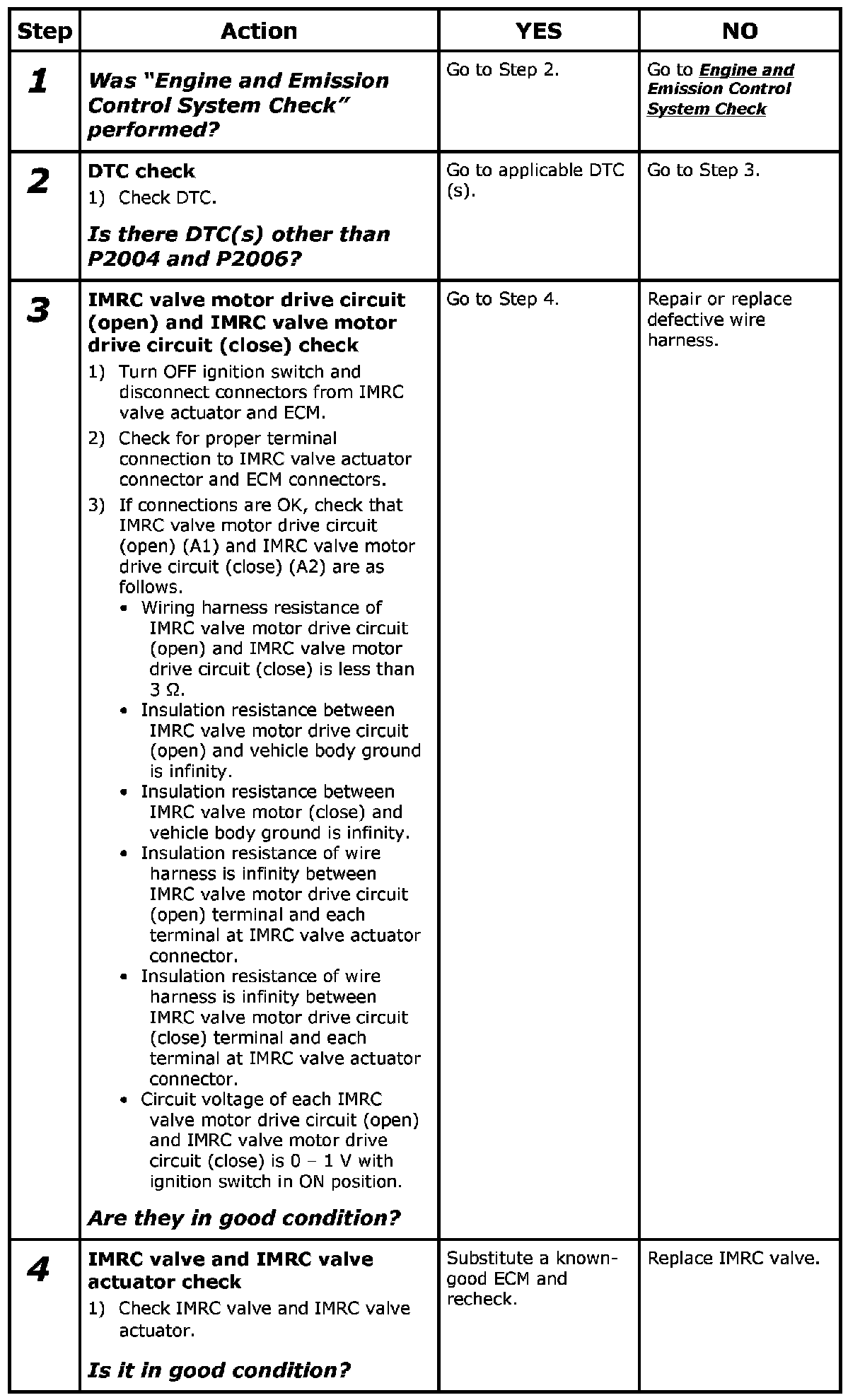

DTC Troubleshooting
