P0970

DTC P0962 / P0966 / P0970: Pressure Control Solenoid "A" Control Circuit Low / Pressure Control Solenoid "B" Control Circuit Low / Pressure Control Solenoid "C" Control Circuit Low

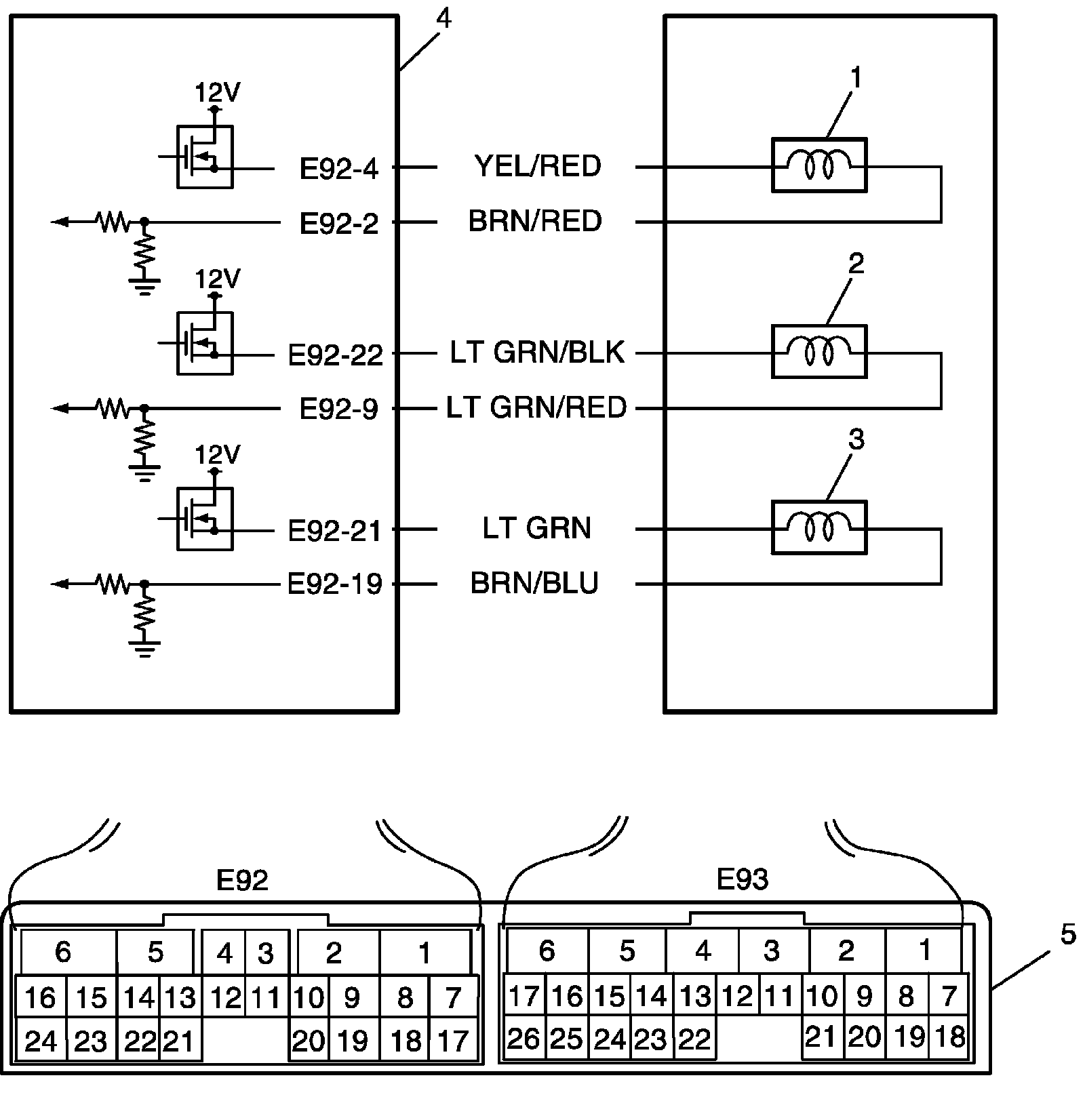

Wiring Diagram








DTC Detecting Condition and Trouble Area





DTC Confirmation Procedure
1) Connect scan tool to DLC with ignition switch OFF.
2) Clear DTCs in TCM and ECM memories by using scan tool.
3) Start engine.
4) Keep engine running at idle speed for 30 seconds or more.
5) Check DTC, pending DTC and freeze-frame data.

DTC Troubleshooting

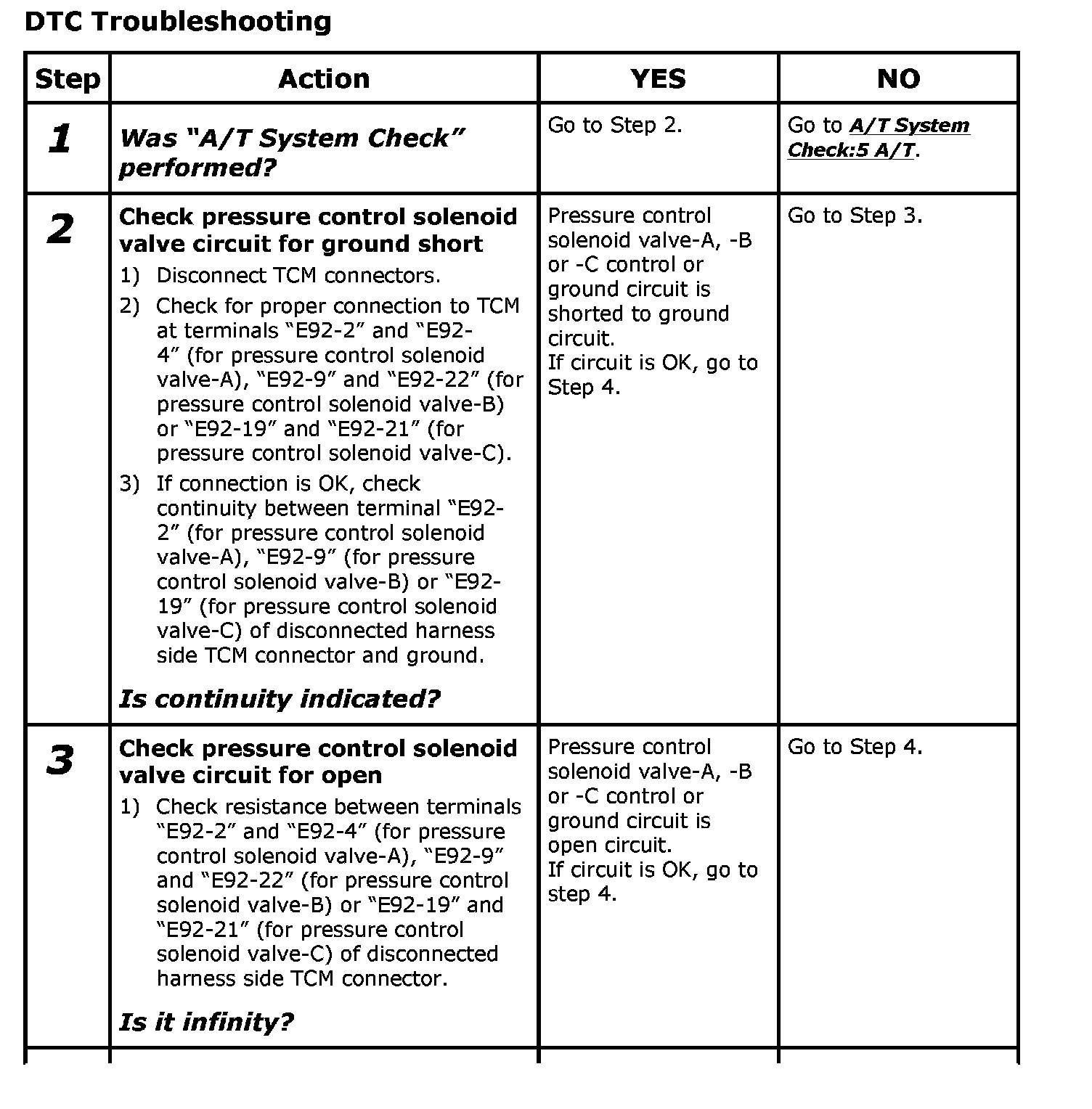

Step 1-3:

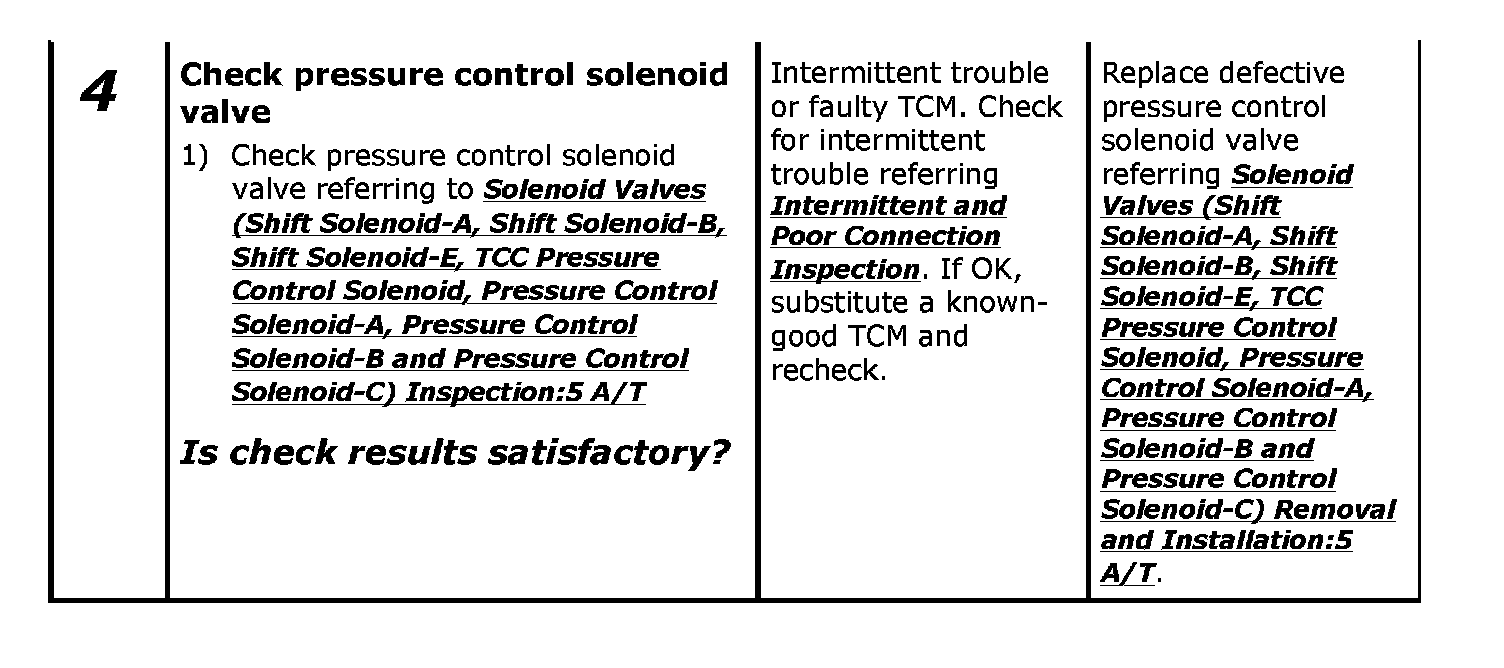

Step 4:
