P0625
DTC P0625 / P0626
Wiring Diagram:
DTC Confirmation Procedure
1. Start engine and warm up to normal operating temperature.
2. Check to make sure that the following conditions are met.
- Blower fan: ON
- Headlight switch: ON
- Rear defogger switch: ON
3. Run engine at idle speed for 5 min.

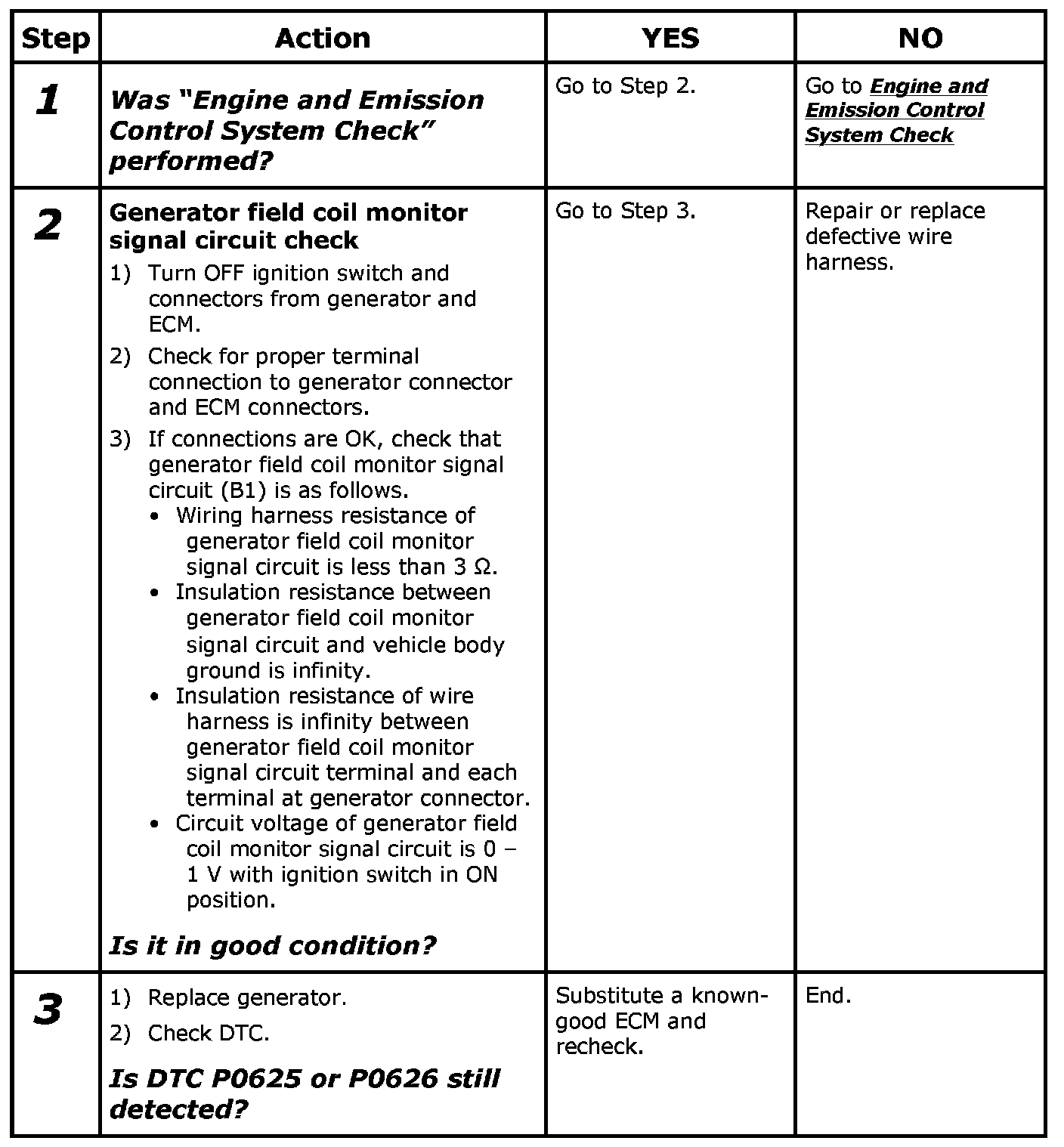

DTC Troubleshooting
