Engine Control Systems

DTC P0602

NOTE: After reprogramming of ECM is executed, if the DTC P0602 is indicated, it is possible that the reprogramming of ECM is not completed correctly.






DTC Confirmation Procedure

1. Turn ignition switch to ON position for 10 sec.

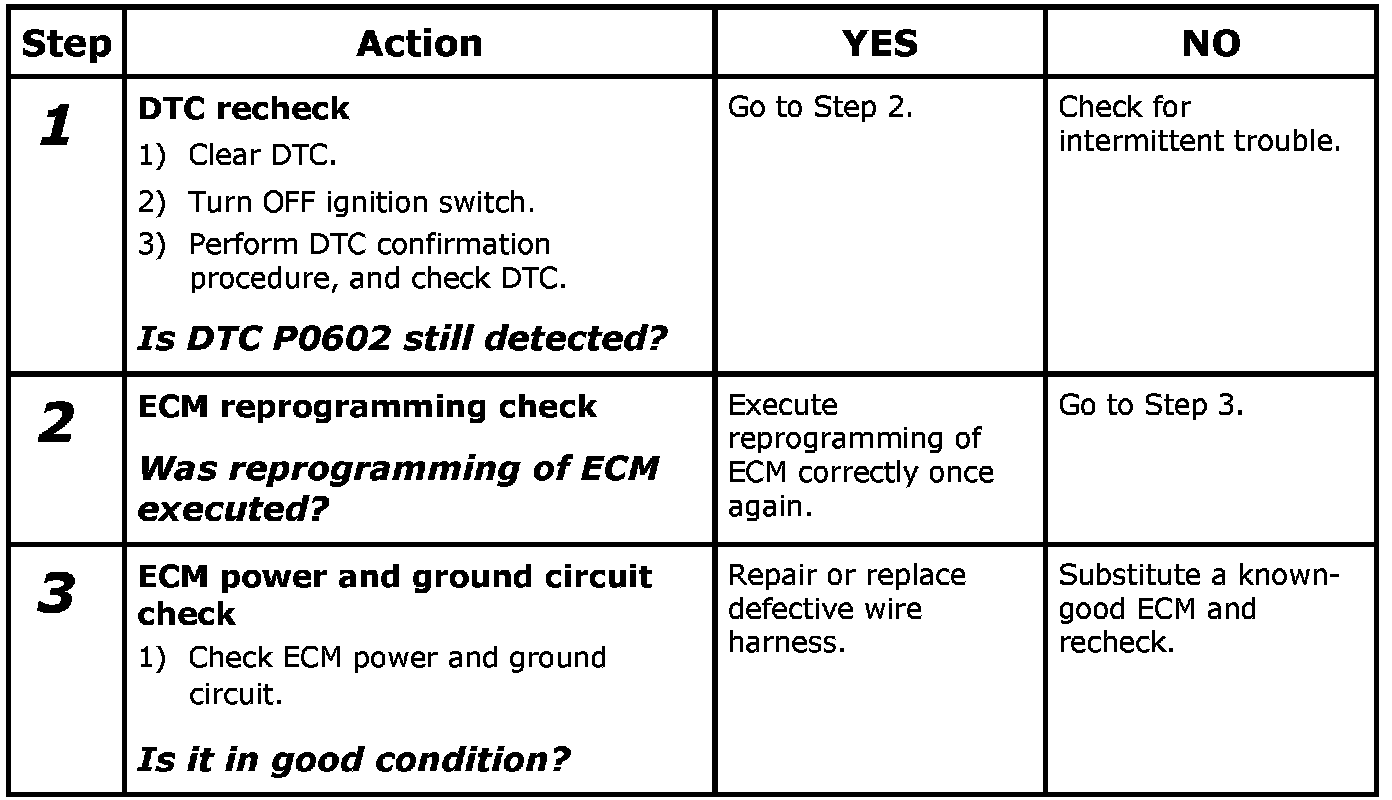

DTC Troubleshooting

Step 1-3:
