P0575

DTC P0575: Cruise Control Input Circuit

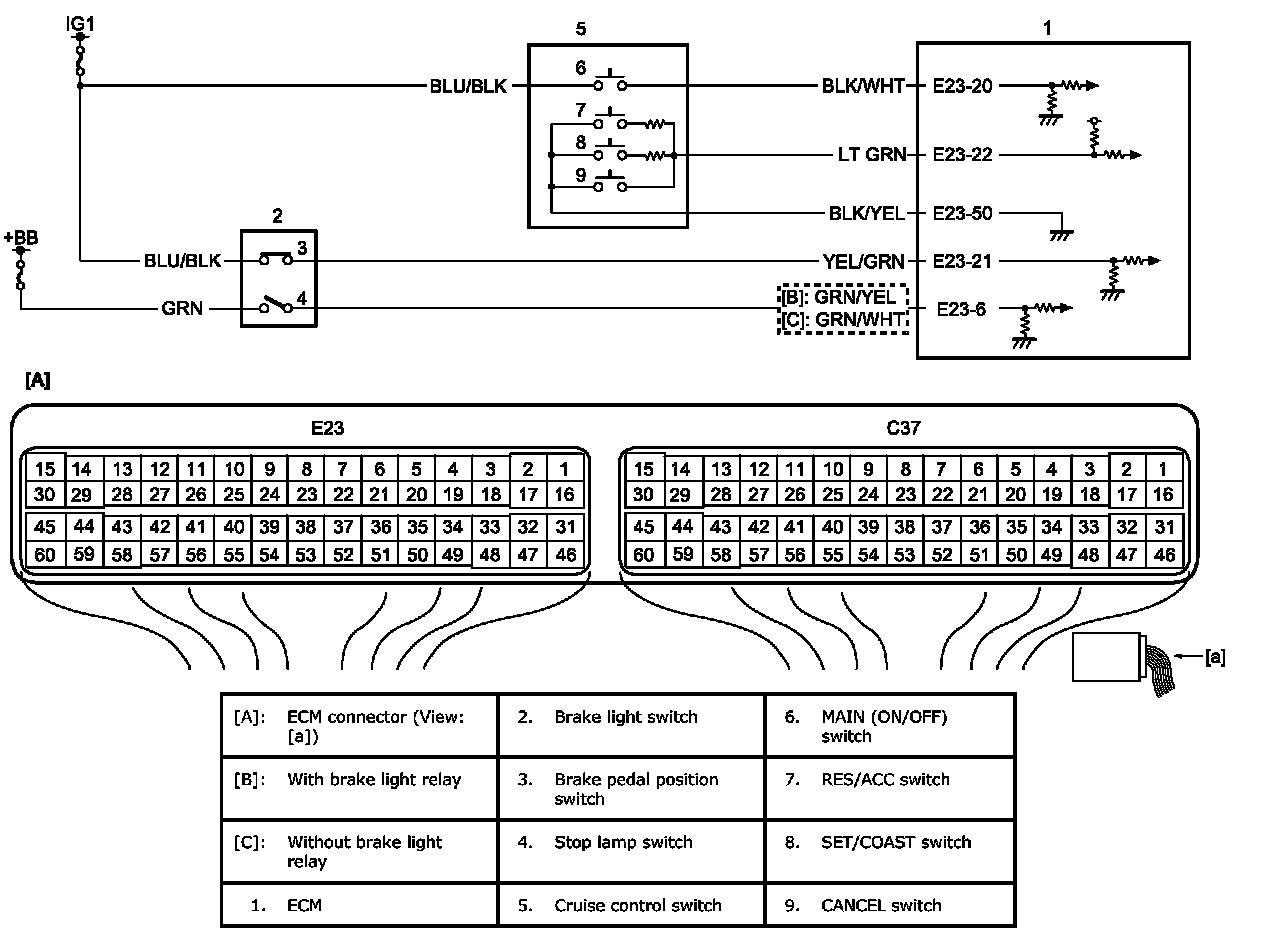

Wiring Diagram

Wiring Diagram:

DTC Detecting Condition and Trouble Area

DTC Detecting Condition And Trouble Area:

DTC Confirmation Procedure
1. With ignition switch turned OFF, connect scan tool to DLC.
2. Turn ON ignition switch and clear DTC.
3. Start engine and warm up to normal operating temperature.
4. Press cruise MAIN (ON/OFF) switch once.
5. Drive vehicle at 40 km/h (25 mph) or higher for 3 min. or more.
6. Stop vehicle.
7. Check DTC.

DTC Troubleshooting

NOTE: Before this troubleshooting, read and observe Precautions for DTC Troubleshooting: J24B or Precautions for DTC Troubleshooting: N32A

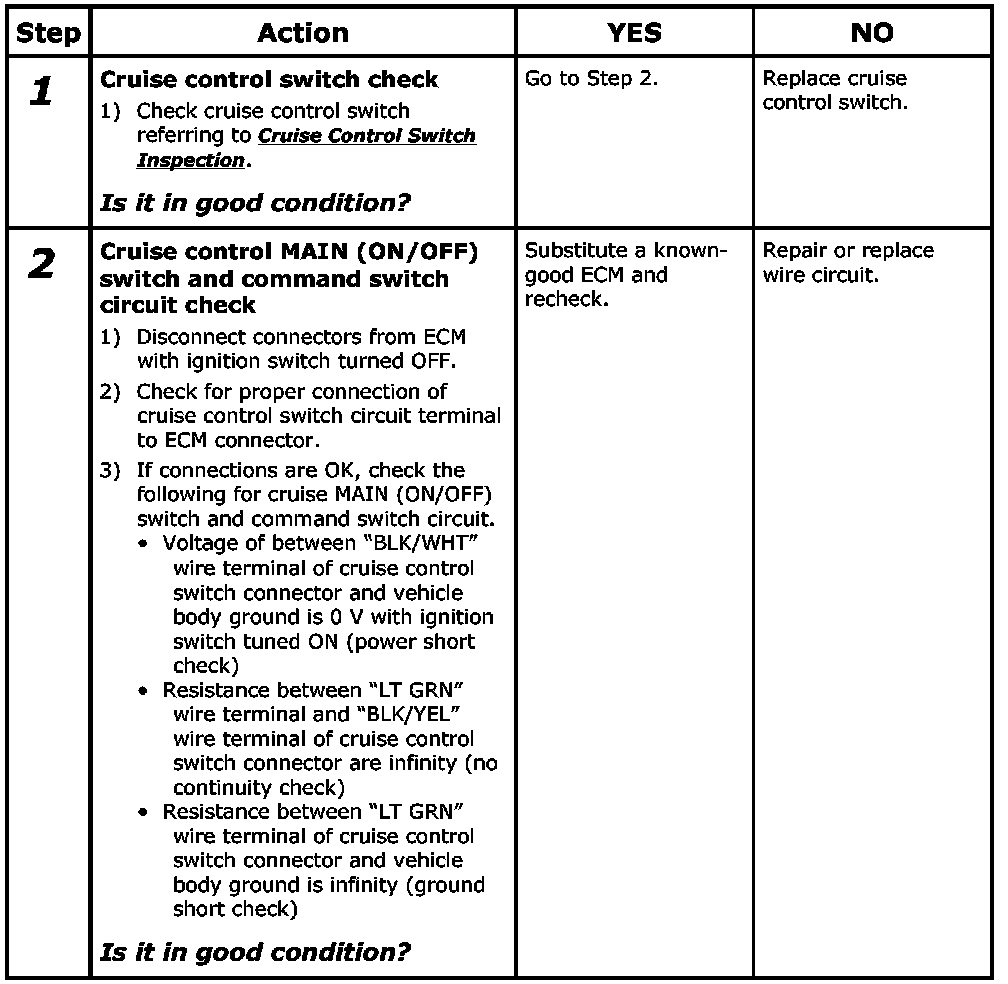

Step 1-2:
