P0133
DTC P0133
Wiring Diagram:
DTC Confirmation Procedure
WARNING:
- When performing a road test, select a place where there is no traffic or possibility of a traffic accident and be very careful during testing to avoid occurrence of an accident.
- Road test should be carried out by 2 persons, a driver and a tester, on a level road.
NOTE: If DTC other than aimed DTC are previously detected in DTC confirmation procedure, be sure to troubleshoot DTC previously detected.
1. Start engine and warm up to normal operating temperature.
2. Drive vehicle at 60 - 100 km/h (37 - 62 mile/h) for 6 min. (Keep throttle valve opening constantly in this step.)

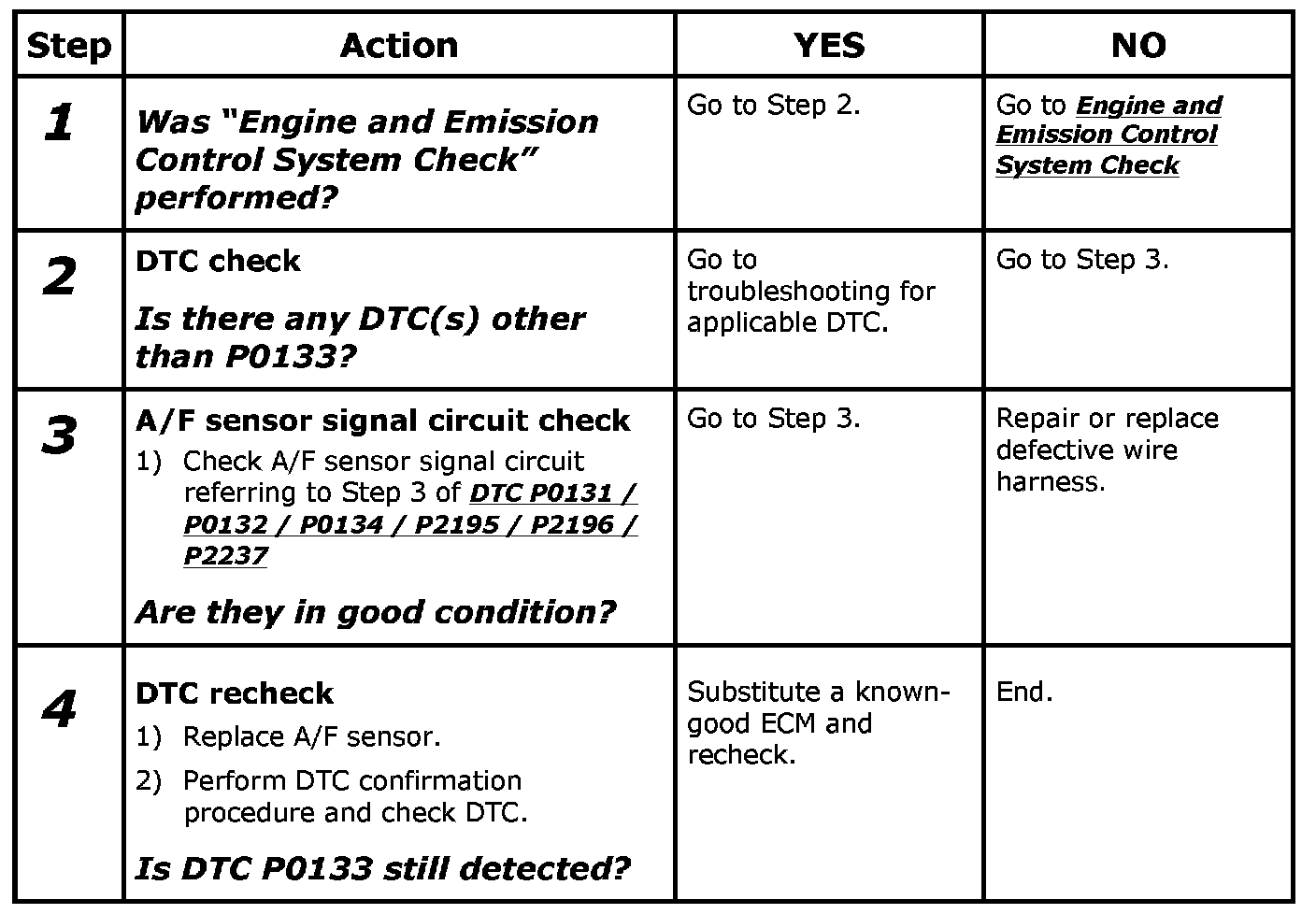

DTC Troubleshooting
