P0111
DTC P0111
Wiring Diagram:
DTC Confirmation Procedure
WARNING:
- When performing a road test, select a place where there is no traffic or possibility of a traffic accident and be very careful during testing to avoid occurrence of an accident.
- Road test should be carried out by 2 persons, a driver and a tester, on a level road.
NOTE:
- If DTC other than aimed DTC are previously detected in DTC confirmation procedure, be sure to troubleshoot DTC previously detected.
- Check to make sure that the following condition is satisfied when using this procedure.
- ECT > 70 °C (158 °F)
1. Start engine and warm up to normal operating temperature.
2. Drive vehicle at 60 - 100 km/h (37 - 62 mile/h) for 10 min.

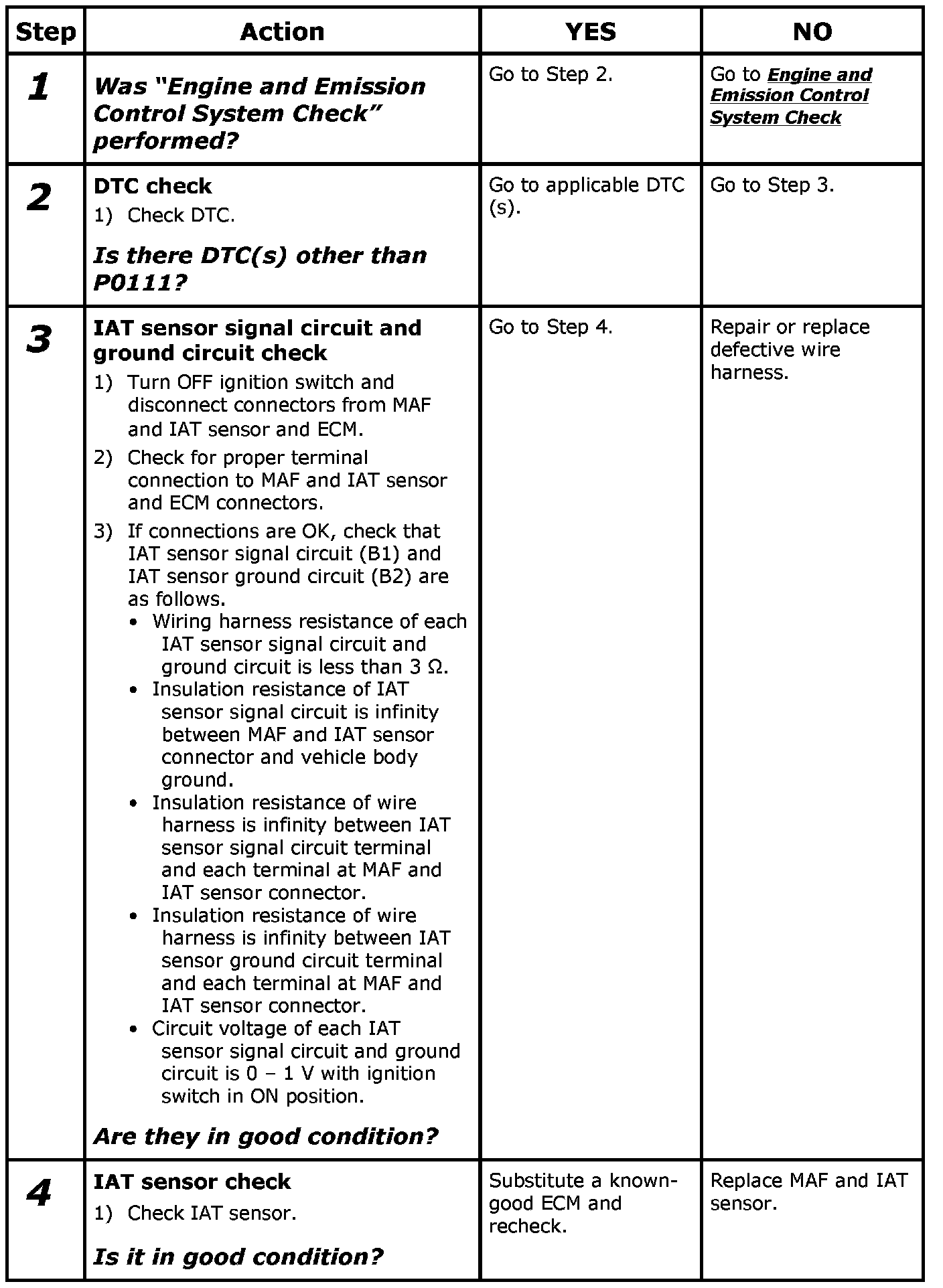

DTC Troubleshooting
