P0037

DTC P0037 / P0038






Wiring Diagram:






DTC Confirmation Procedure

1. Start engine and warm up to normal operating temperature.
2. Run engine at idle speed for 1 min.

DTC Troubleshooting

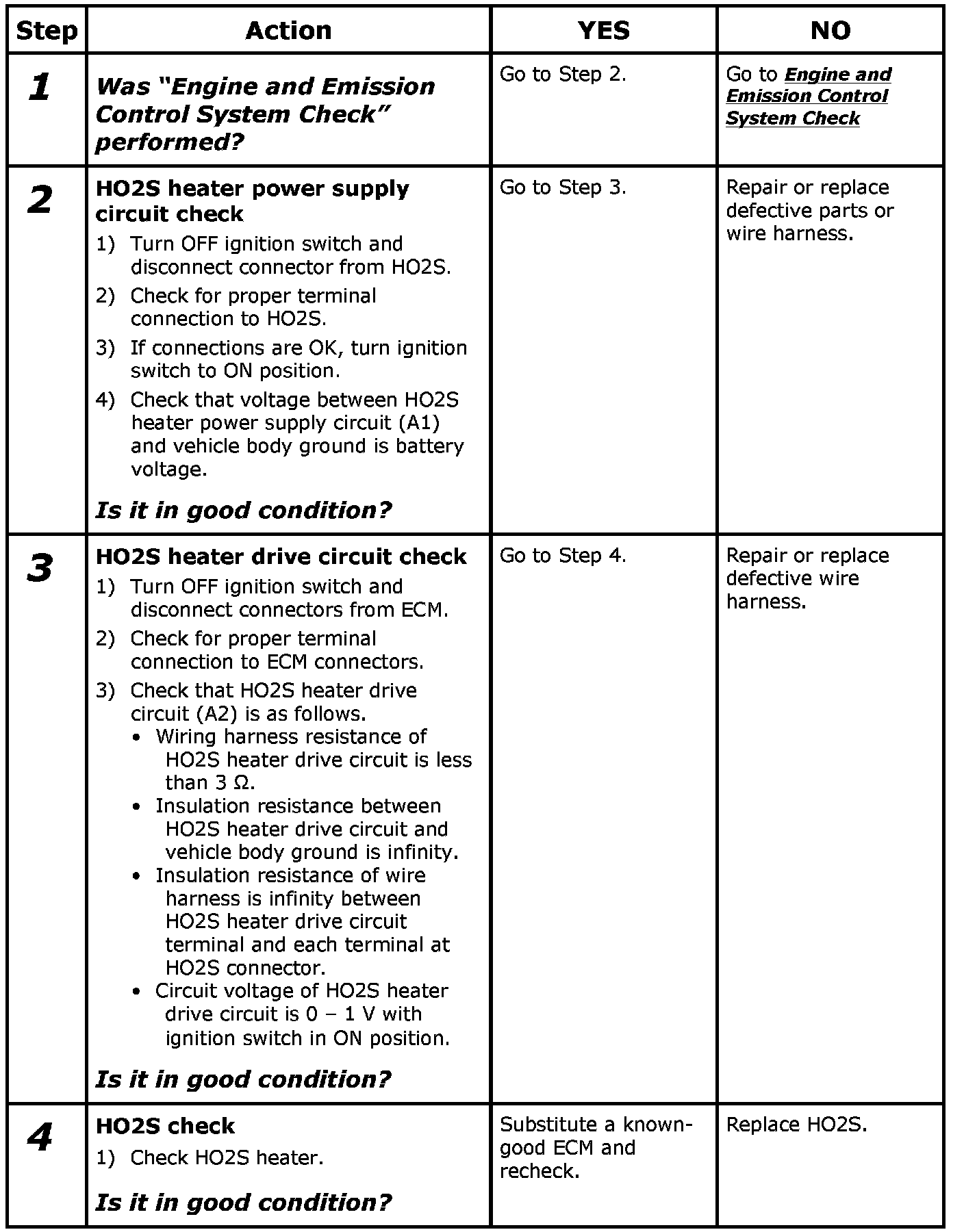

Step 1-4:
