P0032

DTC P0031 / P0032






Wiring Diagram:






DTC Confirmation Procedure

1. Turn ignition switch to ON position for 10 sec.

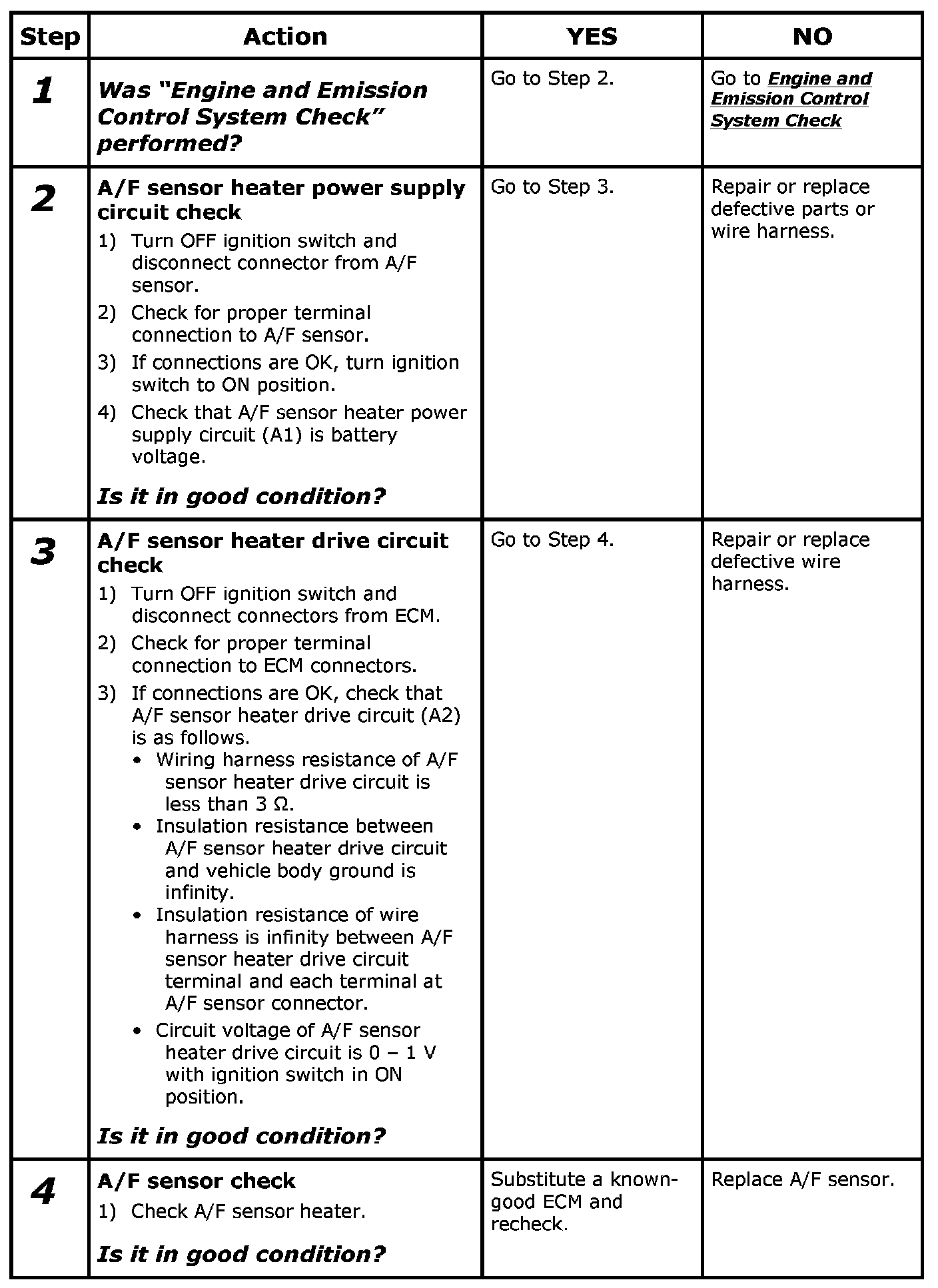

DTC Troubleshooting

Step 1-4:
