P0016

DTC P0016






Wiring Diagram:






DTC Confirmation Procedure

1. Run engine at idle speed for 1 min.

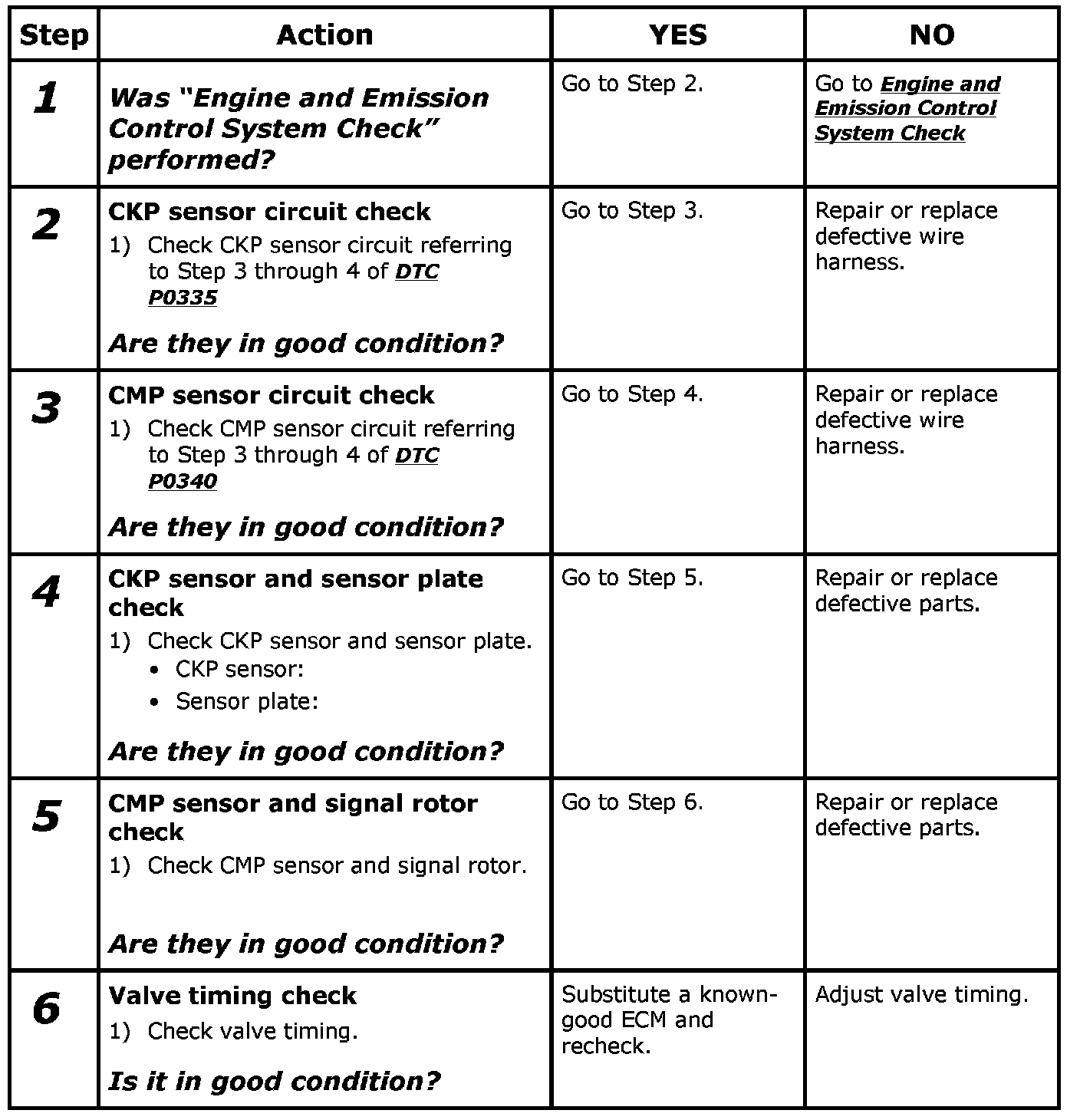

DTC Troubleshooting

Step 1-6:
