P0010

DTC P0010

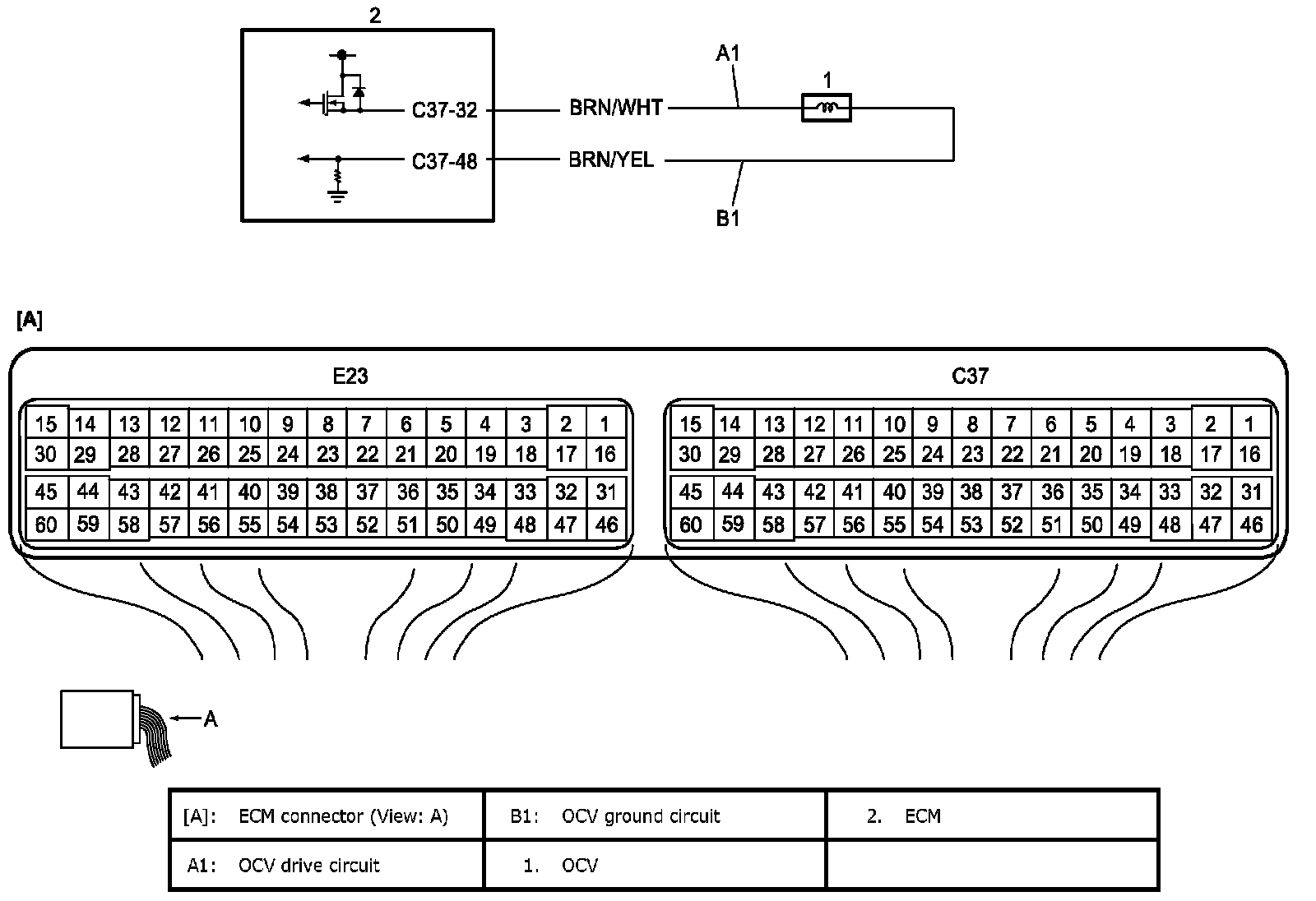

Wiring Diagram:






DTC Confirmation Procedure

1. Start engine and warm up to normal operating temperature.
2. Run engine at idle speed for 5 min.

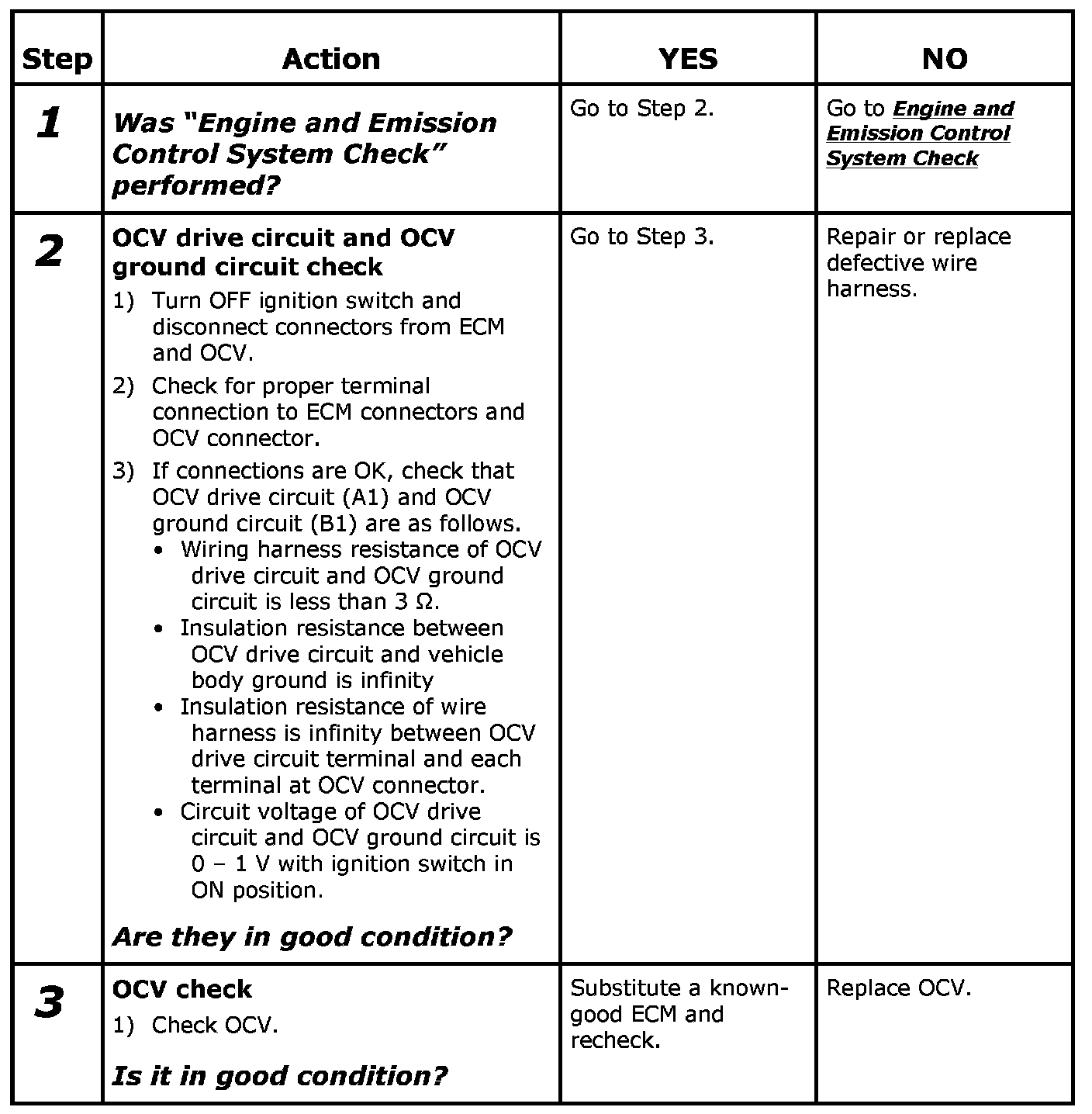

DTC Troubleshooting

Step 1-3:
