Immobilizer Control System

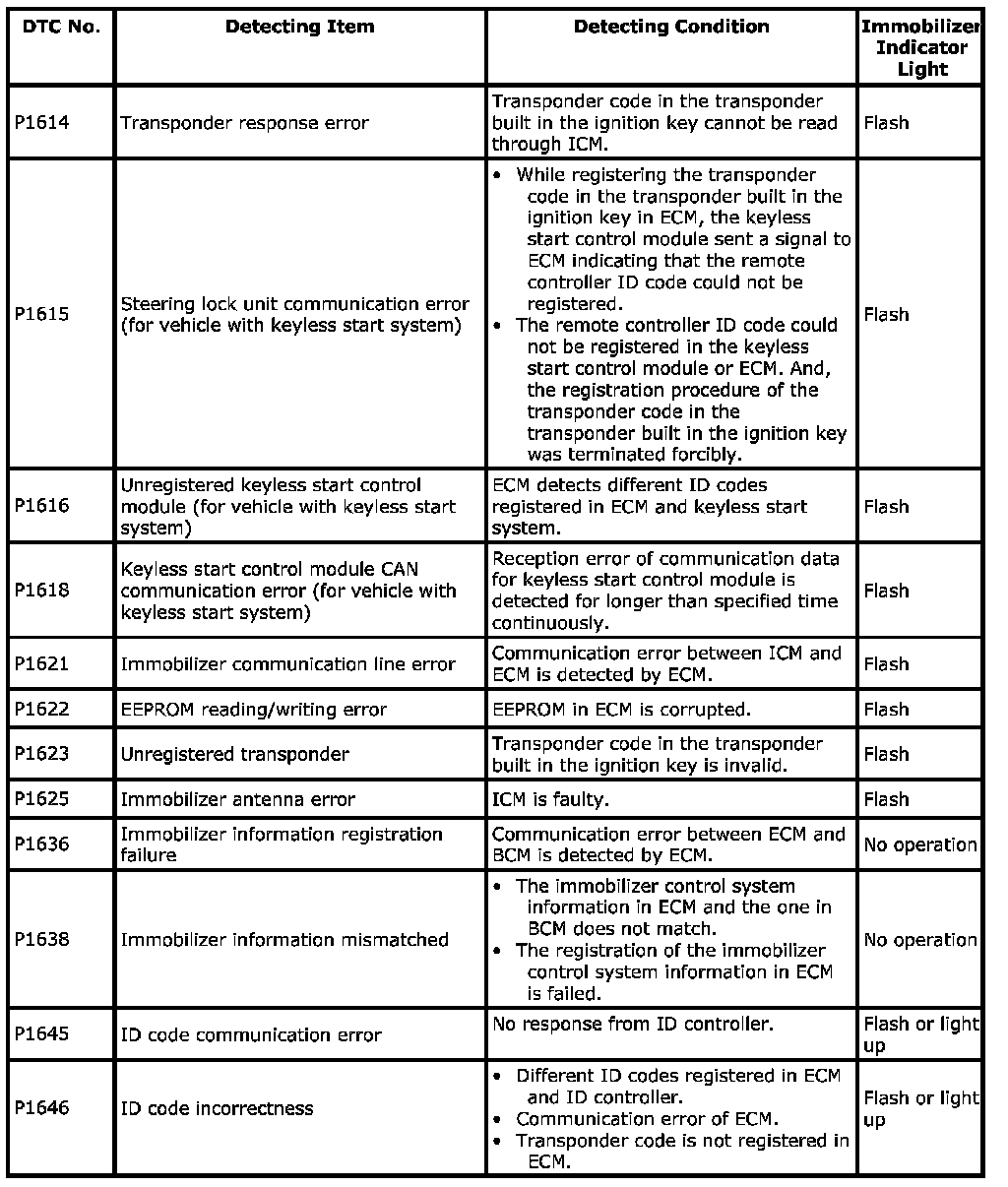

DTC Table

ECM

NOTE:
- ECM detects diagnostic trouble code (DTC). ICM does not.

P1614-P1646:

- If any DTC other than the above DTCs is detected, refer to DTC Table: N32A or DTC Table: J24B. DTC Table
