Fail-Safe Table

Fail-Safe Table

NOTE: For identification of each cylinder, refer to Precautions for Identification of Cylinder.

When any of the following DTCs is detected, ECM enters fail-safe mode as long as malfunction continues to exist but that mode is canceled when ECM detects normal condition.

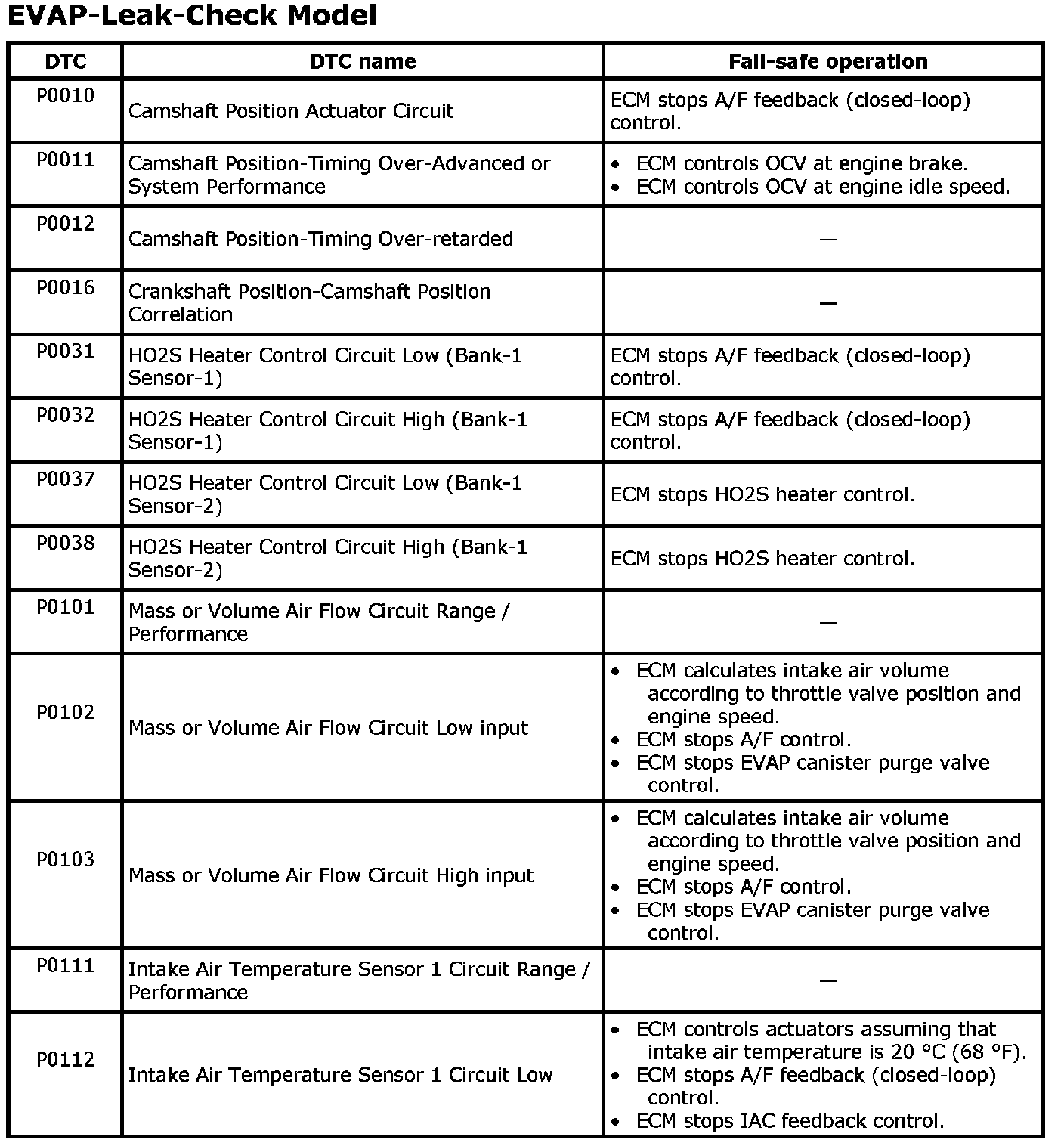

EVAP-Leak-Check Model

P0010-P0112:

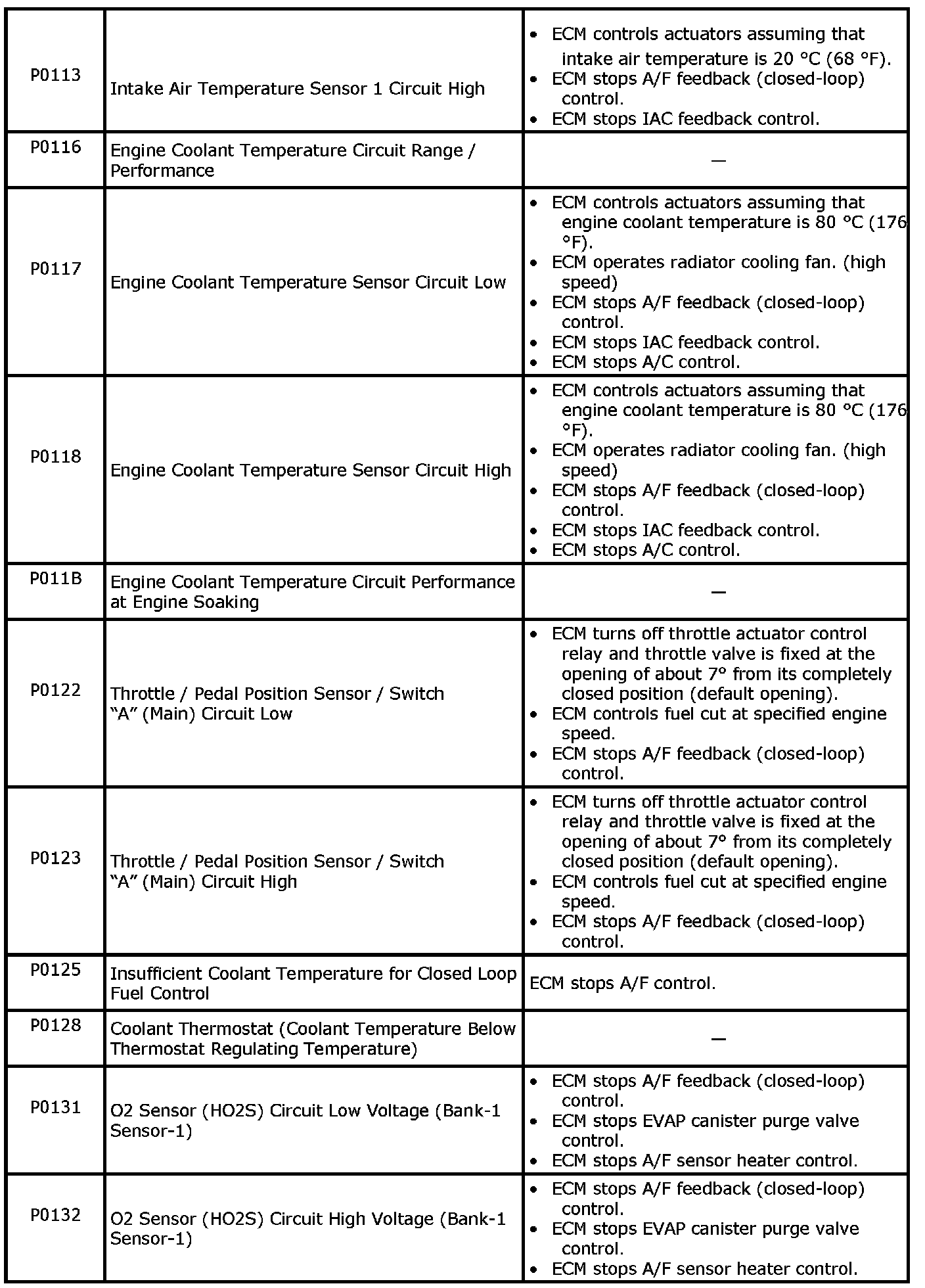

P0113-P0132:

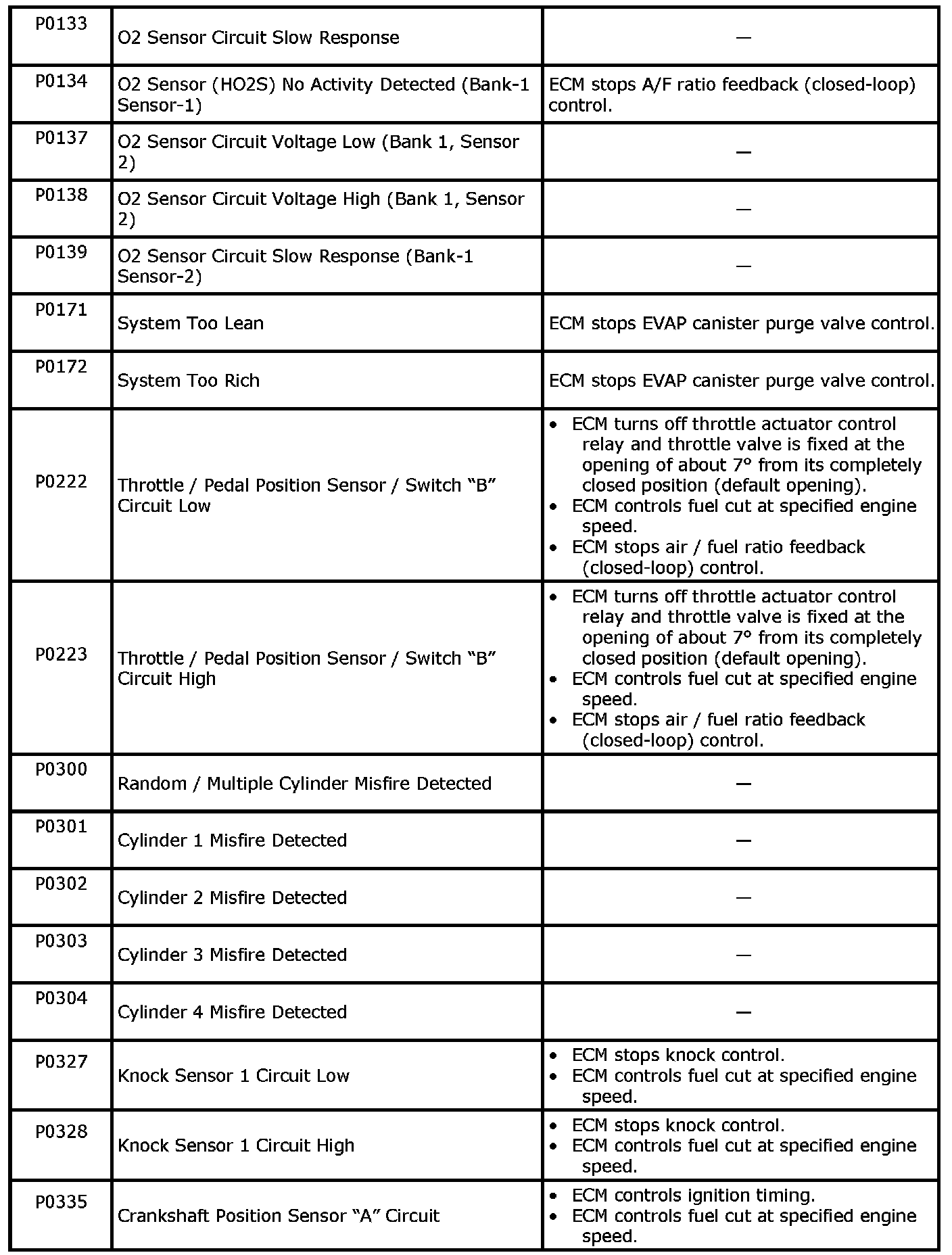

P0133-P0335:

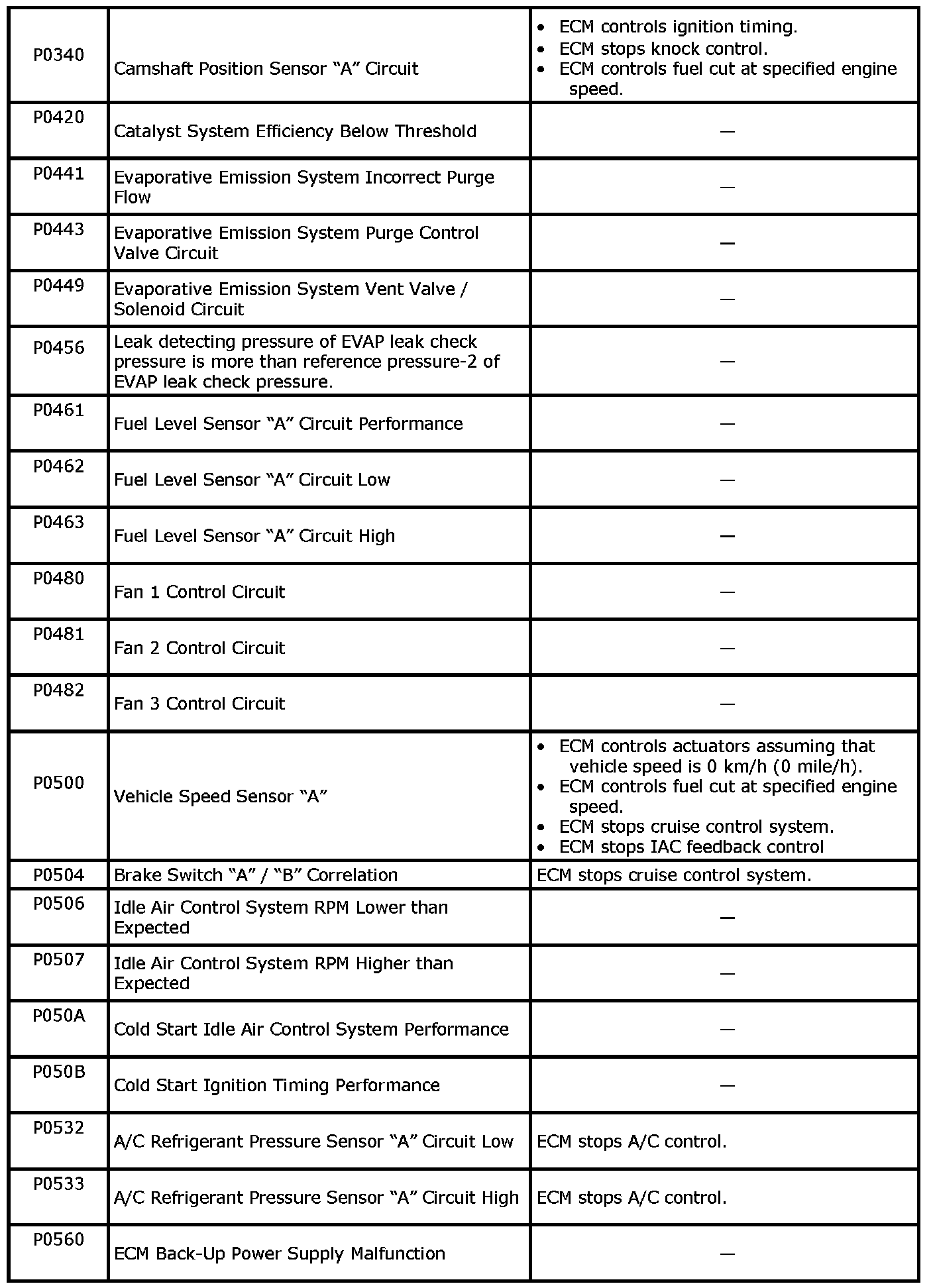

P0340-P0560:

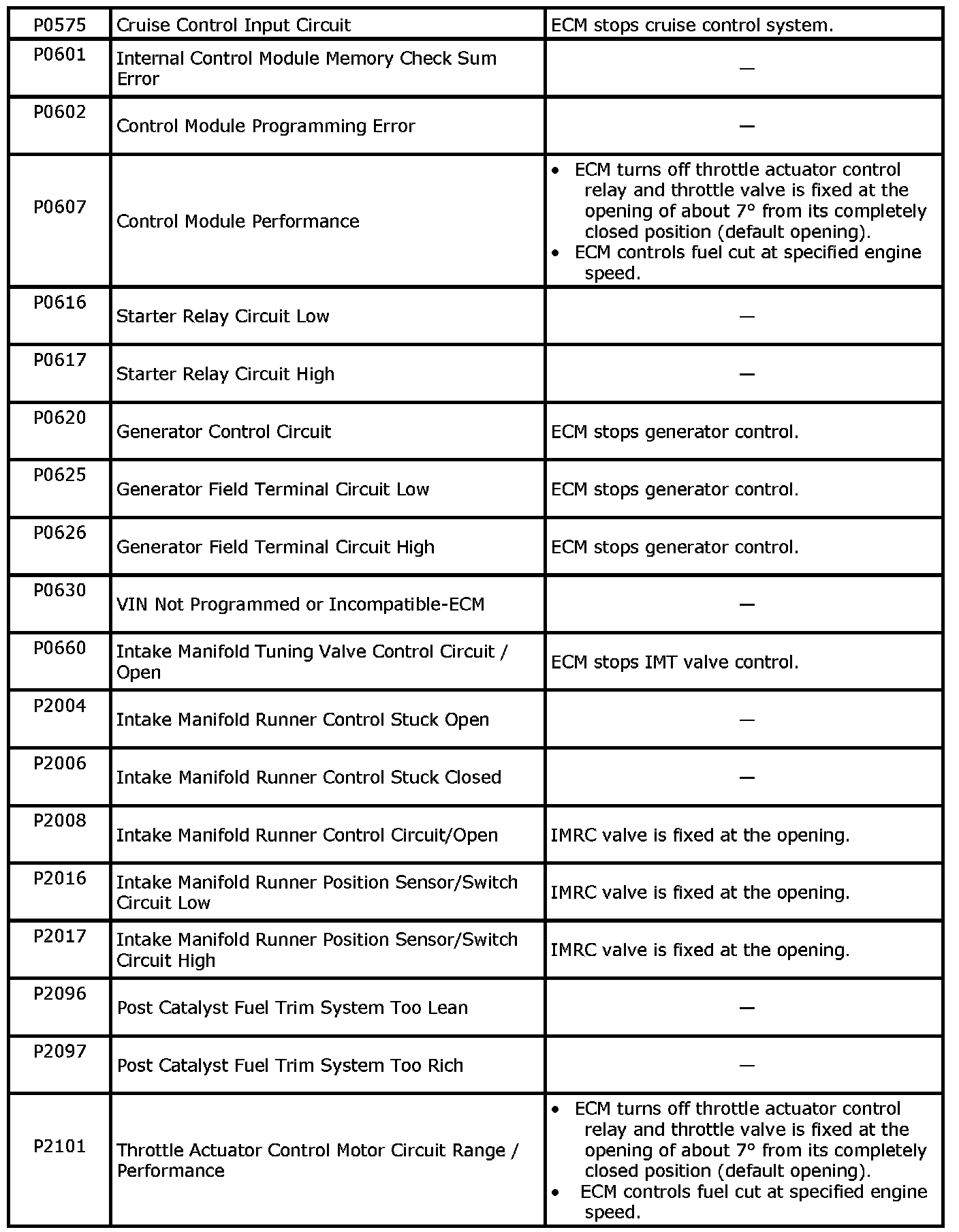

P0575-P2101:

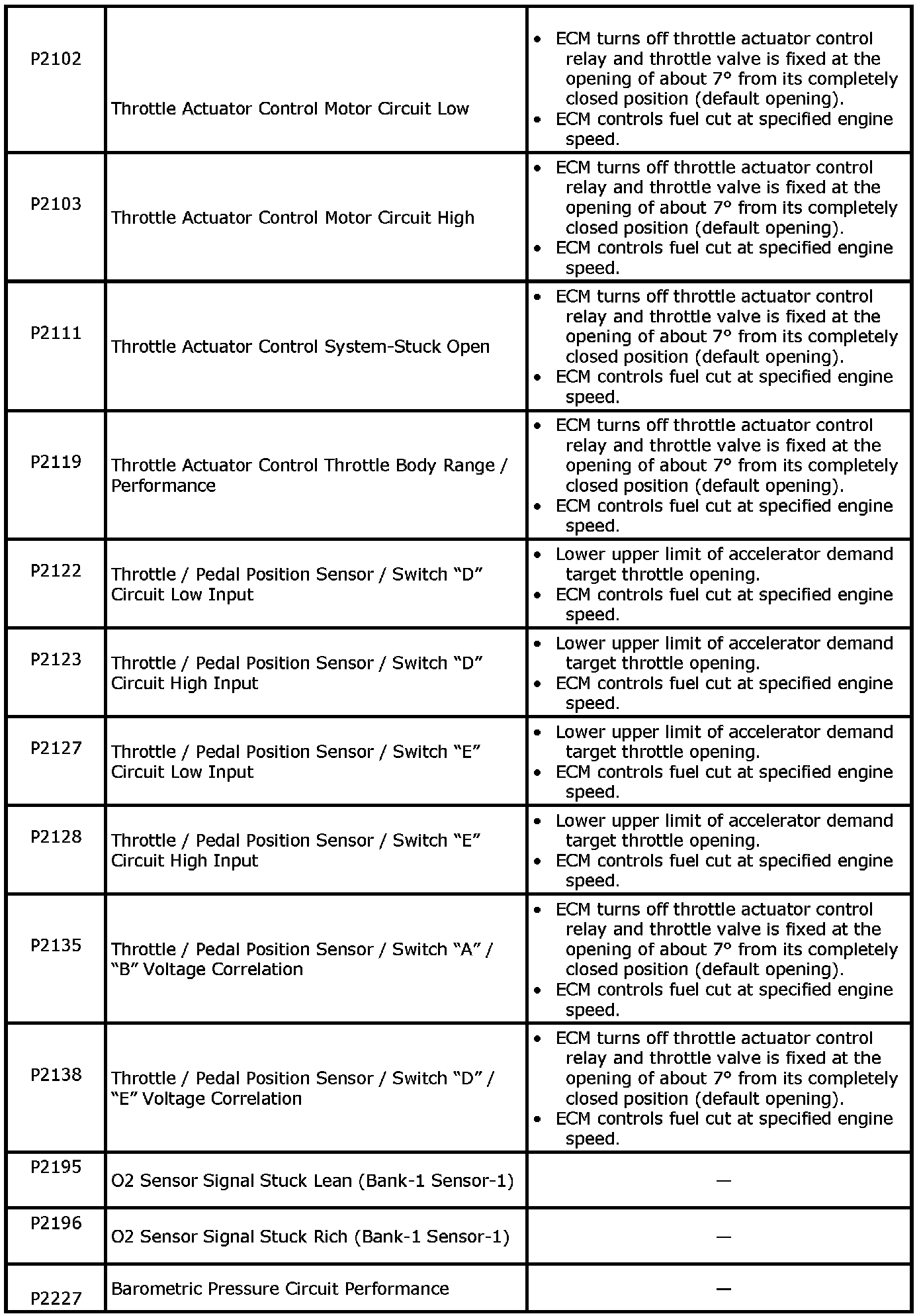

P2102-P2227:

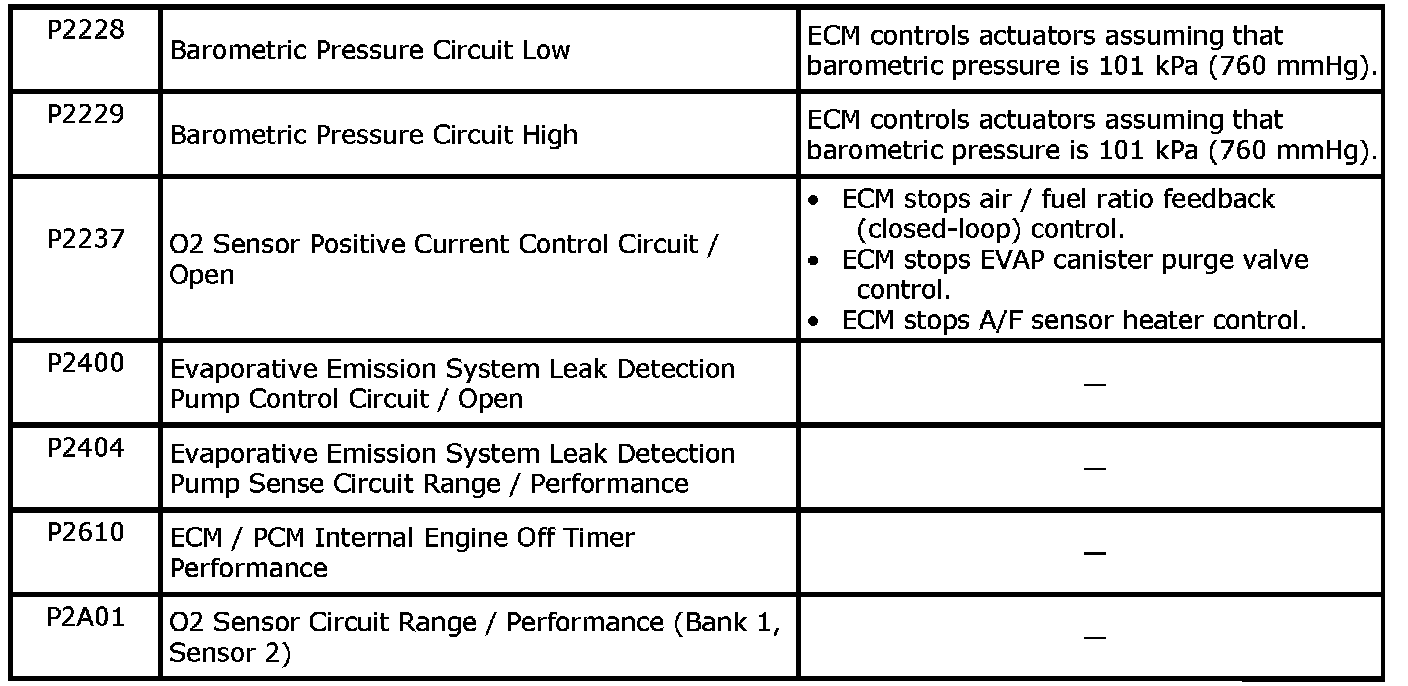

P2228-P2610 / P2A01:

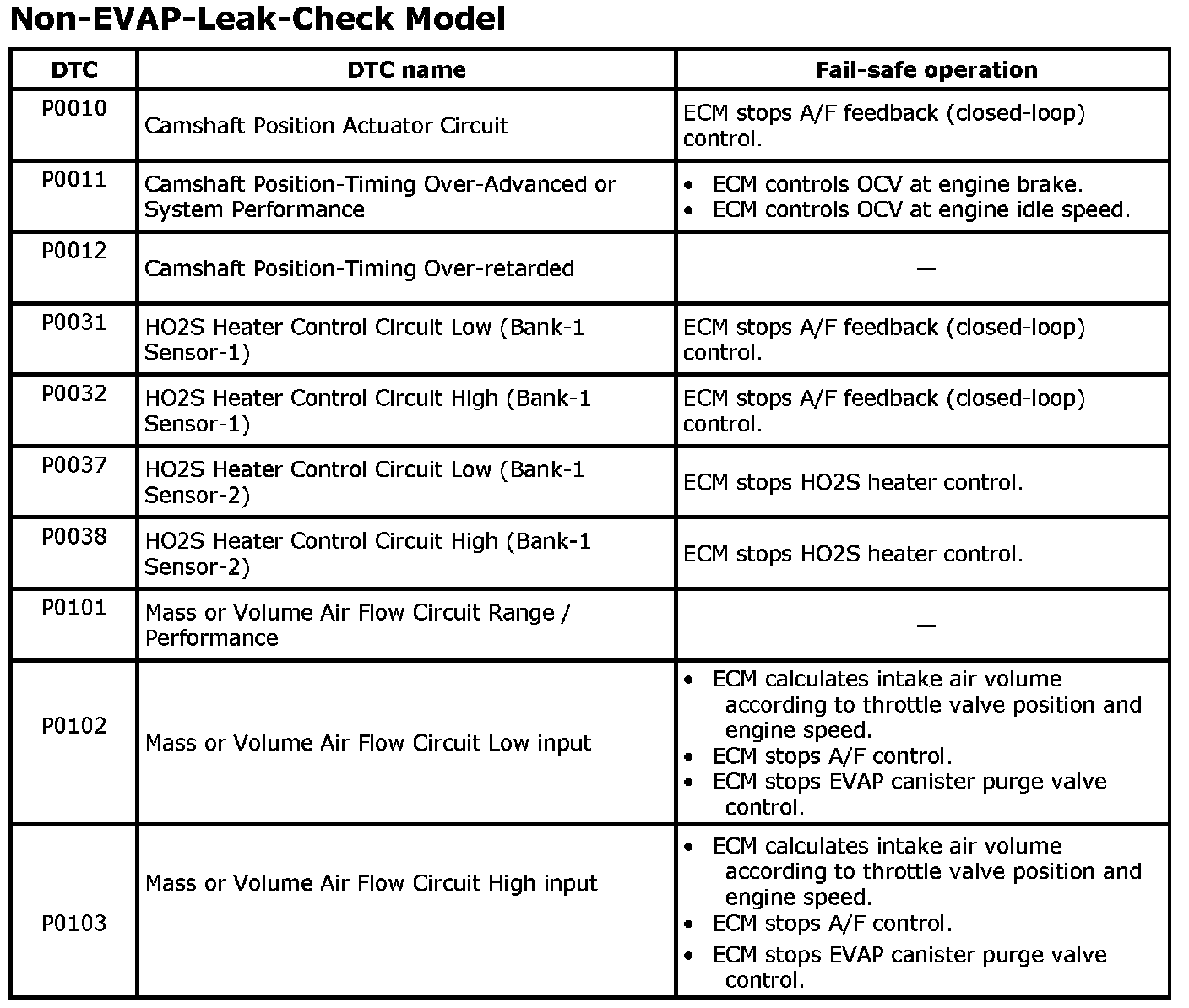

Non-EVAP-Leak-Check Model

P0010-P0103:

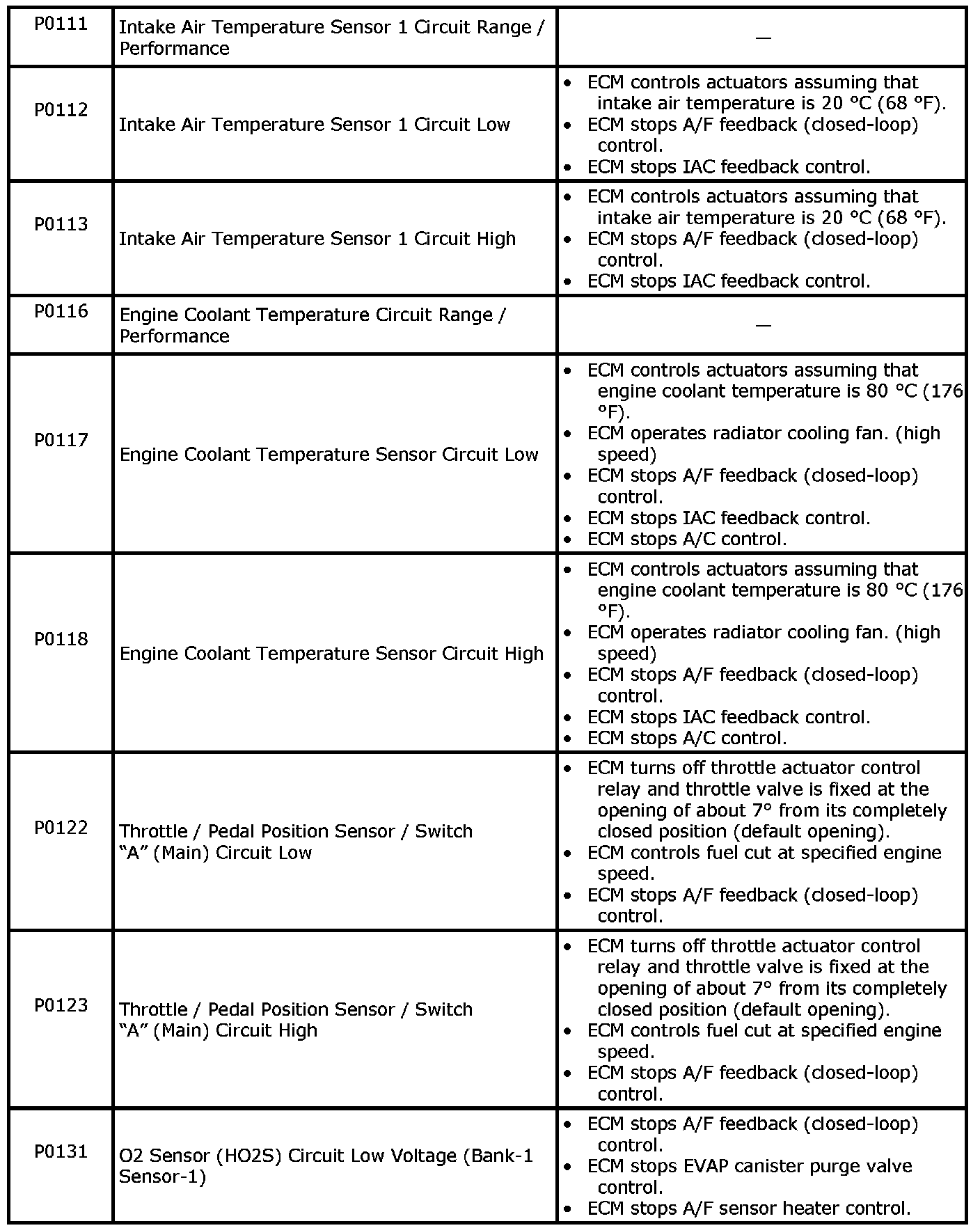

P0111-P0131:

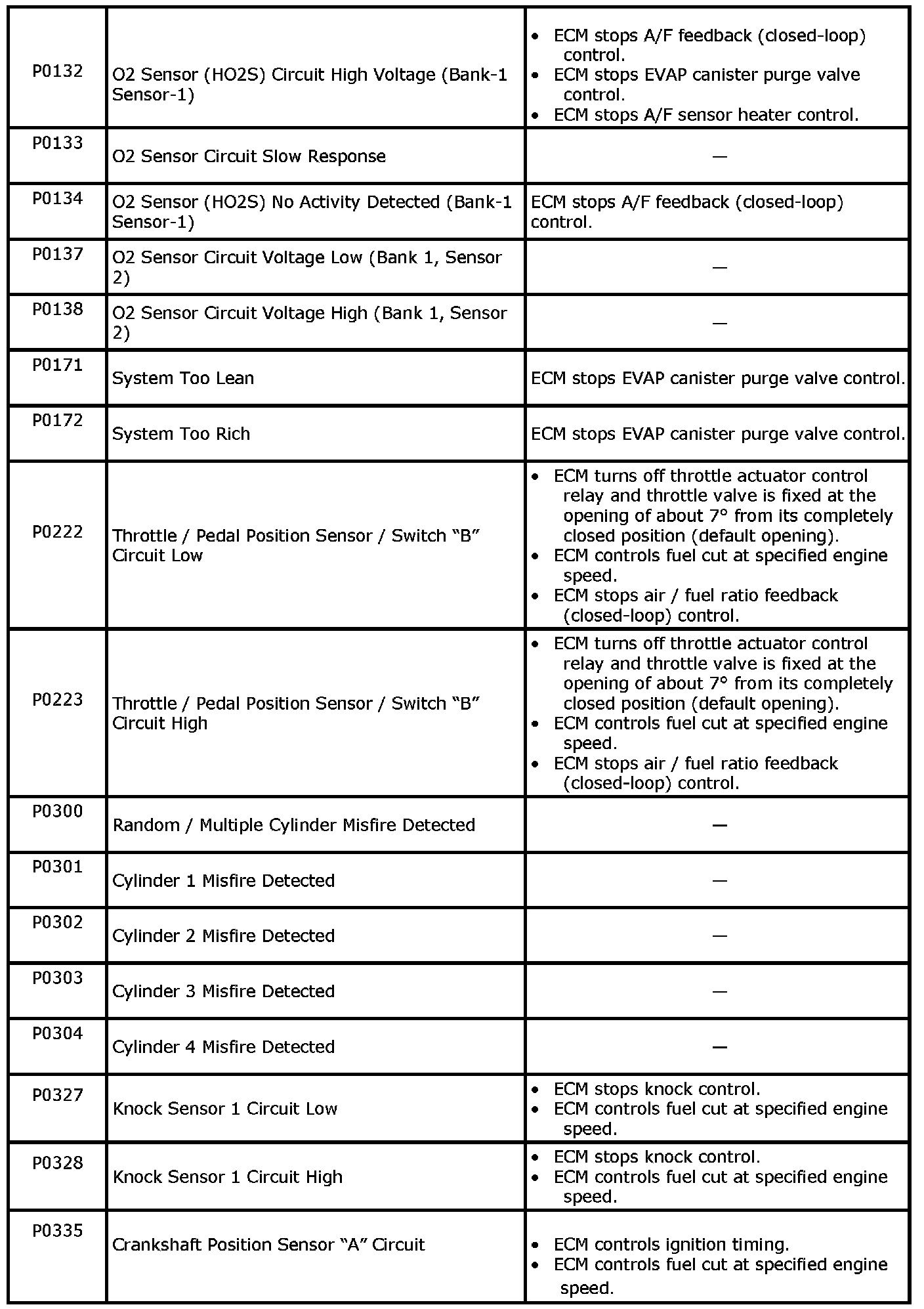

P0132-P0335:

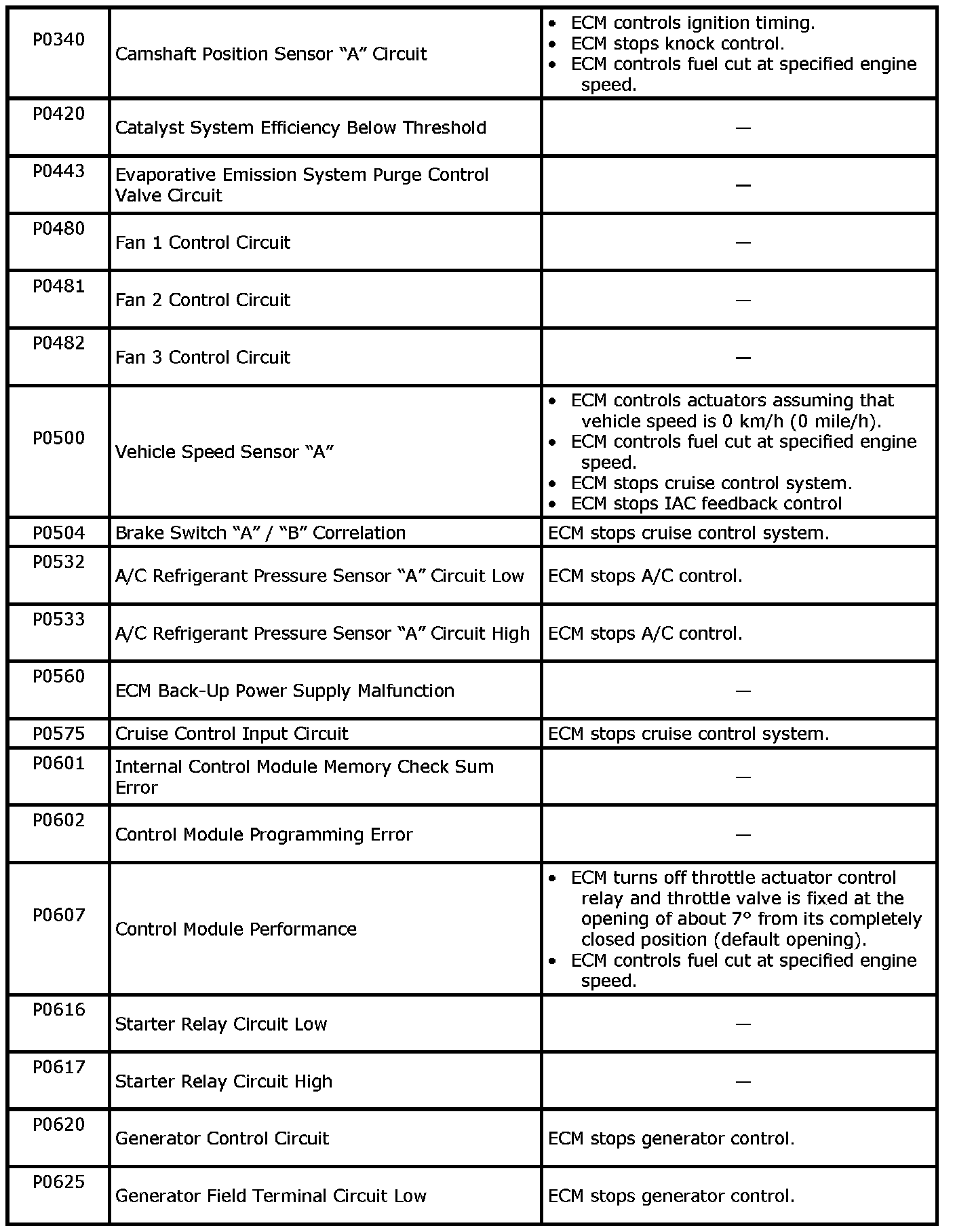

P0340-P0625:

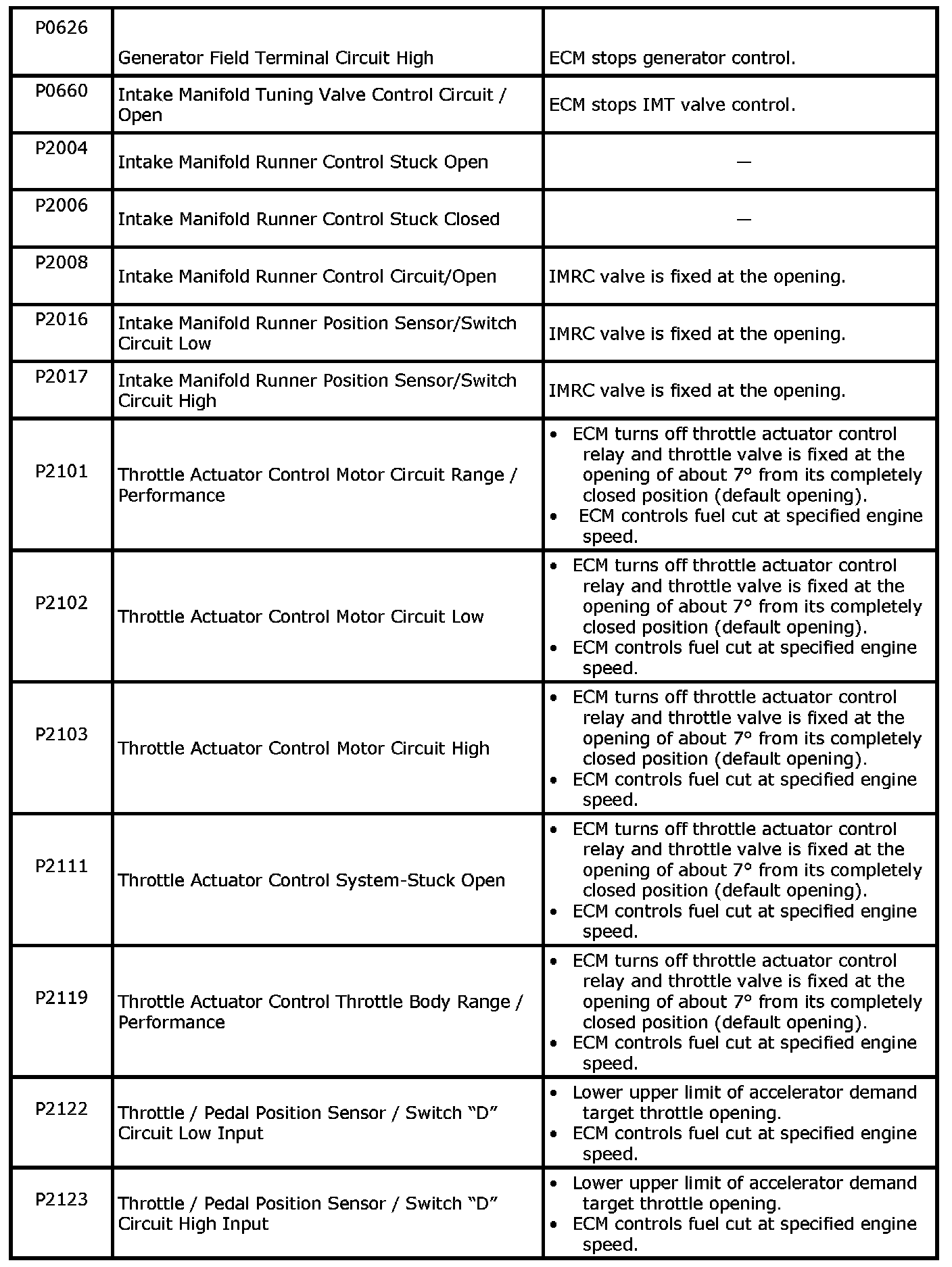

P0626-P2123:

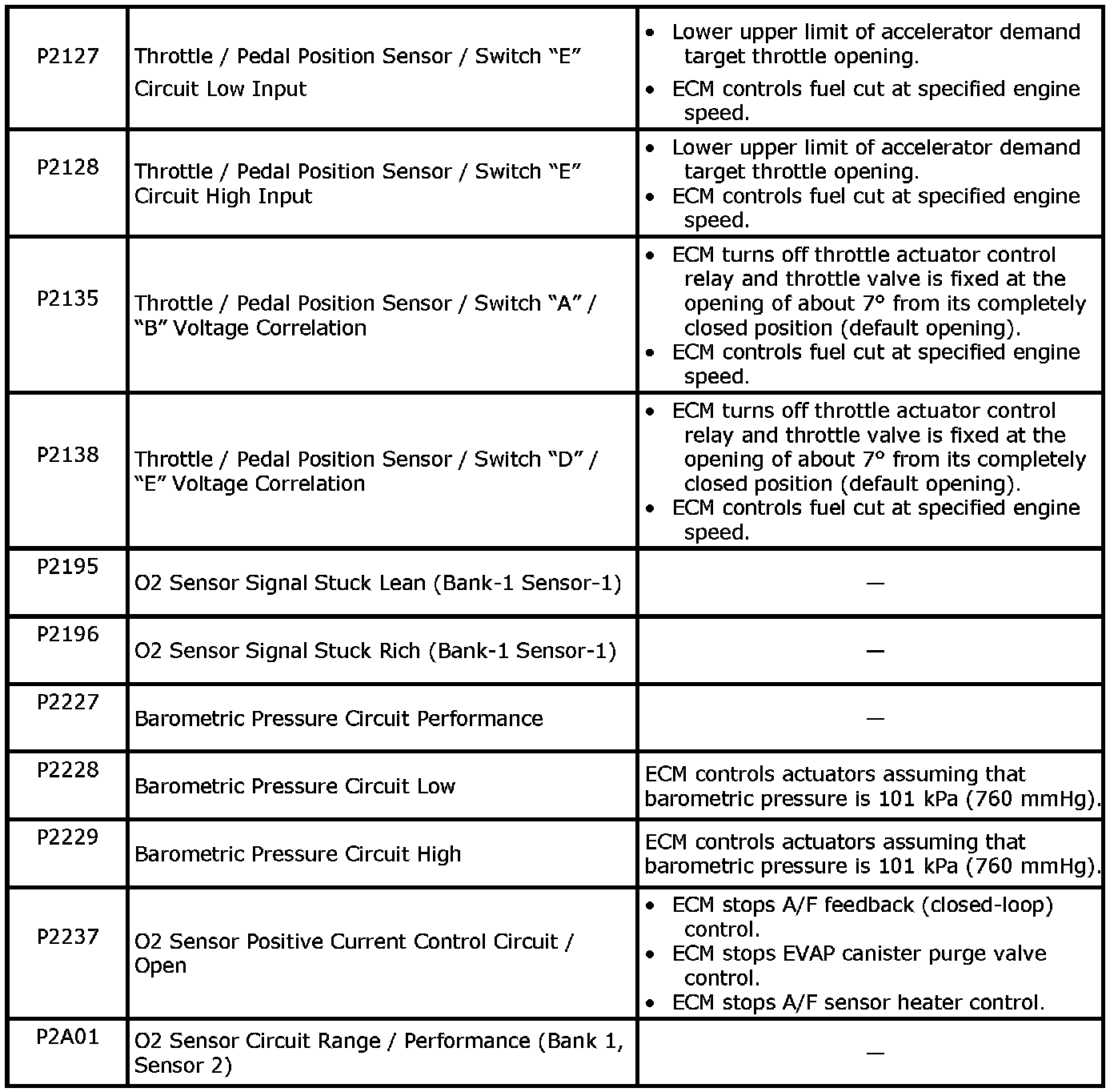

P2127-P2237 / P2A01:
