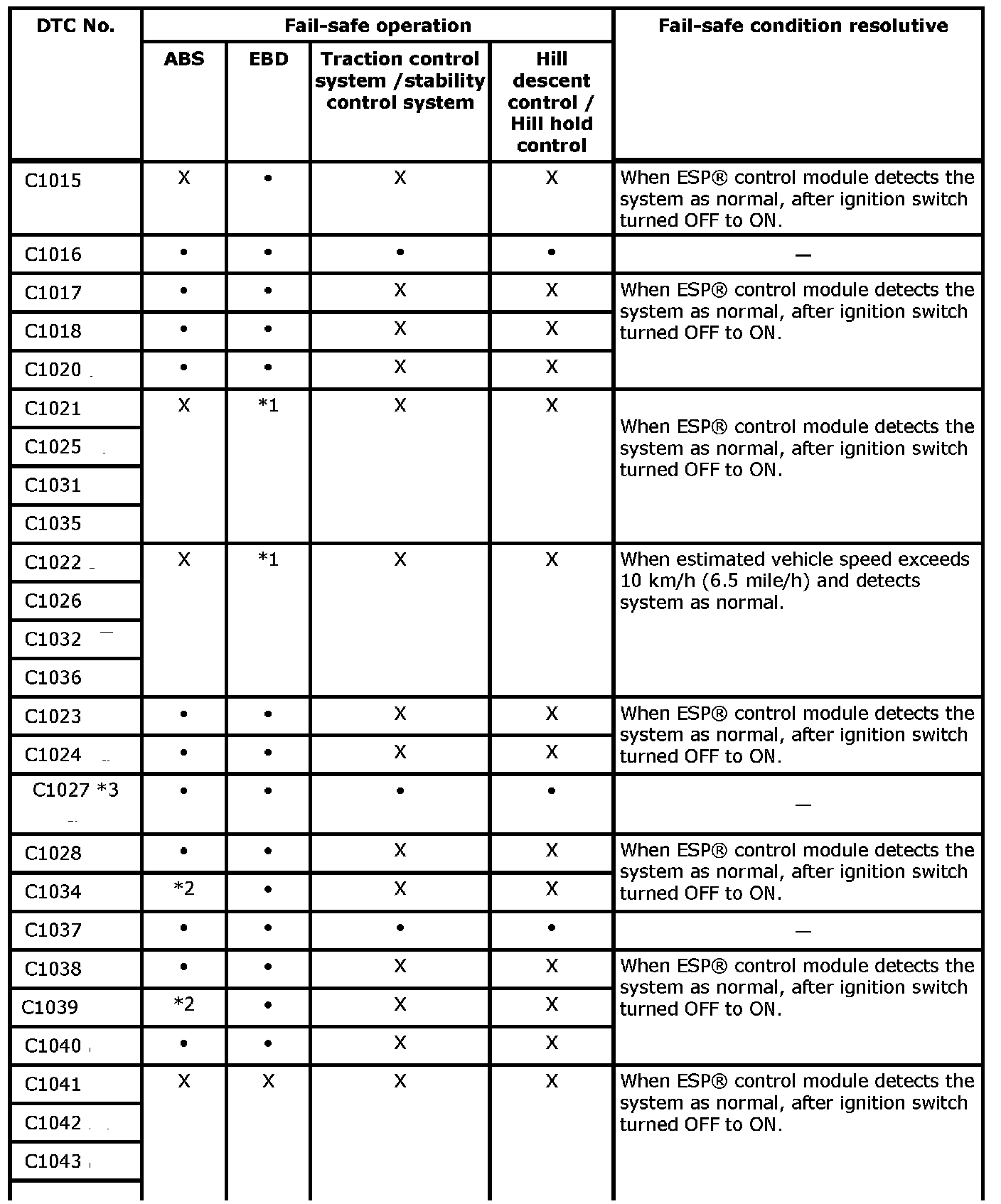

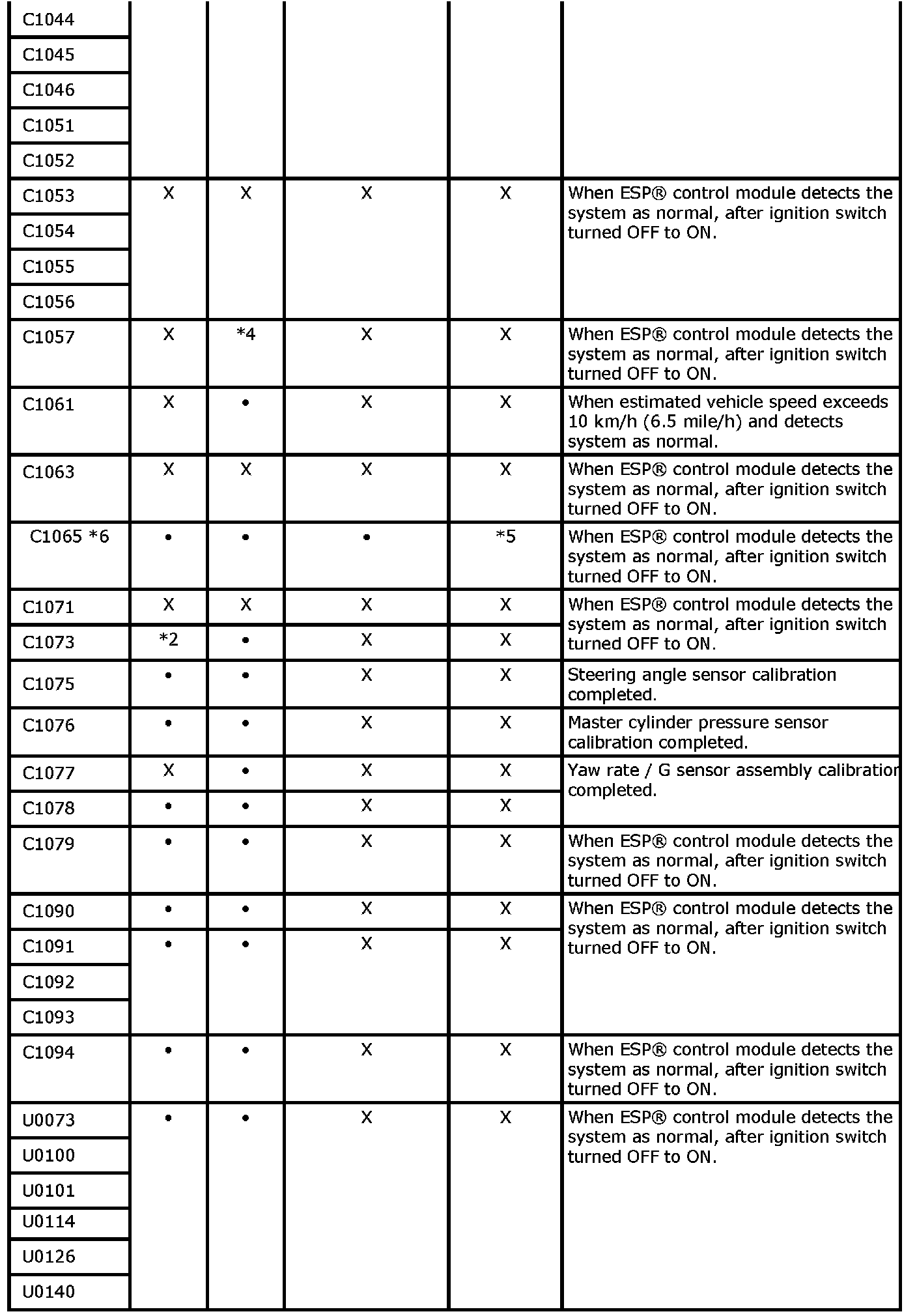

Fail-Safe Table

Fail-Safe Table
When any of the following DTC(s) is detected, ESP (R) system is in fail-safe mode per its DTC and ABS, EBD, traction control system stability control system and/or hill descent control (if equipped) hill hold control (if equipped) functions are deactivated until the resolution is applied.








NOTE:
^ 9: Activated
^ X: Deactivated
^ *1: If two or more wheel speed sensor are defective, ABS warning light, EBD warning light and ESP@ warning light are lit and all the control functions are deactivated. If one wheel speed sensor is defective, ABS warning light and ESP@ warning light are lit and ABS and Traction control system stability control system are deactivated.
^ *2: For 4WD vehicle, ABS warning light and ESP@ warning light are lit and ABS and Traction control system stability control system are deactivated. For 2WD vehicle, ESP@ warning light is lit and Traction control system stability control system is deactivated.
^ *3: ESP@ OFF mode is canceled and all control functions are activated.
^ *4: EBD control function is activated only if power supply circuit is low voltage malfunction.
^ *5: Only hill hold control function is activated.
^ *6: For hill descent control model.
