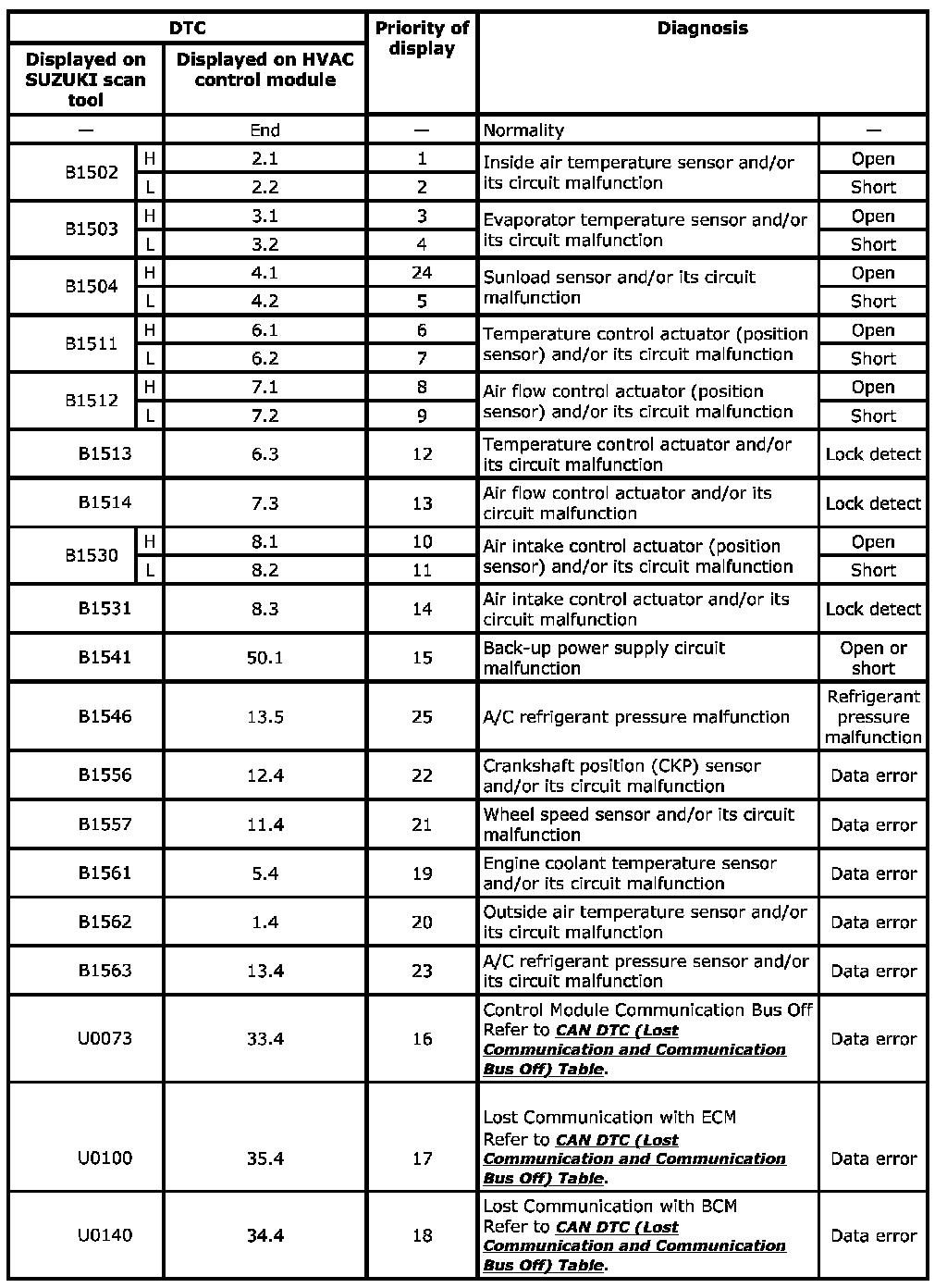

DTC Table

DTC Table

NOTE: Be sure to perform Air Conditioning System Check before starting DTC troubleshooting. Air Conditioning System Check

B1502-U0140:
