Electronic Stability Program (ESP)

DTC C1071: ABS (ESP@) Control Module Internal Defect

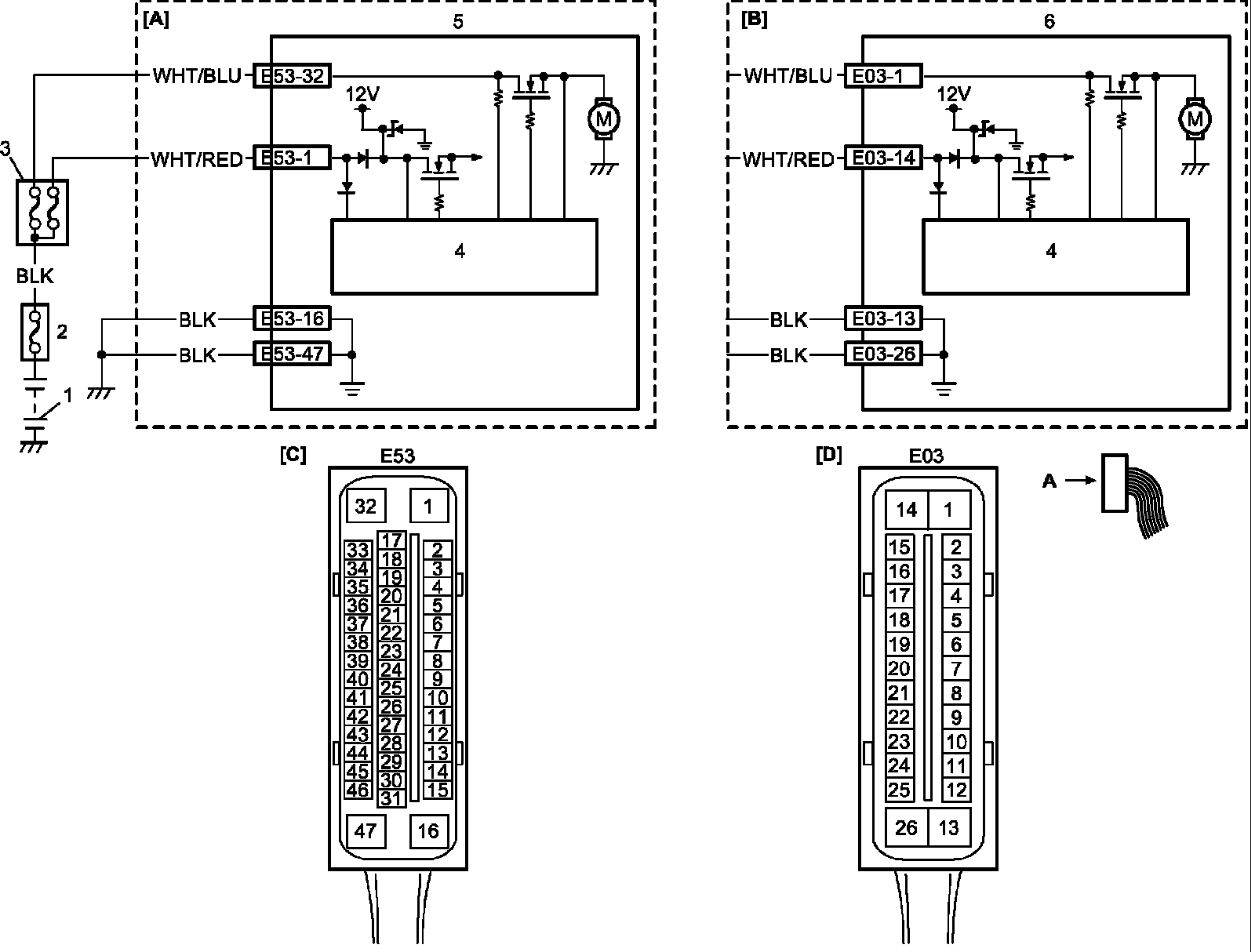

Wiring Diagram

Wiring Diagram:








DTC Detecting Condition
This DTC will be set when an internal malfunction is detected in the ABS ESP (R) control module.

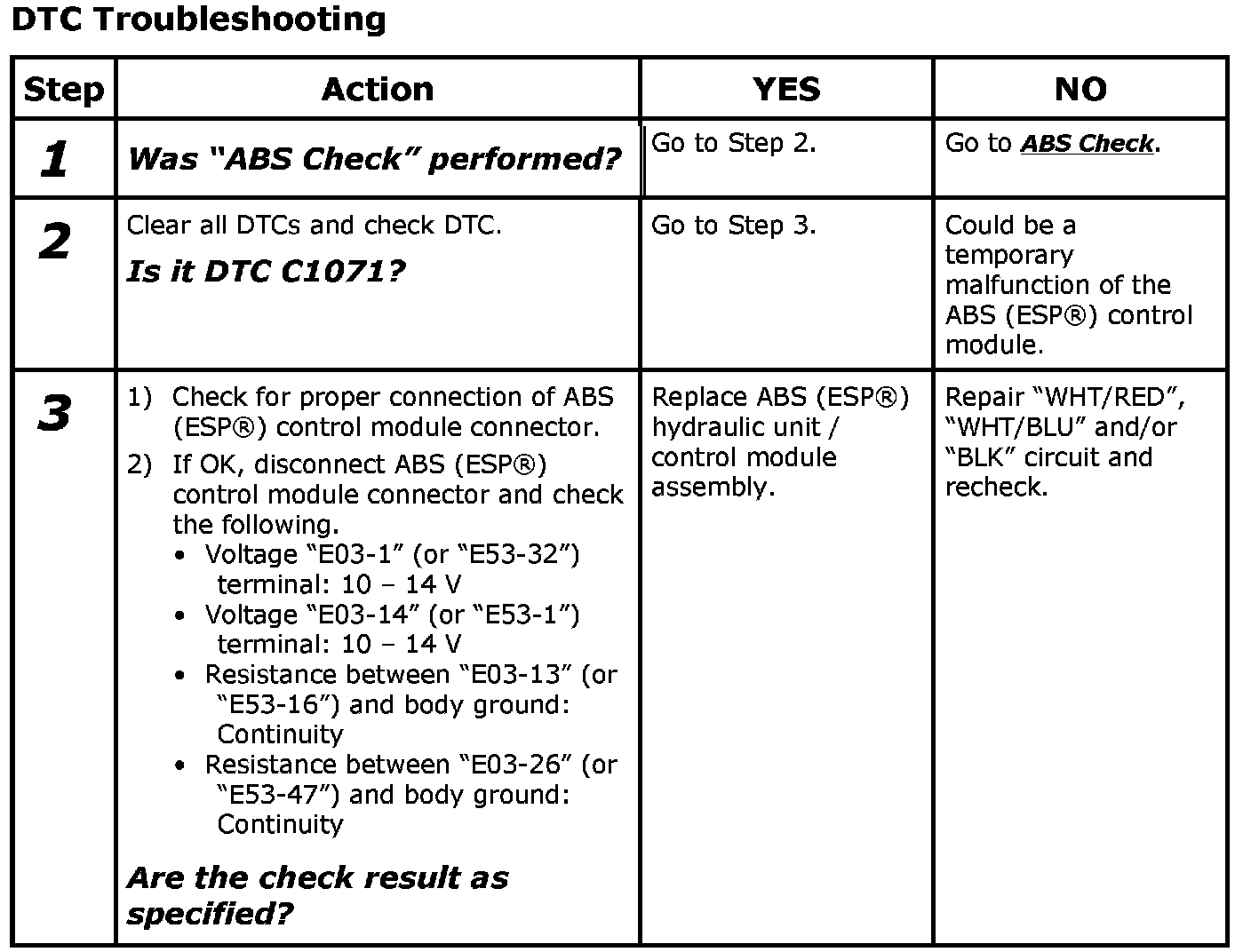

DTC Troubleshooting

Steps 1-3:
