C1027

DTC C1027: ESP@ OFF Switch Circuit Failure

Wiring Diagram

Wiring Diagram:








DTC Detecting Condition and Trouble Area

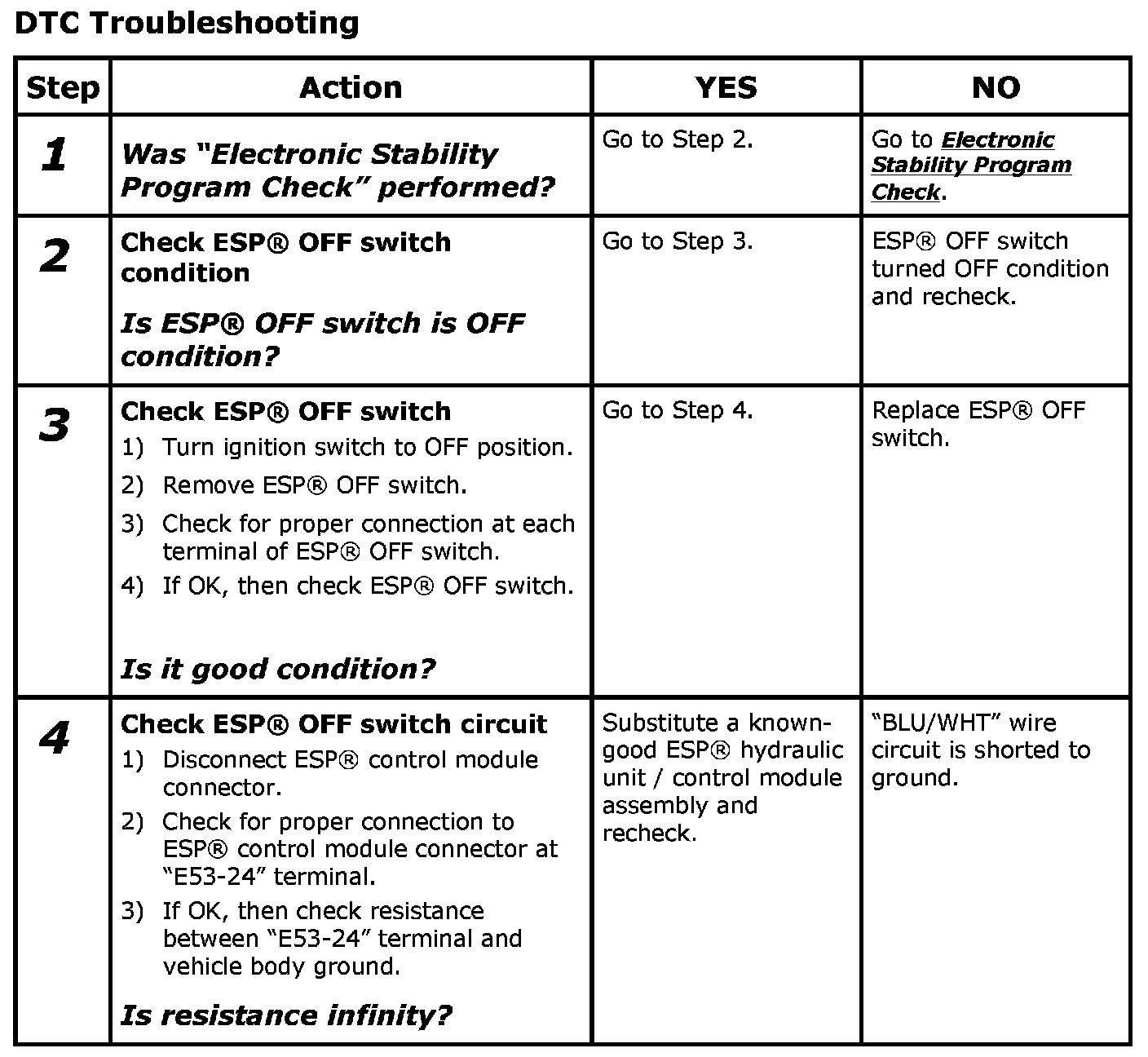

DTC Troubleshooting

Steps 1-4:
