Electronic Stability Program (ESP)

DTC C1015 / C1017 / C1023: Longitudinal G Sensor / Lateral G Sensor / Yaw Rate Sensor in Yaw Rate / G Sensor Assembly Failure

DTC Detecting Condition and Trouble Area

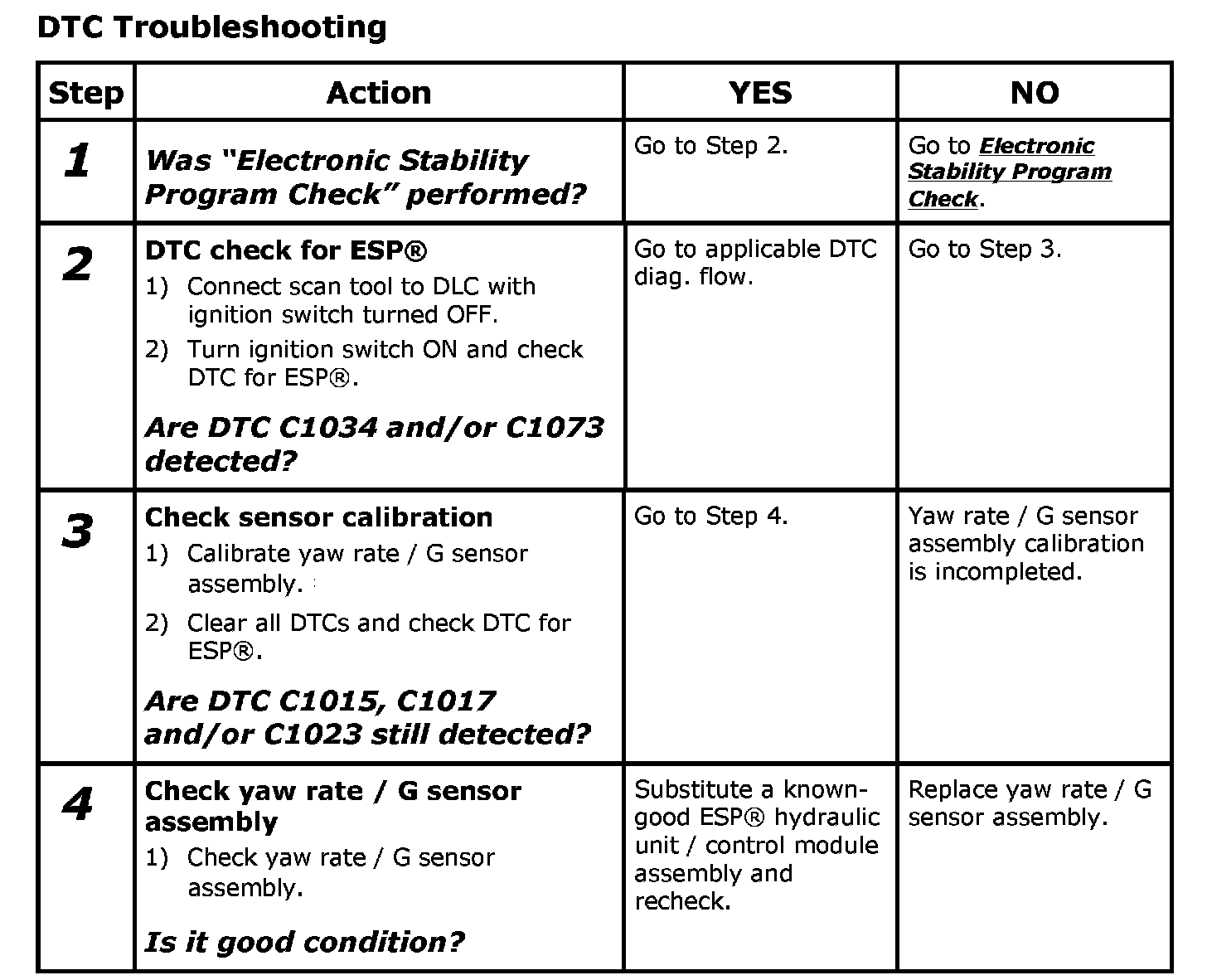

DTC Troubleshooting

Steps 1-4:
