Stop Lamp Switch

  1. Disconnect stop lamp switch harness connector.

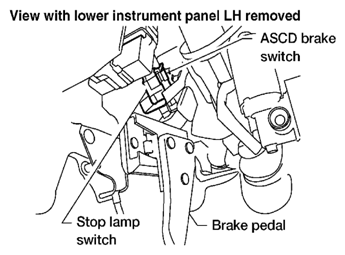

    Fig 1: Identifying Stop Lamp Switch Harness Connector
    G06441600Courtesy of SUZUKI OF AMERICA CORP.
  2. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

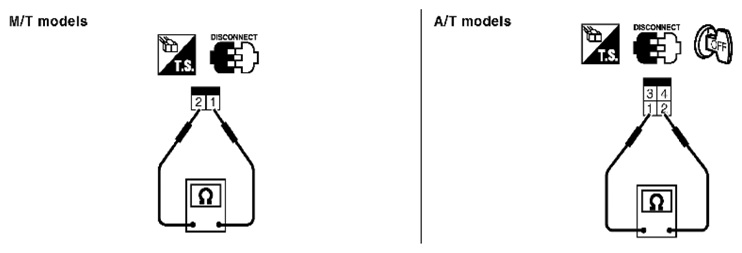

    Fig 2: Checking Continuity Between Stop Lamp Switch Terminals 1 And 2
    G06441601Courtesy of SUZUKI OF AMERICA CORP.
    CONTINUITY SPECIFICATION

    Conditions Continuity
    Brake pedal: Fully released Should not exist.
    Brake pedal: Slightly depressed Should exist.
  3. If NG, adjust stop lamp switch installation, refer to [BRAKE PEDAL INSPECTION AND ADJUSTMENT ], and perform step  2 again.
