Exhaust Manifold and Three Way Catalyst: Exploded View [VQ40DE]

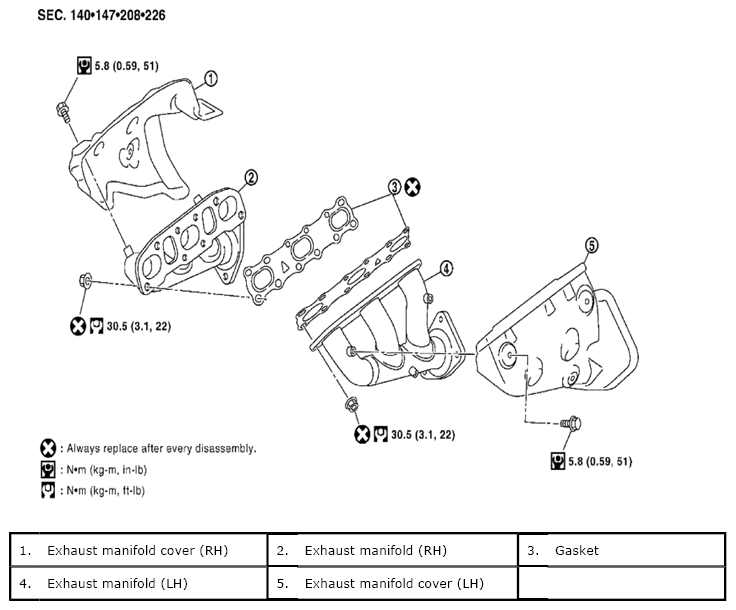

Fig 1: Exploded View Of Exhaust Manifold And Three Way Catalyst - VQ40DE
G06444656Courtesy of SUZUKI OF AMERICA CORP.
