Drive Shaft
DRIVE SHAFT SPECIFICATIONS
| Drive shaft joint type | Final drive side | Rzeppa | |
| Wheel side | Rzeppa | ||
| Grease | Specification | Genuine Grease or equivalent | |
| Capacity | Final drive side | 120 - 140 g (4.23 - 4.94 oz) | |
| Wheel side | 115 - 135 g (4.01 - 4.76 oz) | ||

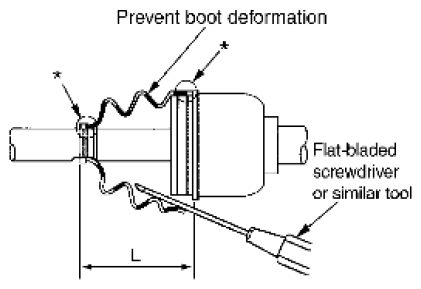

| Boot installed length "L" | Final drive side | 163.9 - 164.3 mm (6.45 - 6.47 in) | |
| Wheel side | 135.1 mm (5.32 in) | ||
