Ignition Timing

Any of following two methods may be used.

1. Attach timing light to loop wire as shown.

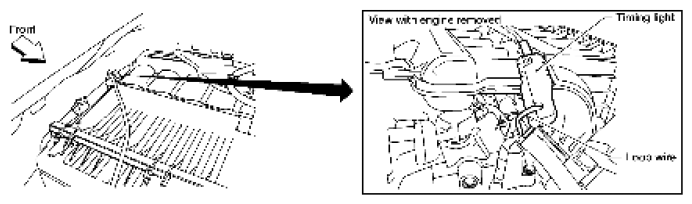

   Fig 1: Attaching Timing Light To Loop Wire

   Courtesy of SUZUKI OF AMERICA CORP.
2. Check ignition timing.

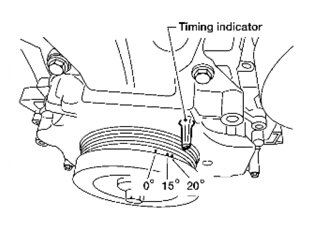

   Fig 2: Checking Ignition Timing

   Courtesy of SUZUKI OF AMERICA CORP.
