Mode 6 - SUZUKI: XL7

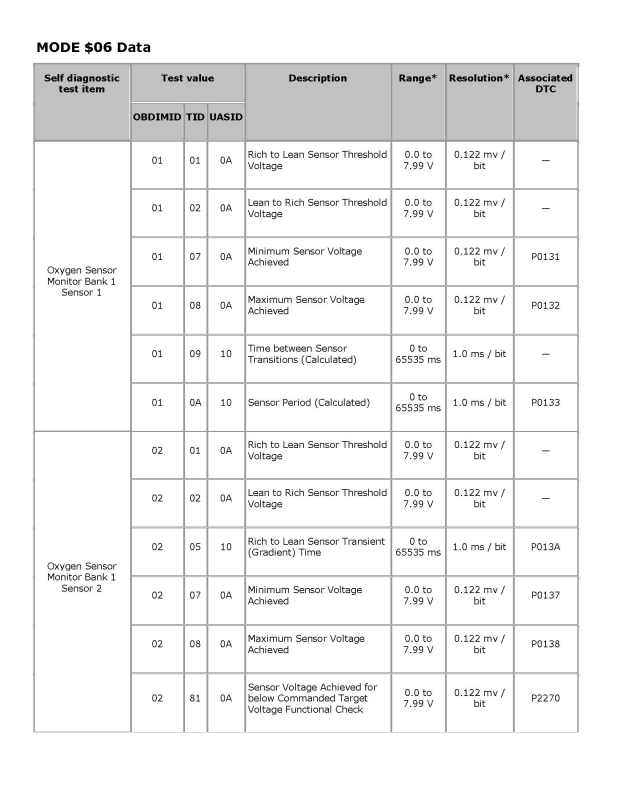

Fig 1: Mode $06 Data For XL7 (1 Of 5)

G00525787

Courtesy of SUZUKI OF AMERICA CORP.

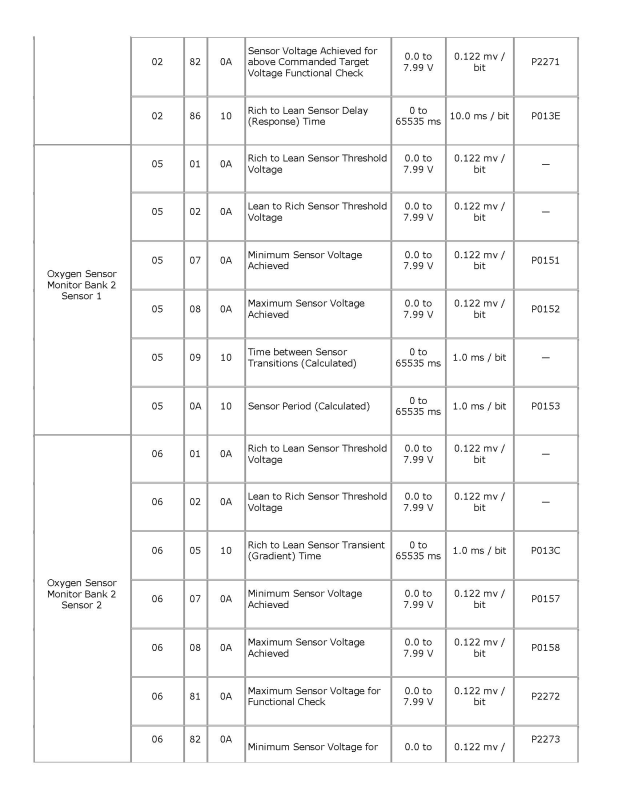

Fig 2: Mode $06 Data For XL7 (2 Of 5)

G00525788

Courtesy of SUZUKI OF AMERICA CORP.

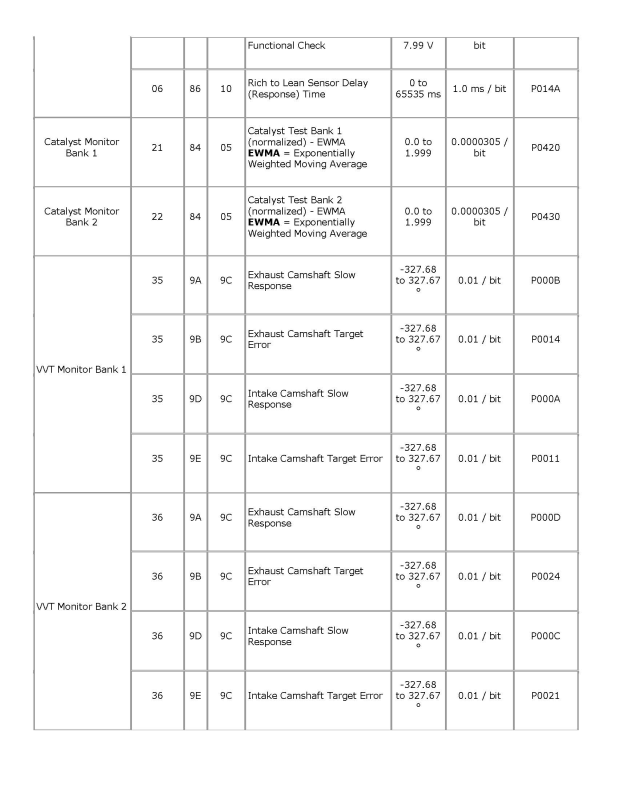

Fig 3: Mode $06 Data For XL7 (3 Of 5)

G00525789

Courtesy of SUZUKI OF AMERICA CORP.

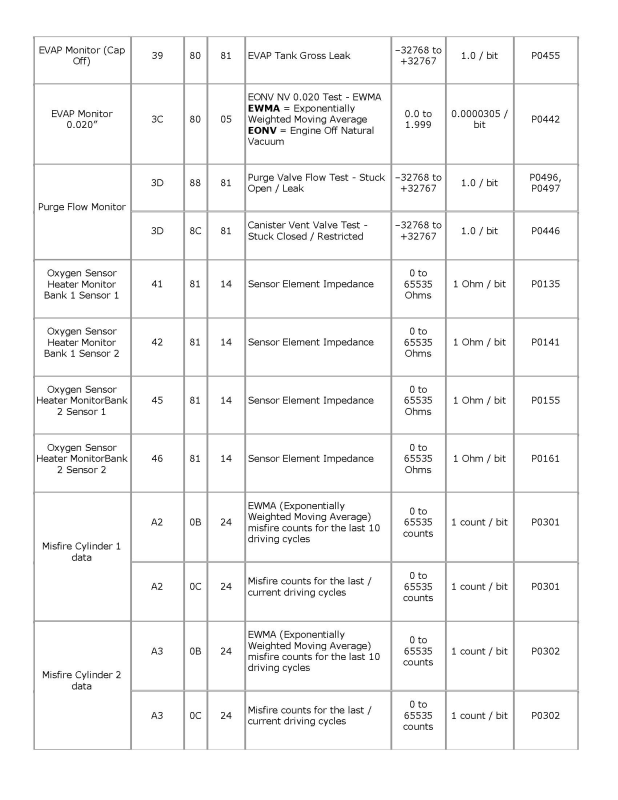

Fig 4: Mode $06 Data For XL7 (4 Of 5)

G00525790

Courtesy of SUZUKI OF AMERICA CORP.

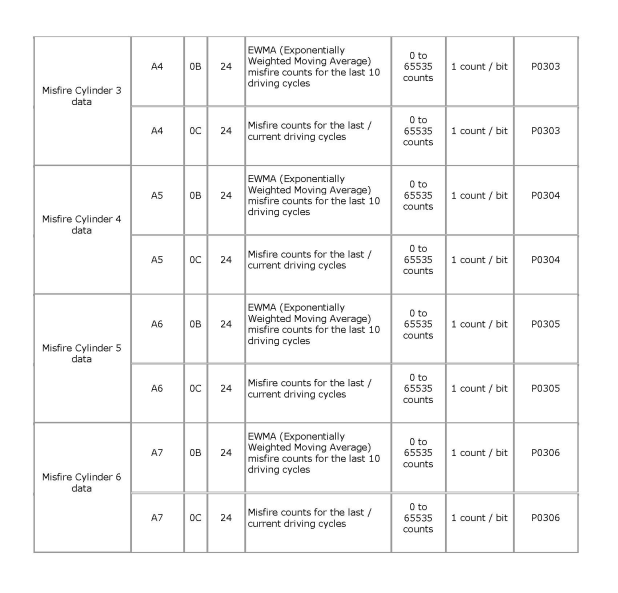

Fig 5: Mode $06 Data For XL7 (5 Of 5)

G00525791

Courtesy of SUZUKI OF AMERICA CORP.
