Judgement Self-diagnosis Code
If there is a malfunction, the lamp lights up for the time corresponding to the suspect circuit.

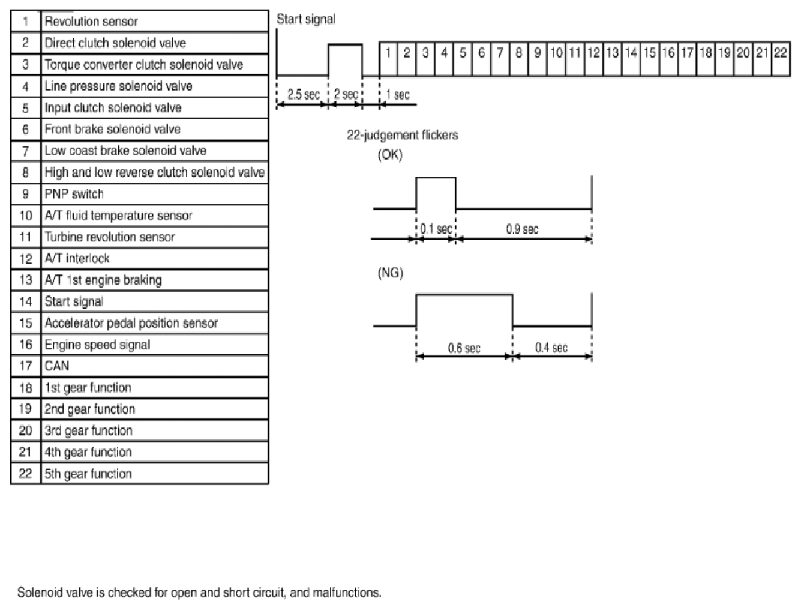

Fig 1: Blinking Pattern Of Lamp Lights
Courtesy of SUZUKI OF AMERICA CORP.
