Checking Reservoir Level

Check if the engine coolant reservoir tank level is within MIN to MAX when the engine is cool.

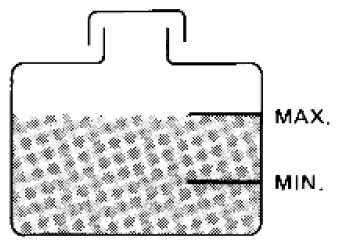

Fig 1: Identifying Engine Coolant Reservoir Tank MIN And MAX Level
Courtesy of SUZUKI OF AMERICA CORP.
Adjust engine coolant level as necessary.
