Differential Gear Oil Leakage And Level
- Make sure that differential gear oil is not leaking from the rear final drive assembly or around it.

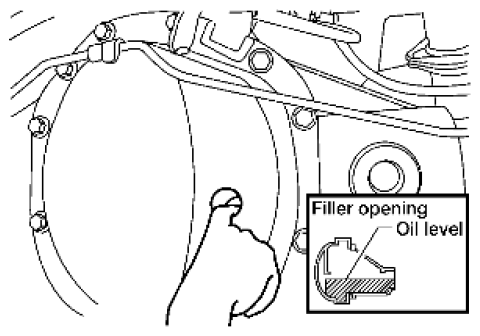

- Check the differential gear oil level from the filler plug hole as shown.
Courtesy of SUZUKI OF AMERICA CORP.
CAUTION: Do not start engine while checking differential gear oil level. - Install the filler plug with sealant applied on the threads to the rear final drive assembly. Tighten to the specified torque. Refer to
[REAR FINAL DRIVE: DISASSEMBLY AND ASSEMBLY
]
- Use High Performance Thread Sealant or equivalent. Refer to [RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ]
