Front And Rear Axle And Suspension Parts

Check front and rear axle and suspension parts for excessive play, cracks, wear or other damage.

• Shake each wheel to check for excessive play.

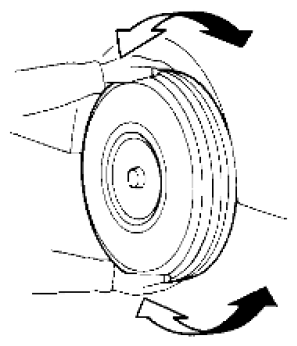

  Fig 1: Shaking Wheel To Check For Excessive Play

  Courtesy of SUZUKI OF AMERICA CORP.
• Rotate each wheel to check for abnormal noise.
• Check axle and suspension nuts and bolts for looseness.
• Check the strut and shock absorber for oil leakage or other damage.
• Check suspension ball joints for grease leakage and ball joint dust cover for cracks or other damage.
