Changing Differential Gear Oil [R180A]: Filling

  1. Remove the filler plug and gasket from the front final drive assembly.

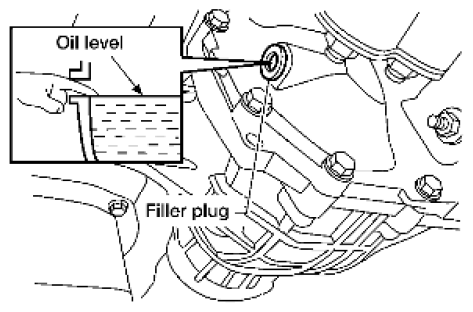

    Fig 1: Filling Front Final Drive Assembly With Differential Gear Oil Until Level Reaches Specified Level Near Filler Plug Hole
    G06440636Courtesy of SUZUKI OF AMERICA CORP.
  2. Fill the front final drive assembly with new differential gear oil until the level reaches the specified level near the filler plug hole.

    Differential gear oil grade and capacity:  Refer to [RECOMMENDED FLUIDS AND LUBRICANTS ].

  3. Install the filler plug with a new gasket on it to the front final drive assembly. Tighten to the specified torque. Refer to [FRONT FINAL DRIVE: DISASSEMBLY AND ASSEMBLY ]
    CAUTION: Do not reuse gasket.
