Changing Differential Gear Oil [C200]: Filling

  1. Remove the filler plug from the rear final drive assembly.
  2. Fill the rear final drive assembly with new differential gear oil until the level reaches the specified level near the filler plug hole.

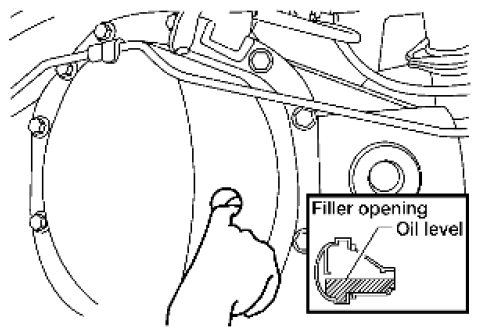

    Fig 1: Filling Rear Final Drive Assembly With Differential Gear Oil Until Level Reaches Specified Level Near Filler Plug Hole
    G06440638Courtesy of SUZUKI OF AMERICA CORP.

    Differential gear oil grade and capacity:  Refer to [RECOMMENDED FLUIDS AND LUBRICANTS ].

  3. Install the filler plug with sealant applied on the threads to the rear final drive assembly. Tighten to the specified torque. Refer to [REAR FINAL DRIVE: DISASSEMBLY AND ASSEMBLY ]
