Rear Oil Seal: Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Install the new rear oil seal until it is flush with the end face of the rear case using Tool.

Fig 1: Installing Rear Oil Seal
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: KV38100500 ( - )
CAUTION:
- Do not reuse oil seal.
- Apply petroleum jelly to oil seal.
Apply petroleum jelly to the circumference of the new dust cover. Position the new dust cover using the identification mark as shown.

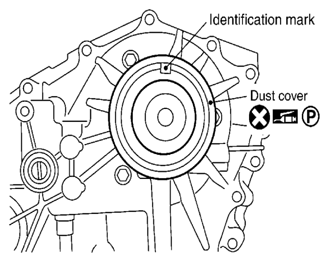

Fig 2: Identifying Dust Cover Identification Mark
Courtesy of SUZUKI OF AMERICA CORP.
CAUTION:
- Do not reuse dust cover.
- Position the identification mark at the position shown.
Install the new dust cover to the rear case using Tool.

Fig 3: Installing Dust Cover To Rear Case Using Tool
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: KV40105310 ( - )
CAUTION:
- Do not reuse dust cover.
- Apply petroleum jelly to dust cover.
Install the rear propeller shaft. Refer to [PROPELLER SHAFT: REMOVAL AND INSTALLATION ]
Refill the transfer with fluid and check for fluid leakage and fluid level. Refer to [TRANSFER FLUID: INSPECTION ].
