Vacuum Tank

  1. Disconnect vacuum hose connected to vacuum tank.

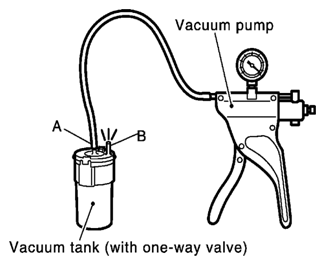

    Fig 1: Connecting Vacuum Pump To Port Of Vacuum Tank
    G06441720Courtesy of SUZUKI OF AMERICA CORP.
  2. Connect a vacuum pump to the port (A) of vacuum tank.
  3. Apply vacuum and make sure that vacuum exists at the port (B).
