| 1 |
CHECK REFRIGERANT PRESSURE SENSOR OVERALL FUNCTION
- Start engine and warm it up to normal operating temperature.
- Turn A/C switch and blower switch ON.
- Check voltage between ECM terminal 70 and ground with SDT or tester.
 Courtesy of SUZUKI OF AMERICA CORP.
Voltage: 1.0 - 4.0V
OK or NG |
INSPECTION END |
GO TO 2. |
| 2 |
CHECK GROUND CONNECTIONS
- Turn A/C switch and blower switch OFF.
- Turn ignition switch OFF.

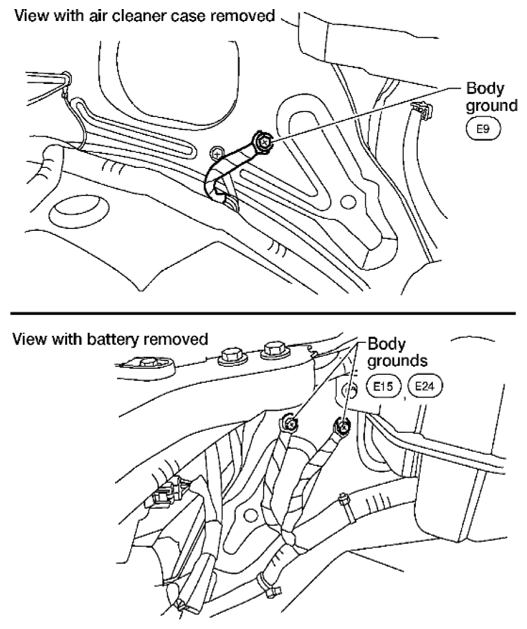

- Loosen and retighten three ground screws on the body. Refer to
[POWER SUPPLY AND GROUND CIRCUIT CHECK
].
 Courtesy of SUZUKI OF AMERICA CORP.
OK or NG |
GO TO 3. |
Repair or replace ground connections. |
| 3 |
CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT

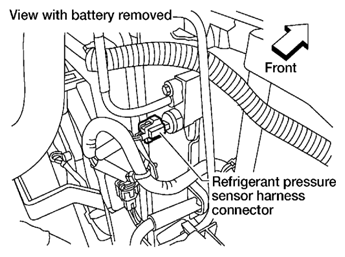

- Disconnect refrigerant pressure sensor harness connector.
  Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.
- 2. Turn ignition switch ON.
- 3. Check voltage between refrigerant pressure sensor terminal 3 and ground with SDT or tester.
Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.
Voltage: Approximately 5V
OK or NG |
GO TO 5. |
GO TO 4. |
| 4 |
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E5, F14
- Harness for open or short between ECM and refrigerant pressure sensor
|
Repair harness or connectors. |
|
| 5 |
CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
- Turn ignition switch OFF.
- Disconnect ECM harness connector.
- Check harness continuity between refrigerant pressure sensor terminal 1 and ECM terminal 67. Refer to WIRING DIAGRAM
.
Continuity should exist.
- Also check harness for short to ground and short to power.
OK or NG |
GO TO 7. |
GO TO 6. |
| 6 |
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E5, F14
- Harness for open or short between ECM and refrigerant pressure sensor
|
Repair open circuit or short to ground or short to power in harness or connectors. |
|
| 7 |
CHECK REFRIGERANT PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
- Check harness continuity between ECM terminal 70 and refrigerant pressure sensor terminal 2. Refer to WIRING DIAGRAM
.
Continuity should exist.
- Also check harness for short to ground and short to power.
OK or NG |
GO TO 9. |
GO TO 8. |
| 8 |
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E5, F14
- Harness for open or short between ECM and refrigerant pressure sensor
|
Repair open circuit or short to ground or short to power in harness or connectors. |
|
| 9 |
CHECK INTERMITTENT INCIDENT
Refer to
[SERVICE INFORMATION FOR ELECTRICAL INCIDENT: INTERMITTENT INCIDENT
]
OK or NG |
Replace refrigerant pressure sensor. |
Repair or replace. |
