Fuel Tank Temperature Sensor

  1. Remove fuel level sensor unit.
  2. Check resistance between "fuel level sensor unit and fuel pump" terminals 2 and 4 by heating with hot water or heat gun as shown in the figure.

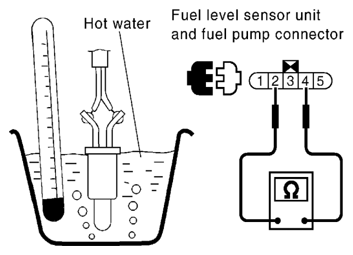

    Fig 1: Checking Resistance Between Fuel Level Sensor Unit And Fuel Pump Terminals 2 And 4
    G06441399Courtesy of SUZUKI OF AMERICA CORP.
    RESISTANCE SPECIFICATION

    Temperature °C (° F) Resistance kΩ
    20 (68) 2.3 - 2.7
    50 (122) 0.79 - 0.90
