Intake Air Temperature Sensor

Check resistance between mass air flow sensor (1) terminals 5 and 6 under the following conditions.

Fig 1: Identifying Mass Air Flow Sensor

Courtesy of SUZUKI OF AMERICA CORP.

INTAKE AIR TEMPERATURE SPECIFICATION

Intake air temperature °C (°F)	Resistance kΩ
25 (77)	1.800 - 2.200

If NG, replace mass air flow sensor (with intake air temperature sensor).

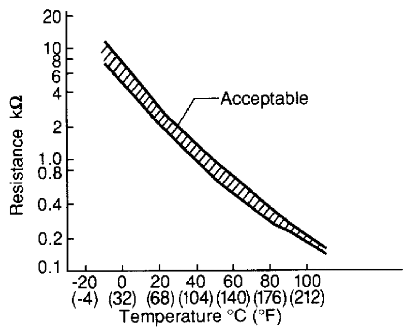

Fig 2: Mass Air Flow Sensor Temperature Graph
Courtesy of SUZUKI OF AMERICA CORP.
