| 1 |
CHECK GROUND CONNECTIONS
- Turn ignition switch OFF.

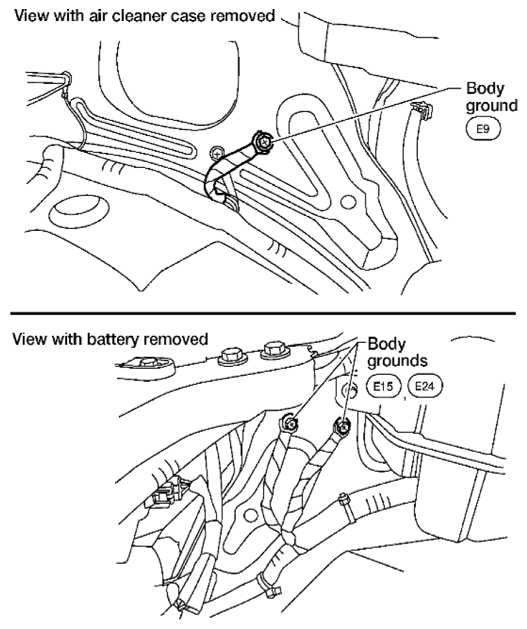

- Loosen and retighten three ground screws on the body. Refer to
[POWER SUPPLY AND GROUND CIRCUIT CHECK
].
 Courtesy of SUZUKI OF AMERICA CORP.
OK or NG |
GO TO 2. |
Repair or replace ground connections. |
| 2 |
CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT -1

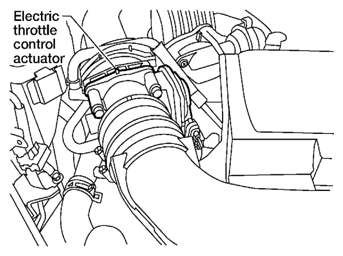

- Disconnect electric throttle control actuator harness connector.
  Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.
- 2. Turn ignition switch ON.
- 3. Check voltage between electric throttle control actuator terminal 2 and ground with SDT or tester.
Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.
Voltage: Approximately 5V
OK or NG |
GO TO 7. |
GO TO 3. |
| 3 |
CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT - II
- Turn ignition switch OFF.
- Disconnect ECM harness connector.
- Check harness continuity between electric throttle control actuator terminal 2 and ECM terminal 47. Refer to WIRING DIAGRAM
.
Continuity should exist.
OK or NG |
GO TO 4. |
Repair open circuit. |
| 4 |
CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT - III
Check harness for short to power and short to ground, between the following terminals.
OK or NG |
GO TO 5. |
Repair short to ground or short to power in harness or connectors. |
| 5 |
CHECK APP SENSOR
Refer to
[P2127, P2128 APP SENSOR ].
OK or NG |
GO TO 11. |
GO TO 6. |
| 6 |
REPLACE ACCELERATOR PEDAL ASSEMBLY
- Replace accelerator pedal assembly.
- Perform "Accelerator Pedal Released Position Learning" in
[PROCEDURE AFTER REPLACING ECM
].
- Perform "Throttle Valve Closed Position Learning" in
[PROCEDURE AFTER REPLACING ECM
].
- Perform "Idle Air Volume Learning" in
[PROCEDURE AFTER REPLACING ECM
].
|
INSPECTION END |
|
| 7 |
CHECK THROTTLE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
- Turn ignition switch OFF.
- Disconnect ECM harness connector.
- Check harness continuity between electric throttle control actuator terminal 4 and ECM terminal 66. Refer to WIRING DIAGRAM
.
Continuity should exist.
- Also check harness for short to ground and short to power.
OK or NG |
GO TO 8. |
Repair open circuit or short to ground or short to power in harness or connectors. |
| 8 |
CHECK THROTTLE POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
- Check harness continuity between ECM terminal 50 and electric throttle control actuator terminal 1, ECM terminal 69 and electric throttle control actuator terminal 3.
Refer to WIRING DIAGRAM
.
Continuity should exist.
- Also check harness for short to ground and short to power.
OK or NG |
GO TO 9. |
Repair open circuit or short to ground or short to power in harness or connectors. |
| 9 |
CHECK THROTTLE POSITION SENSOR
Refer to
[P2135 TP SENSOR ].
OK or NG |
GO TO 11. |
GO TO 10. |
| 10 |
REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
- Replace the electric throttle control actuator.
- Perform "Throttle Valve Closed Position Learning" in
[PROCEDURE AFTER REPLACING ECM
].
- Perform "Idle Air Volume Learning" in
[PROCEDURE AFTER REPLACING ECM
].
|
INSPECTION END |
|
| 11 |
CHECK INTERMITTENT INCIDENT
Refer to
[SERVICE INFORMATION FOR ELECTRICAL INCIDENT: INTERMITTENT INCIDENT
] |
INSPECTION END |
|
