Diagnosis Procedure

DIAGNOSIS PROCEDURE

Step	Action	YES	NO

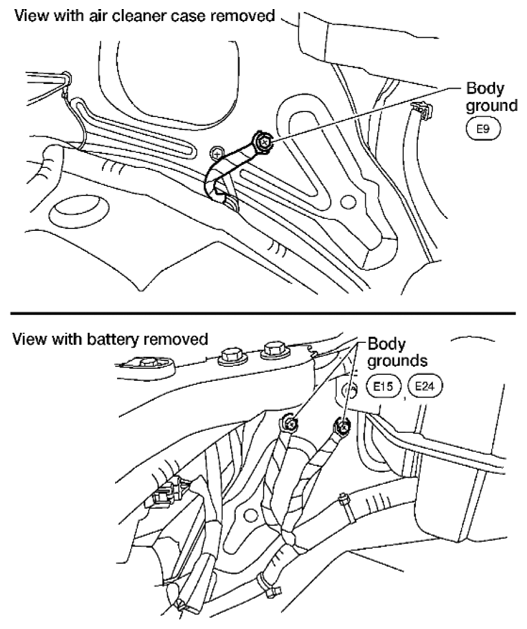

1	CHECK GROUND CONNECTIONS Turn ignition switch OFF. Loosen and retighten three ground three screws on the body. Refer to [POWER SUPPLY AND GROUND CIRCUIT CHECK ]. Courtesy of SUZUKI OF AMERICA CORP. OK or NG	GO TO 2.	Repair or replace ground connections.

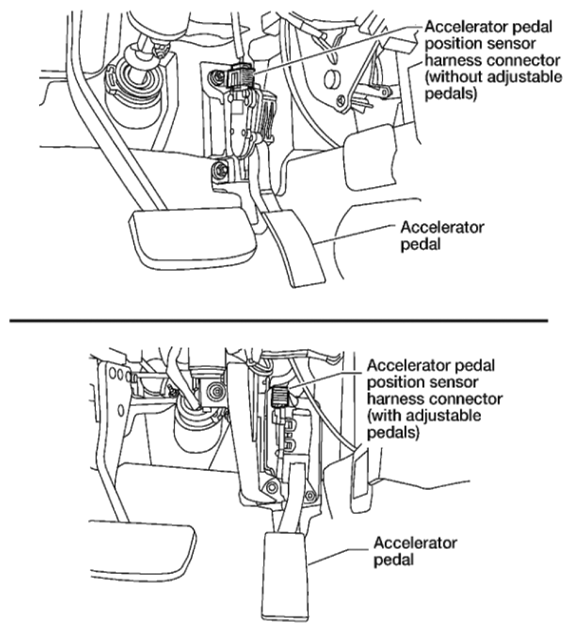

2	CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT Disconnect accelerator pedal position (APP) sensor harness connector. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. 2. Turn ignition switch ON. 3. Check voltage between APP sensor terminal 2 and ground with SDT or tester. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. Voltage: Approximately 5V OK or NG	GO TO 5.	GO TO 3.
3	CHECK SENSOR POWER SUPPLY CIRCUITS Check harness for short to power and short to ground, between the following terminals. OK or NG	GO TO 4.	Repair short to ground or short to power in harness or connectors.
4	CHECK COMPONENTS Check the following. EVAP control system pressure sensor (Refer to [P0451 EVAP CONTROL SYSTEM PRESSURE SENSOR ].) Refrigerant pressure sensor (Refer to [REFRIGERANT PRESSURE SENSOR CIRCUIT CHECK ].) Battery current sensor (Refer to [P1550 BATTERY CURRENT SENSOR ].) Power steering pressure sensor (Refer to [P0550 PSP SENSOR ].) OK or NG	GO TO 5.	Replace malfunctioning component.
5	CHECK APP SENSOR Refer to [P2122, P2123 APP SENSOR ]. OK or NG	GO TO 7.	GO TO 6.
6	REPLACE ACCELERATOR PEDAL ASSEMBLY Replace accelerator pedal assembly. Perform "Accelerator Pedal Released Position Learning" in [PROCEDURE AFTER REPLACING ECM ]. Perform "Throttle Valve Closed Position Learning" in [PROCEDURE AFTER REPLACING ECM ]. Perform "Idle Air Volume Learning" in [PROCEDURE AFTER REPLACING ECM ].	INSPECTION END
7	CHECK INTERMITTENT INCIDENT Refer to [SERVICE INFORMATION FOR ELECTRICAL INCIDENT: INTERMITTENT INCIDENT ]	INSPECTION END
