Diagnosis Procedure

DIAGNOSIS PROCEDURE

Step	Action	YES	NO

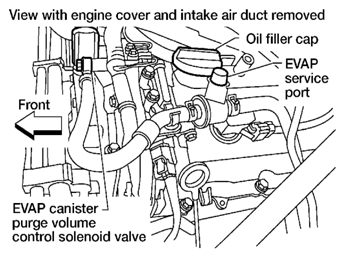

1	CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT Turn ignition switch OFF. Disconnect EVAP canister purge volume control solenoid valve harness connector. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. 3. Turn ignition switch ON. 4. Check voltage between EVAP canister purge volume control solenoid valve terminal 2 and ground with SDT or tester. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. Voltage: Battery voltage OK or NG	GO TO 3.	GO TO 2.
2	DETECT MALFUNCTIONING PART Check the following. Harness connectors E2, F32 Harness for open or short between EVAP canister purge volume control solenoid valve and IPDM E/R Harness for open or short between EVAP canister purge volume control solenoid valve and ECM	Repair harness or connectors.
3	CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT Turn ignition switch OFF. Disconnect ECM harness connector. Check harness continuity between ECM terminal 45 and EVAP canister purge volume control solenoid valve terminal 1. Refer to WIRING DIAGRAM . Continuity should exist. Also check harness for short to ground and short to power. OK or NG	GO TO 4.	Repair open circuit or short to ground or short to power in harness or connectors.
4	CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR Disconnect EVAP control system pressure sensor harness connector. Check connectors for water. Water should not exist. OK or NG	GO TO 5.	Replace EVAP control system pressure sensor.
5	CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR Refer to [P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR ]. OK or NG	GO TO 6.	GO TO 7.
6	CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE With SDT Turn ignition switch OFF. Reconnect harness connectors disconnected. Start engine. Perform "PURG VOL CONT/V" in "Active test" mode with SDT. Check that engine speed varies according to the valve opening. OK or NG	GO TO 8.	GO TO 7.
7	CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE Refer to [P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE ]. OK or NG	GO TO 8.	Replace EVAP canister purge volume control solenoid valve.
8	CHECK RUBBER TUBE FOR CLOGGING Disconnect rubber tube connected to EVAP canister vent control valve. Check the rubber tube for clogging. OK or NG	GO TO 9.	Clean the rubber tube using an air blower.
9	CHECK DRAIN FILTER Refer to [P0442 EVAP CONTROL SYSTEM ]. OK or NG	GO TO 10.	Replace drain filter.
10	CHECK EVAP CANISTER VENT CONTROL VALVE Refer to [P0447 EVAP CANISTER VENT CONTROL VALVE ]. OK or NG	GO TO 11.	Replace EVAP canister vent control valve.
11	CHECK IF EVAP CANISTER IS SATURATED WITH WATER Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached. Check if water will drain from the EVAP canister. Courtesy of SUZUKI OF AMERICA CORP. Yes or No	GO TO 12.	GO TO 14.
12	CHECK EVAP CANISTER Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor attached. The weight should be less than 2.0 kg (4.4 lb). OK or NG	GO TO 14.	GO TO 13.
13	DETECT MALFUNCTIONING PART Check the following. EVAP canister for damage EVAP hose between EVAP canister and drain filter for clogging or poor connection	Repair hose or replace EVAP canister.
14	CHECK INTERMITTENT INCIDENT Refer to [SERVICE INFORMATION FOR ELECTRICAL INCIDENT: INTERMITTENT INCIDENT ]	INSPECTION END
