Diagnosis Procedure

DIAGNOSIS PROCEDURE

Step	Action	YES	NO
1	CHECK STARTING SYSTEM Turn ignition switch to START position. Does the engine turn over? Does the starter motor operate? Yes or No	GO TO 2.	Check starting system. (Refer to [DIAGNOSIS AND REPAIR WORKFLOW ].)

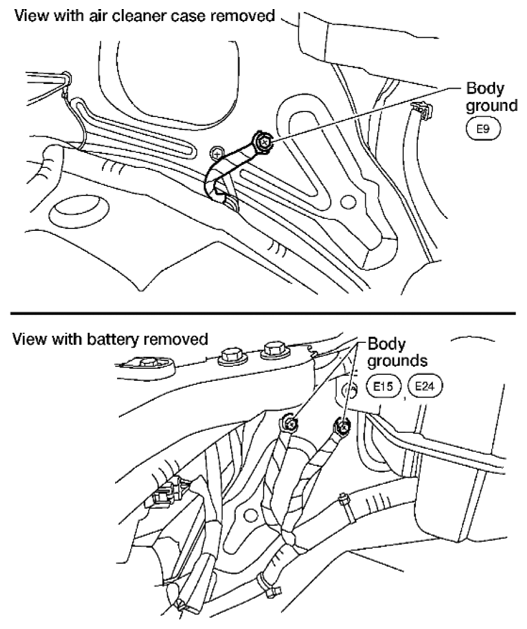

2	CHECK GROUND CONNECTIONS Turn ignition switch OFF. Loosen and retighten three ground screws on the body. Refer to [POWER SUPPLY AND GROUND CIRCUIT CHECK ]. Courtesy of SUZUKI OF AMERICA CORP. OK or NG	GO TO 3.	Repair or replace ground connections.

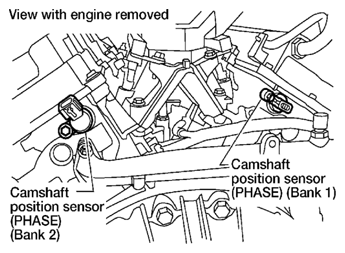

3	CHECK CAMSHAFT POSITION (CMP) SENSOR (PHASE) POWER SUPPLY CIRCUIT Disconnect camshaft position (CMP) sensor (PHASE) harness connector. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. 2. Turn ignition switch ON. 3. Check voltage between CMP sensor (PHASE) terminal 3 and ground with SDT or tester. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. Voltage: Battery voltage OK or NG	GO TO 5.	GO TO 4.
4	DETECT MALFUNCTIONING PART Check the following. Harness connectors E2, F32 Harness for open or short between camshaft position sensor (PHASE) and ECM Harness for open or short between camshaft position sensor (PHASE) and IPDM E/R	Repair open circuit or short to ground or short to power in harness or connectors.
5	CHECK CMP SENSOR (PHASE) GROUND CIRCUIT FOR OPEN AND SHORT Turn ignition switch OFF. Check harness continuity between CMP sensor (PHASE) terminal 1 and ground. Continuity should exist. Also check harness for short to power. OK or NG	GO TO 7.	GO TO 6.
6	DETECT MALFUNCTIONING PART Check the following. Harness connectors F32, E2 Harness for open or short between CMP sensor (PHASE) and ground	Repair open circuit or short to power in harness or connectors.
7	CHECK CMP SENSOR (PHASE) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT Disconnect ECM harness connector. Check harness continuity between ECM terminal 33 (bank 1) or 14 (bank 2) and CMP sensor (PHASE) terminal 2. Refer to WIRING DIAGRAM . Continuity should exist. Also check harness for short to ground and short to power. OK or NG	GO TO 8.	Repair open circuit or short to ground or short to power in harness or connectors.
8	CHECK CAMSHAFT POSITION SENSOR (PHASE) Refer to [P0340, P0345 CMP SENSOR (PHASE) ]. OK or NG	GO TO 9.	Replace malfunctioning camshaft position sensor (PHASE).
9	CHECK CAMSHAFT (INTAKE) Check the following. Accumulation of debris to the signal plate of camshaft rear end Courtesy of SUZUKI OF AMERICA CORP. Chipping signal plate of camshaft rear end OK or NG	GO TO 10.	Remove debris and clean the signal plate of camshaft rear end or replace malfunctioning camshaft.
10	CHECK INTERMITTENT INCIDENT Refer to [SERVICE INFORMATION FOR ELECTRICAL INCIDENT: INTERMITTENT INCIDENT ]	INSPECTION END
