Equator Base, 4D Pickup
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System (VQ40DE) - (1 Of 5)
>>
Schematic and Routing Diagram
>>
Engine Control System: System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Control System: System Diagram

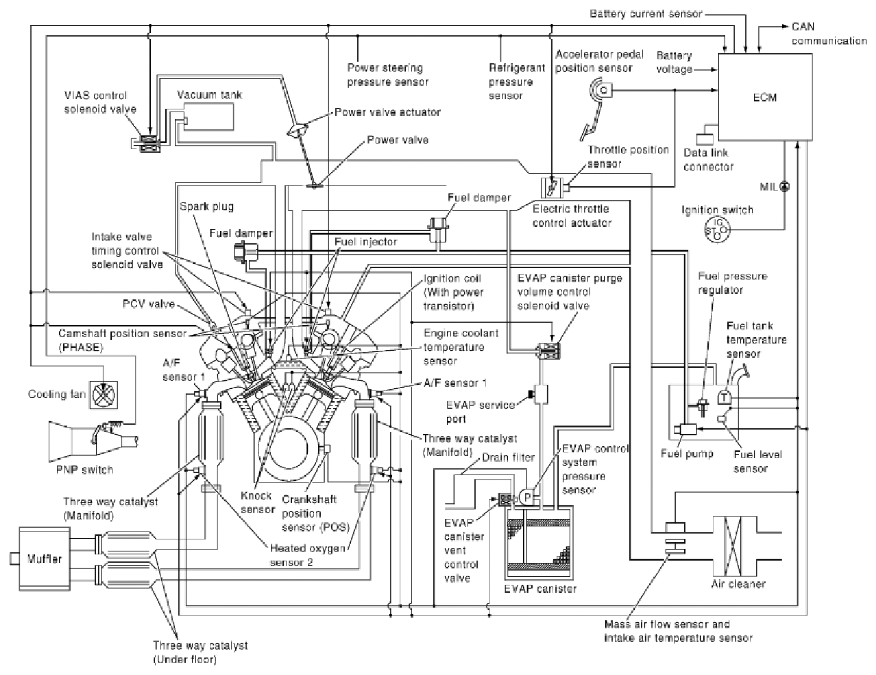

Fig 1: Engine Control System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
