Grand VITARA: V6

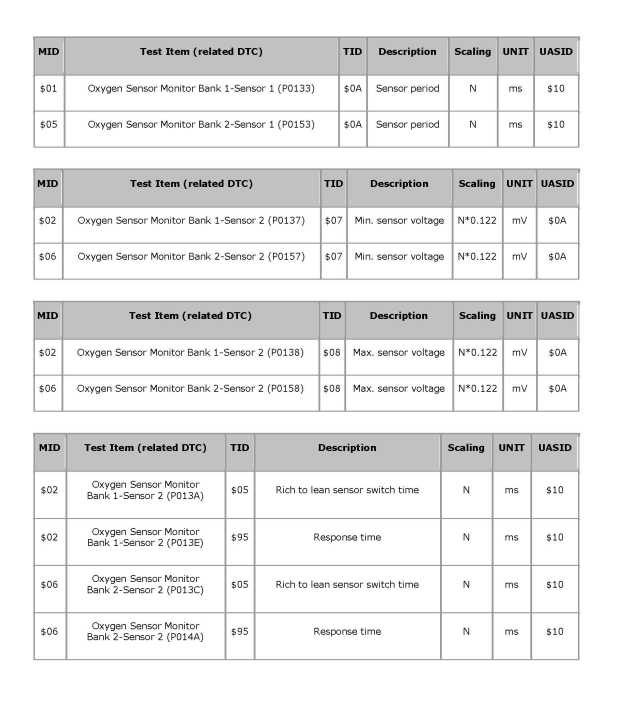

Fig 1: Mode $06 Data For Grand Vitara V6 (1 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

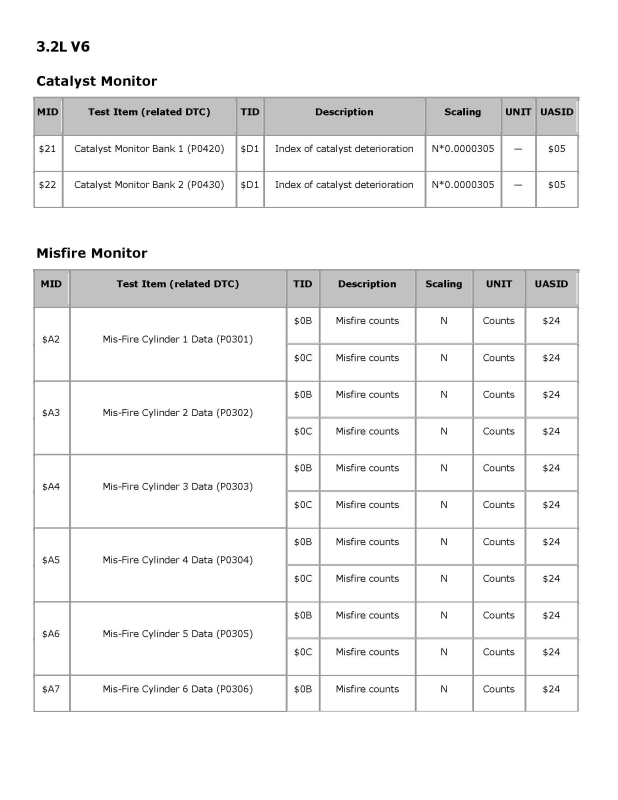

Fig 2: Mode $06 Data For Grand Vitara V6 (2 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

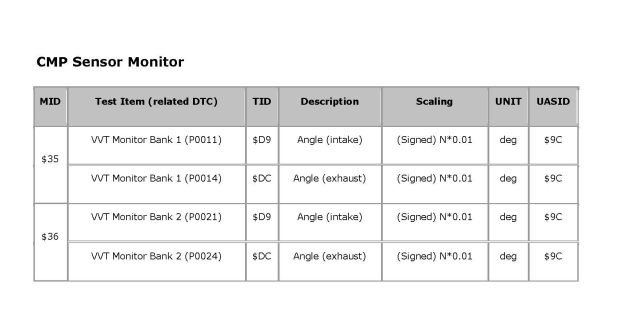

Fig 3: Mode $06 Data For Grand Vitara V6 (3 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

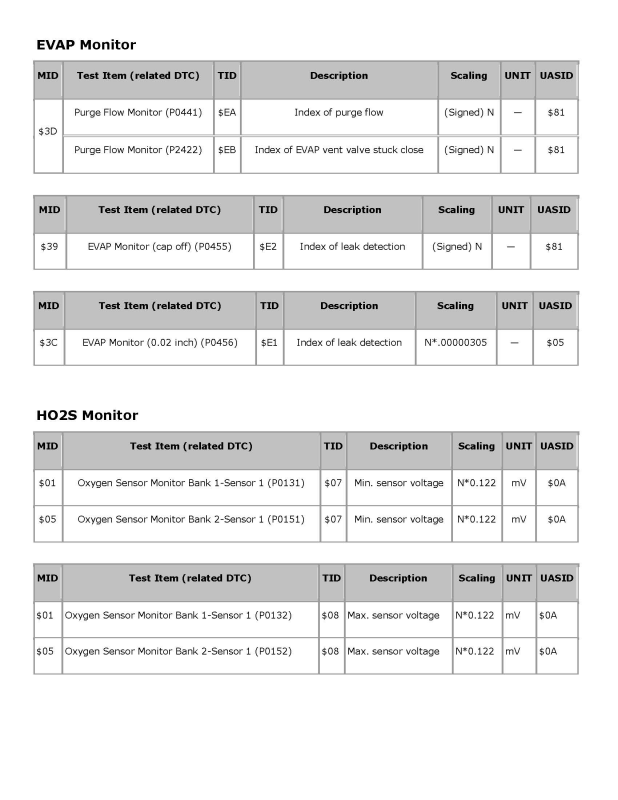

Fig 4: Mode $06 Data For Grand Vitara V6 (4 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

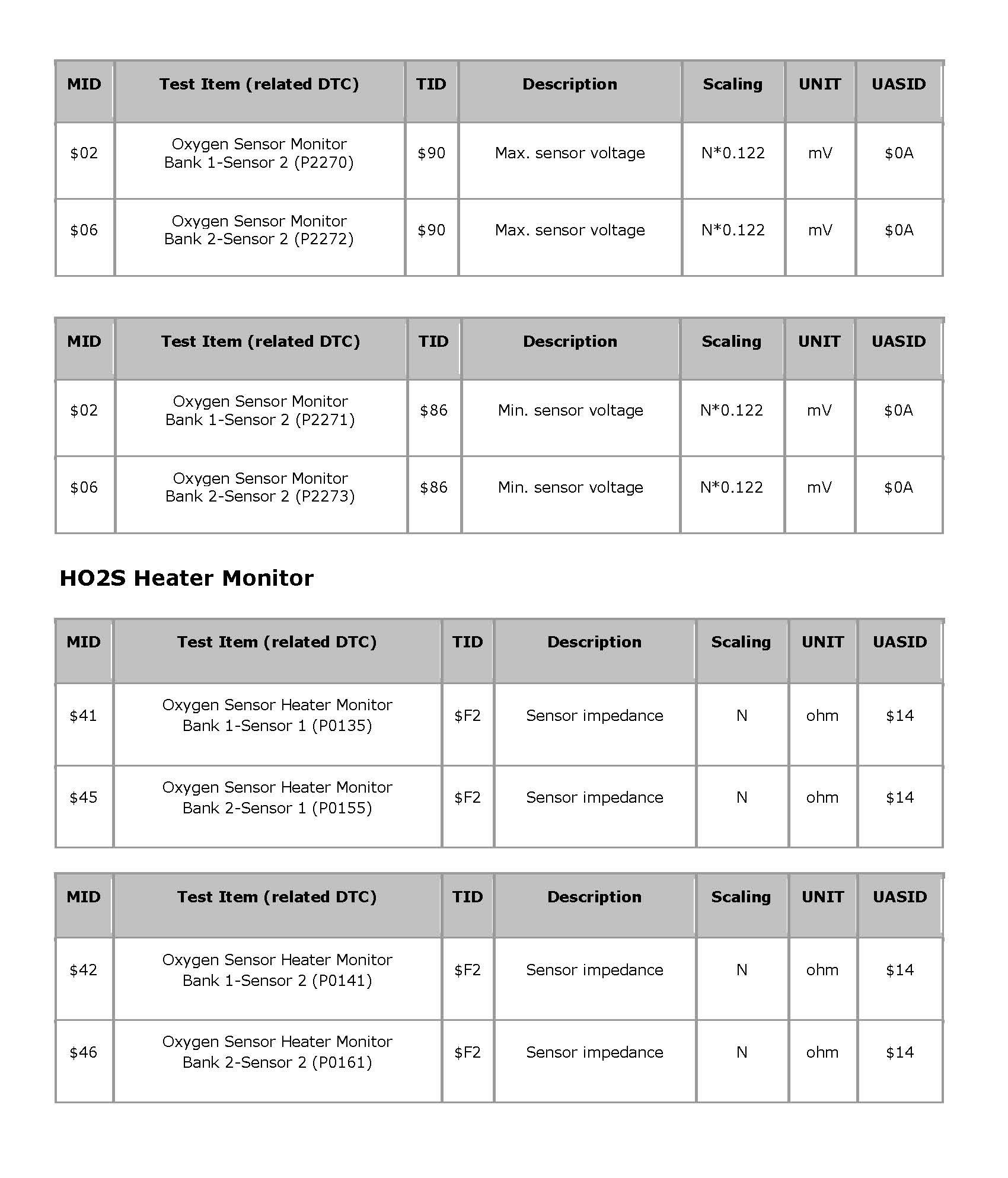

Fig 5: Mode $06 Data For Grand Vitara V6 (5 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
