4 CYL.

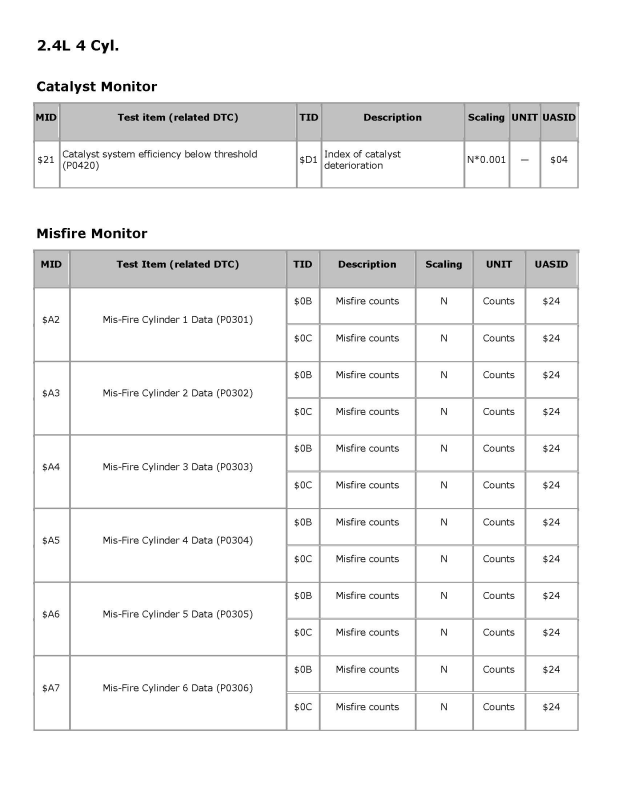

Fig 1: Mode $06 Data For Grand Vitara 4 Cyl. (1 Of 3)
G00525779Courtesy of SUZUKI OF AMERICA CORP.

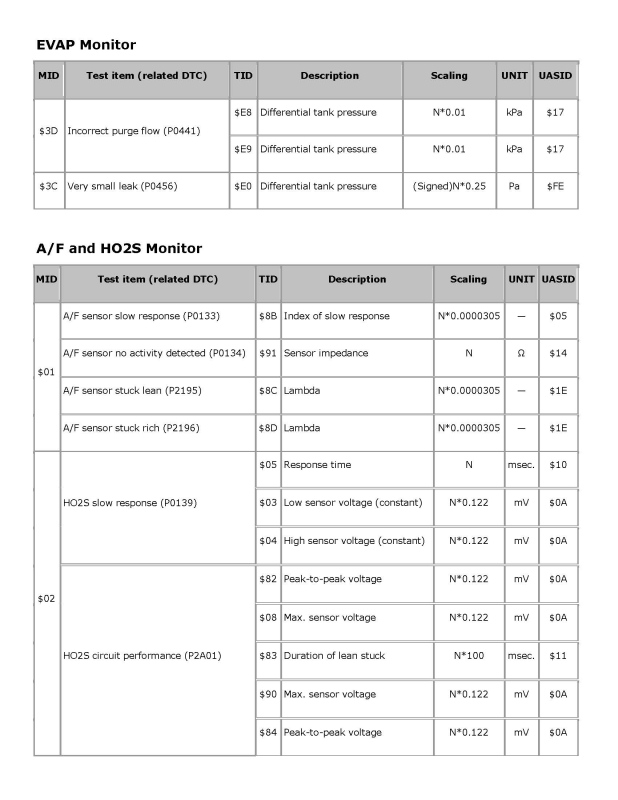

Fig 2: Mode $06 Data For Grand Vitara 4 Cyl. (2 Of 3)
G00525780Courtesy of SUZUKI OF AMERICA CORP.

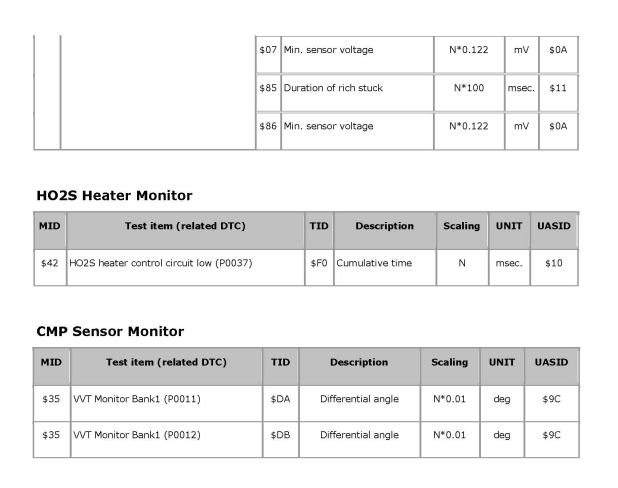

Fig 3: Mode $06 Data For Grand Vitara 4 Cyl. (3 Of 3)
G00525781Courtesy of SUZUKI OF AMERICA CORP.
