Trailer Tow: Wiring Diagram

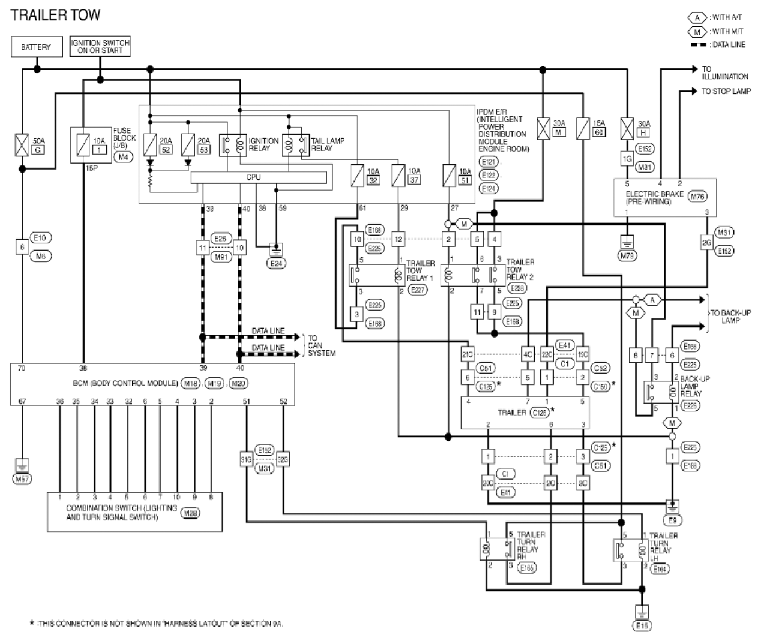

Fig 1: Trailer Tow - Wiring Diagram (1 Of 8)

G06446393

Courtesy of SUZUKI OF AMERICA CORP.

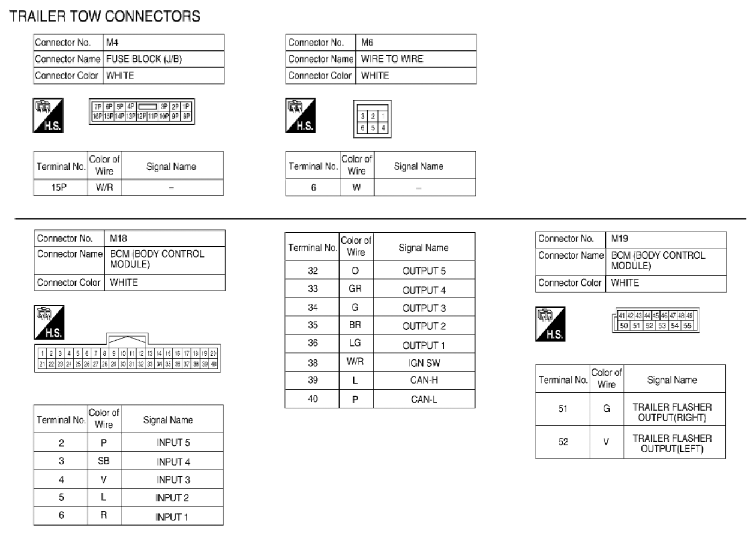

Fig 2: Trailer Tow - Wiring Diagram (2 Of 8)

G06446394

Courtesy of SUZUKI OF AMERICA CORP.

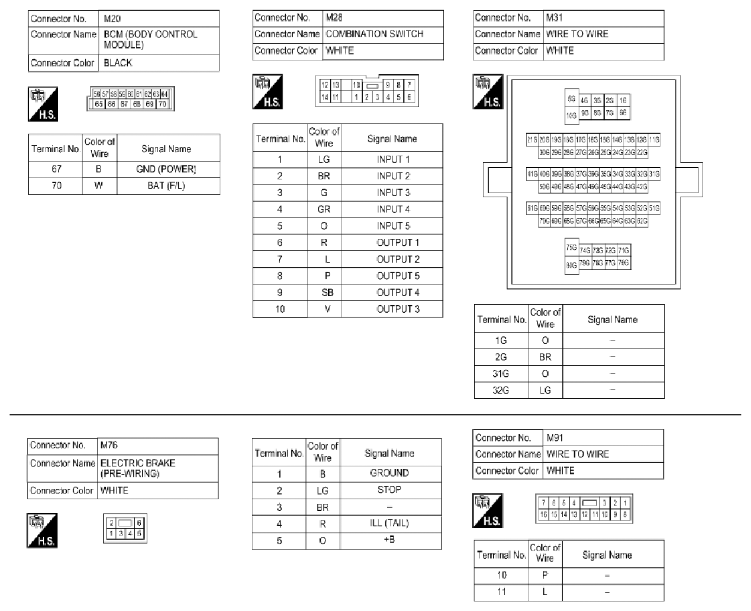

Fig 3: Trailer Tow - Wiring Diagram (3 Of 8)

G06446395

Courtesy of SUZUKI OF AMERICA CORP.

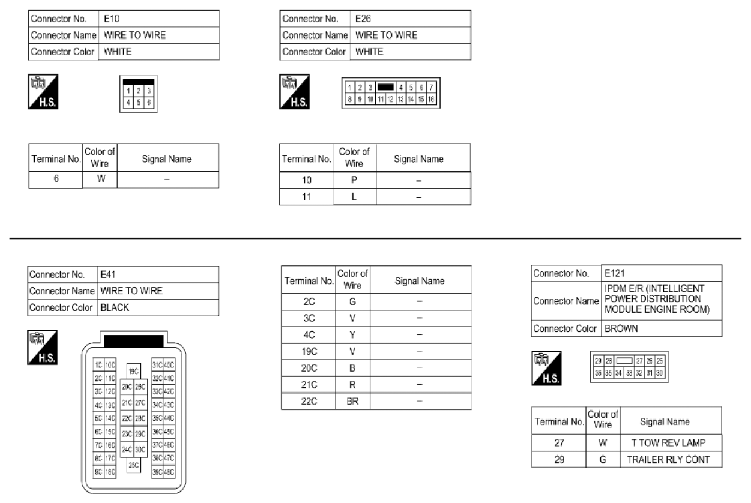

Fig 4: Trailer Tow - Wiring Diagram (4 Of 8)

G06446396

Courtesy of SUZUKI OF AMERICA CORP.

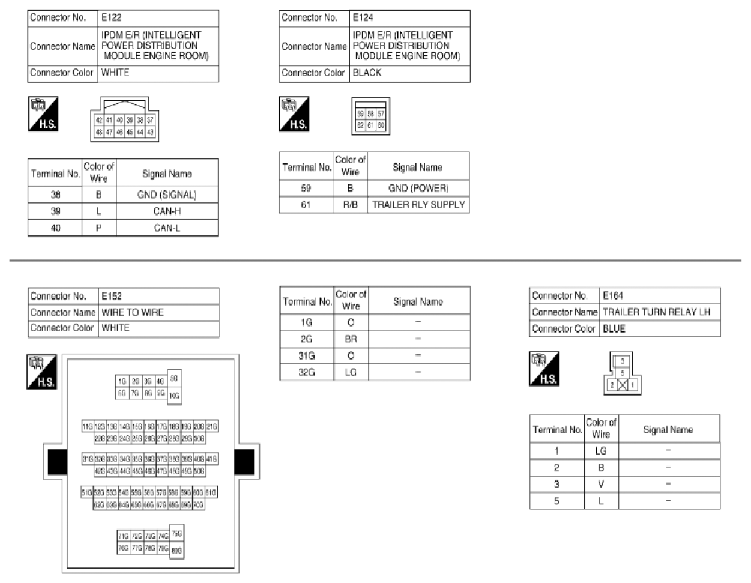

Fig 5: Trailer Tow - Wiring Diagram (5 Of 8)

G06446397

Courtesy of SUZUKI OF AMERICA CORP.

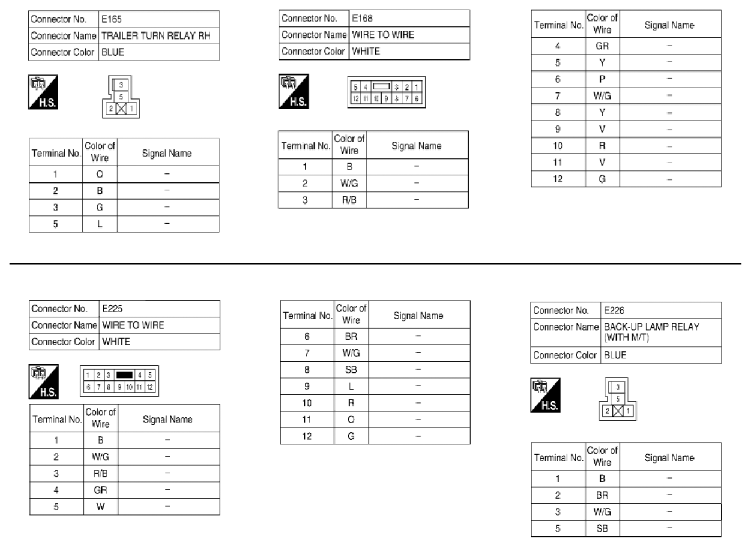

Fig 6: Trailer Tow - Wiring Diagram (6 Of 8)

G06446398

Courtesy of SUZUKI OF AMERICA CORP.

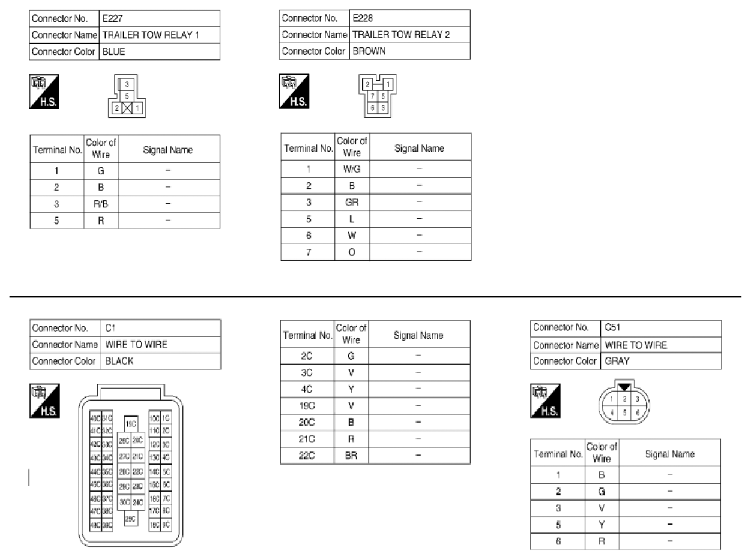

Fig 7: Trailer Tow - Wiring Diagram (7 Of 8)

G06446399

Courtesy of SUZUKI OF AMERICA CORP.

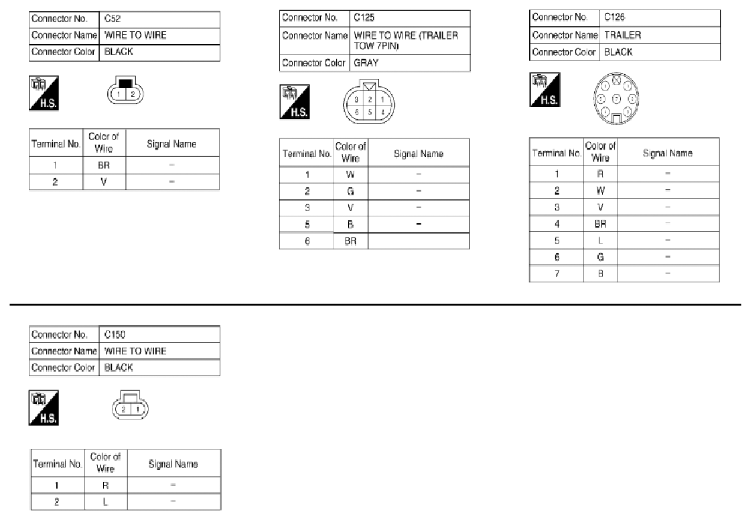

Fig 8: Trailer Tow - Wiring Diagram (8 Of 8)

G06446400

Courtesy of SUZUKI OF AMERICA CORP.
