Starting System: Wiring Diagram [VQ40DE without Clutch Interlock Cancel Switch]

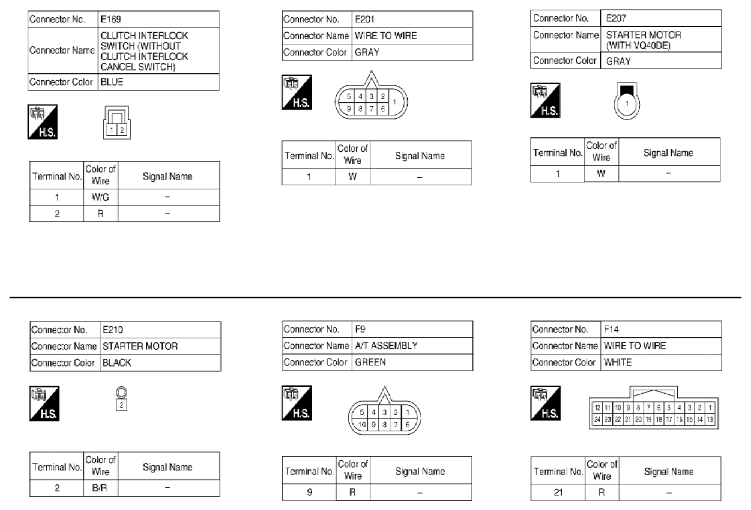

Fig 1: Starting System - Wiring Diagram [VQ40DE Without Clutch Interlock Cancel Switch] (1 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

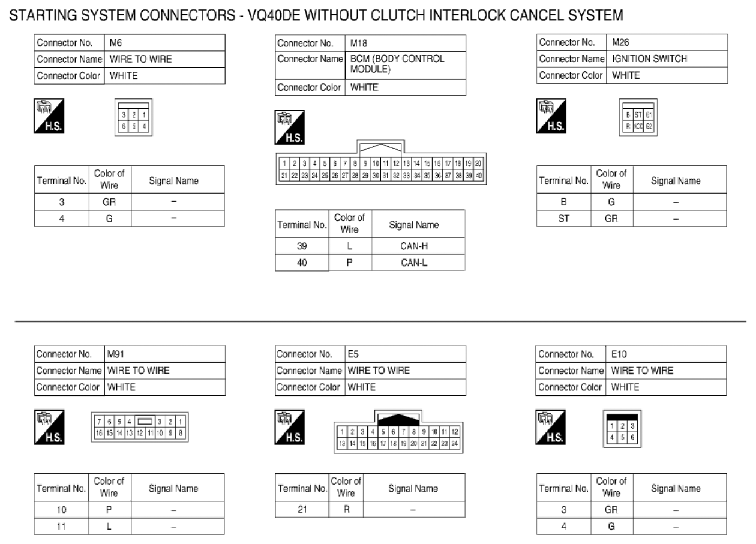

Fig 2: Starting System - Wiring Diagram [VQ40DE Without Clutch Interlock Cancel Switch] (2 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

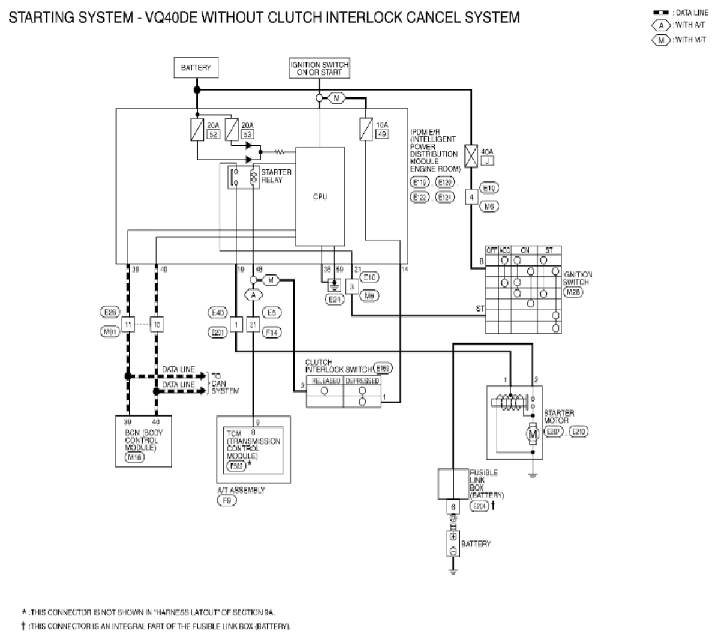

Fig 3: Starting System - Wiring Diagram [VQ40DE Without Clutch Interlock Cancel Switch] (3 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

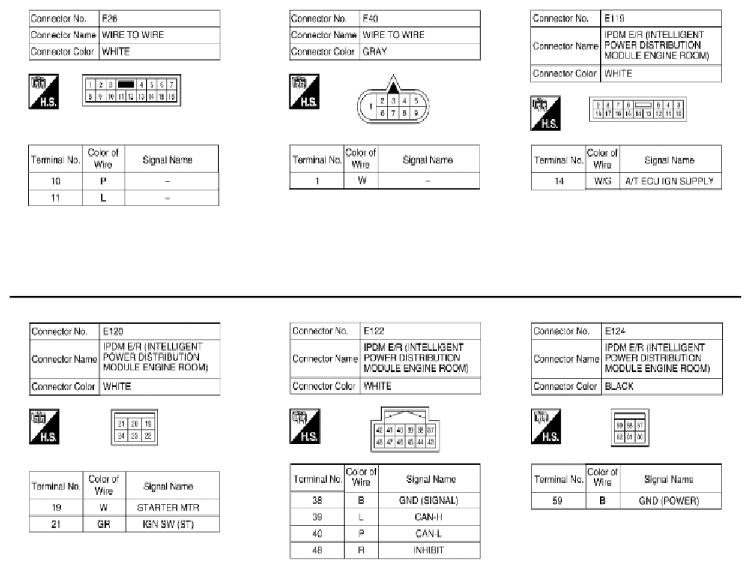

Fig 4: Starting System - Wiring Diagram [VQ40DE Without Clutch Interlock Cancel Switch] (4 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Starting System - Wiring Diagram [VQ40DE Without Clutch Interlock Cancel Switch] (5 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.
