Power Window System: Wiring Diagram

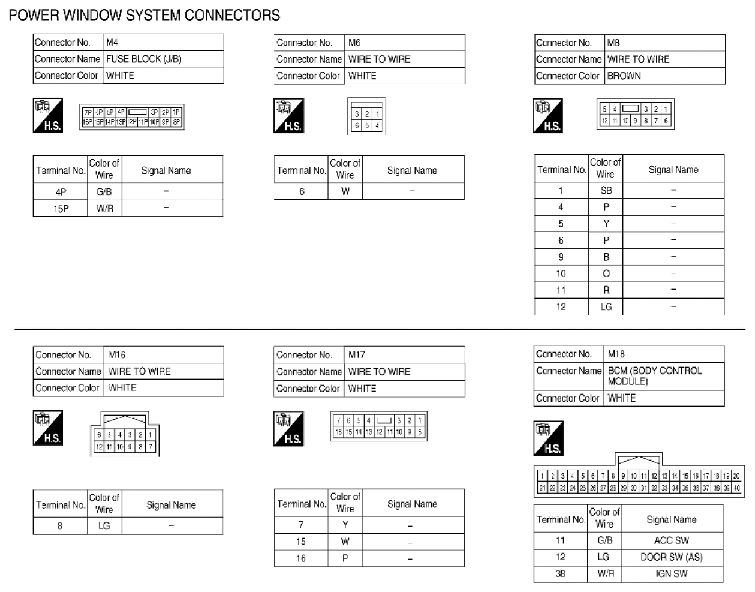

Fig 1: Power Window System - Wiring Diagram (1 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

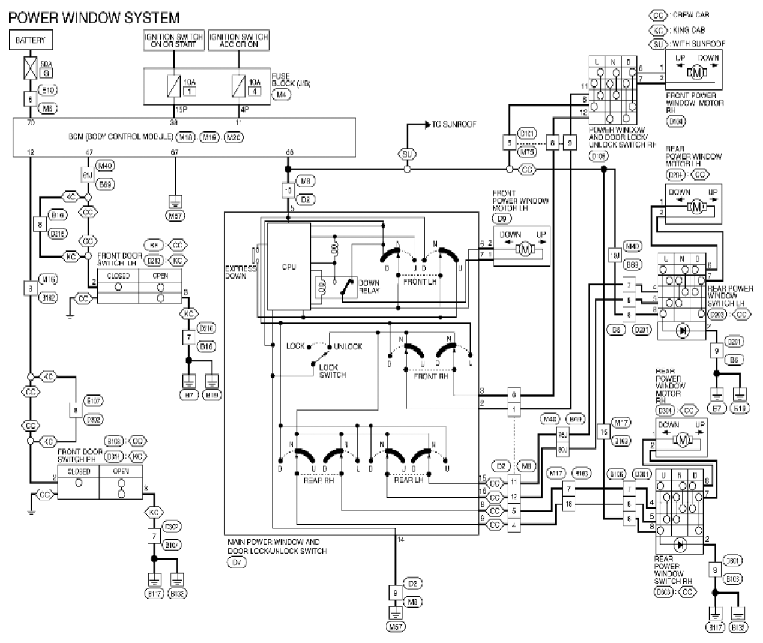

Fig 2: Power Window System - Wiring Diagram (2 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

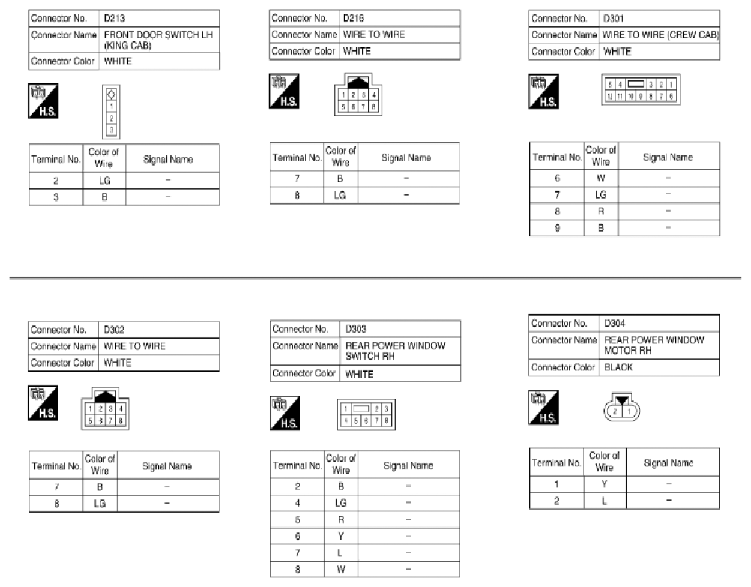

Fig 3: Power Window System - Wiring Diagram (3 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

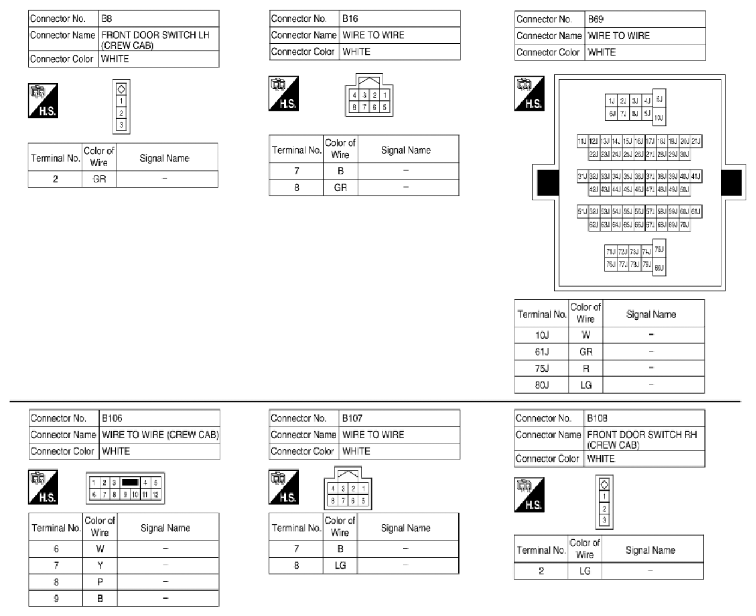

Fig 4: Power Window System - Wiring Diagram (4 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

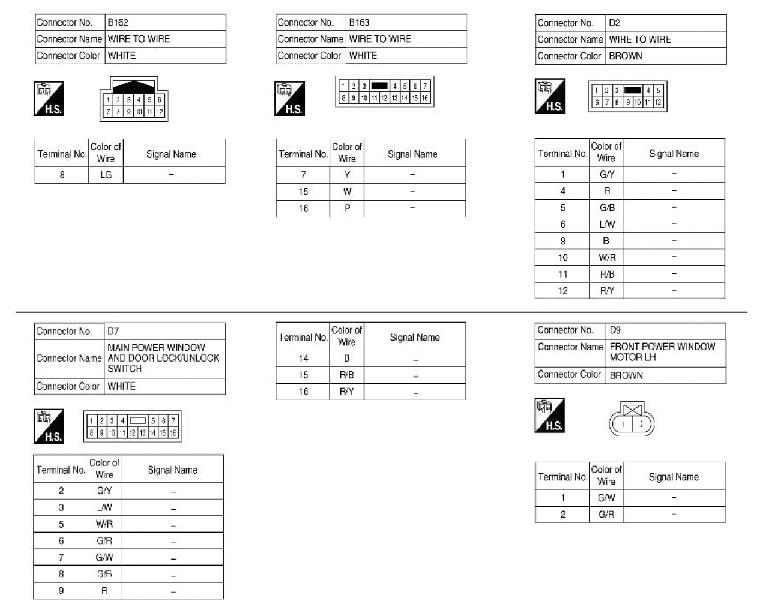

Fig 5: Power Window System - Wiring Diagram (5 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

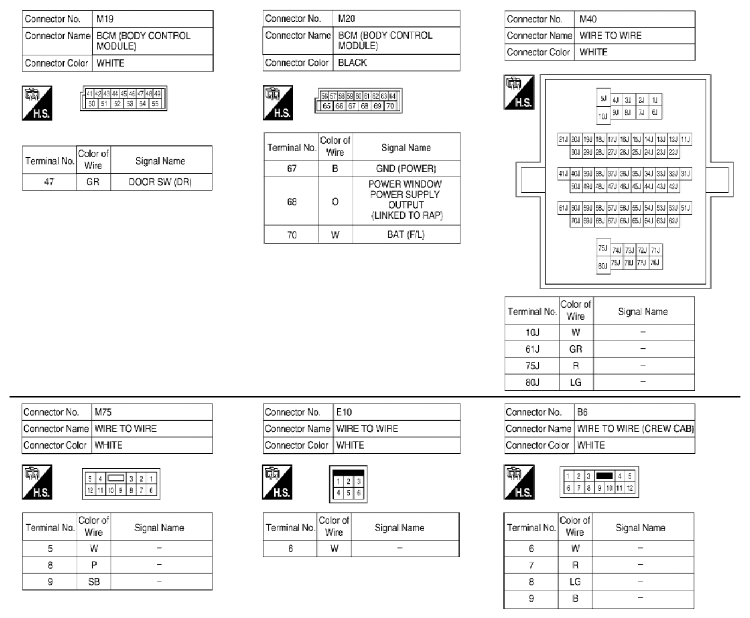

Fig 6: Power Window System - Wiring Diagram (6 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

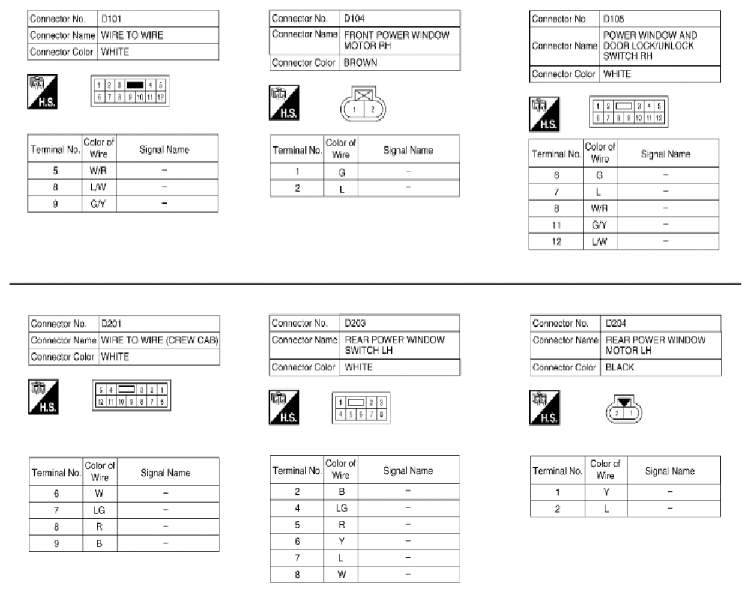

Fig 7: Power Window System - Wiring Diagram (7 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 8: Power Window System - Wiring Diagram (8 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.
