Differential Lock Control Unit: Wiring Diagram

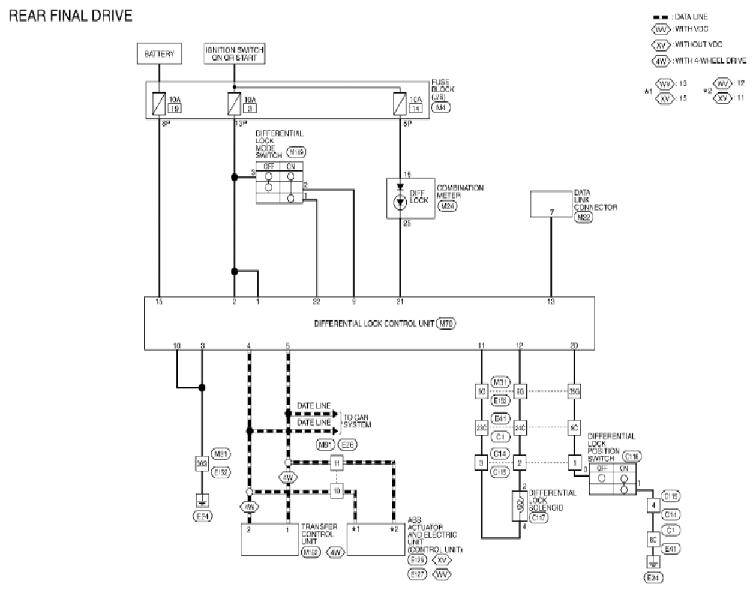

Fig 1: Differential Lock Control Unit - Wiring Diagram (1 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

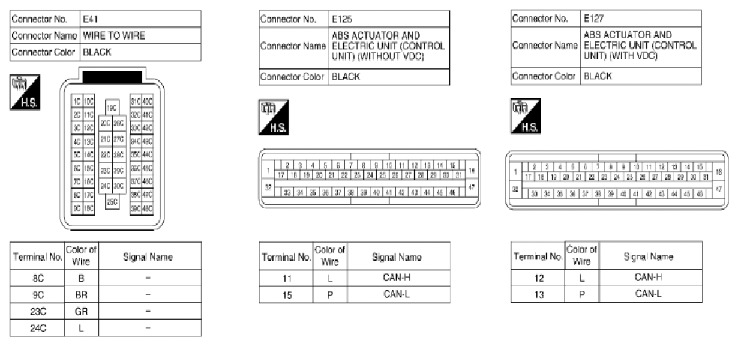

Fig 2: Differential Lock Control Unit - Wiring Diagram (2 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

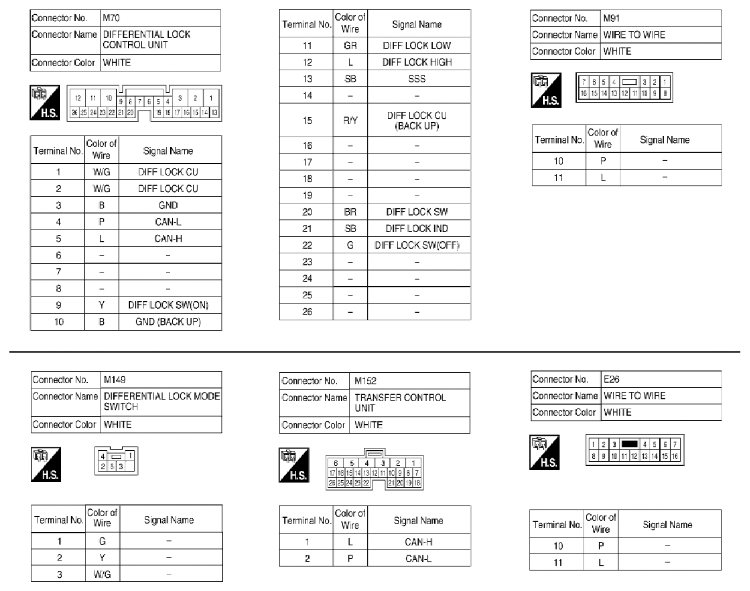

Fig 3: Differential Lock Control Unit - Wiring Diagram (3 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Differential Lock Control Unit - Wiring Diagram (4 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Differential Lock Control Unit - Wiring Diagram (5 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: Differential Lock Control Unit - Wiring Diagram (6 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.
