ABLS: Wiring Diagram

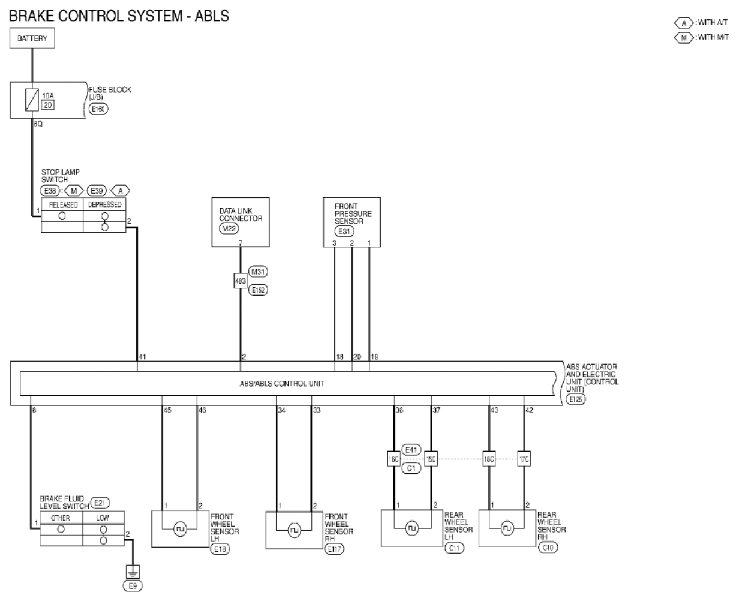

Fig 1: ABLS - Wiring Diagram (1 Of 6)

G06446200

Courtesy of SUZUKI OF AMERICA CORP.

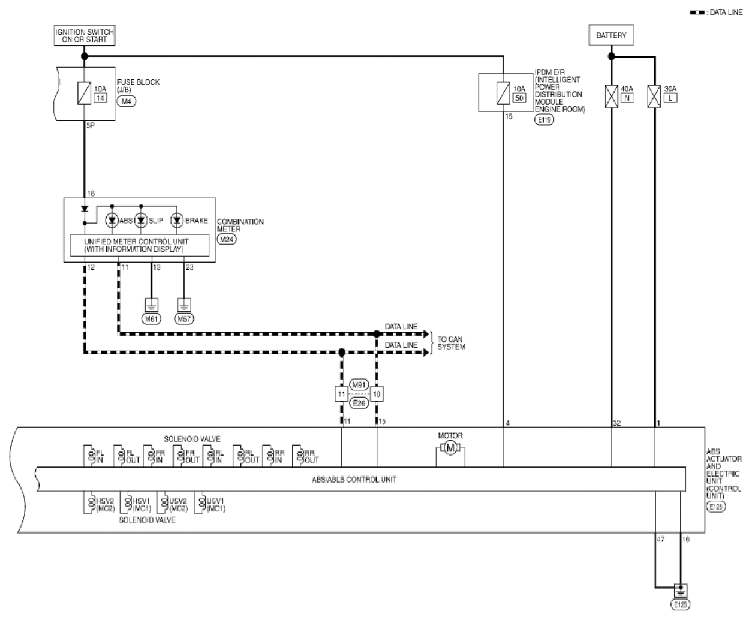

Fig 2: ABLS - Wiring Diagram (2 Of 6)

G06446201

Courtesy of SUZUKI OF AMERICA CORP.

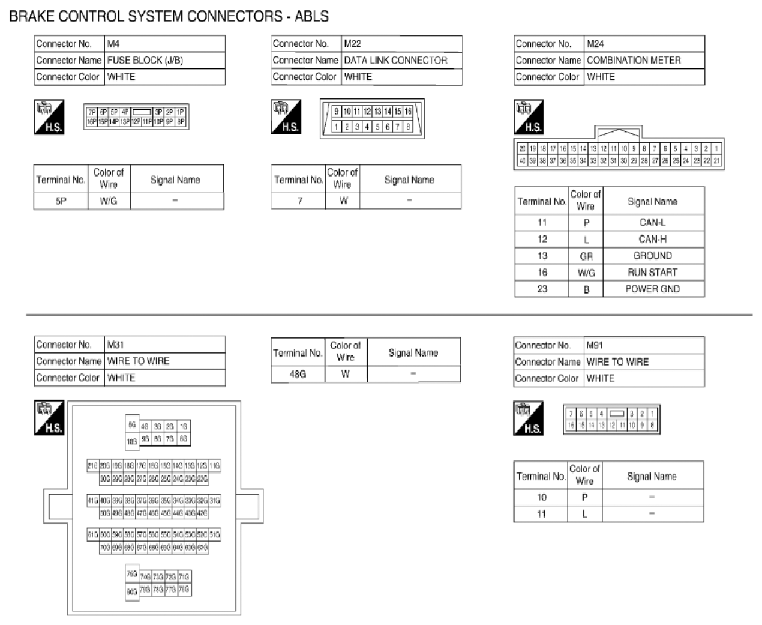

Fig 3: ABLS - Wiring Diagram (3 Of 6)

G06446202

Courtesy of SUZUKI OF AMERICA CORP.

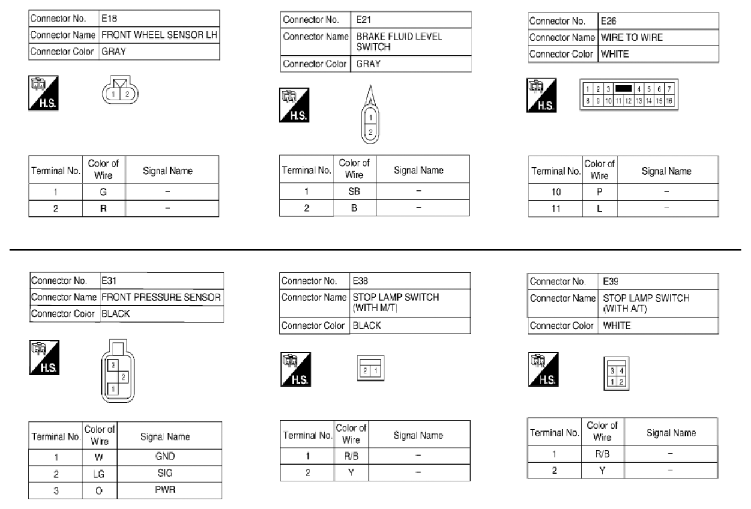

Fig 4: ABLS - Wiring Diagram (4 Of 6)

G06446203

Courtesy of SUZUKI OF AMERICA CORP.

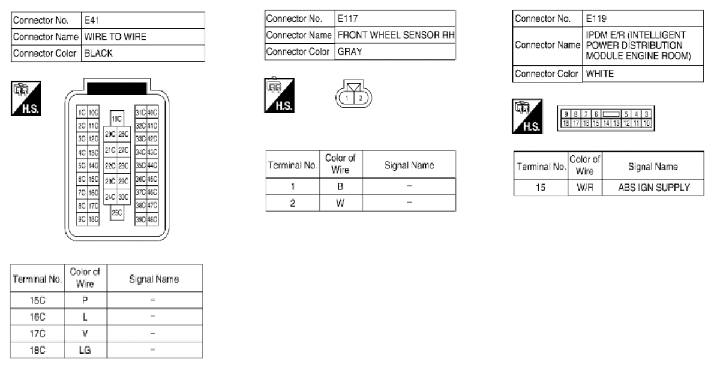

Fig 5: ABLS - Wiring Diagram (5 Of 6)

G06446204

Courtesy of SUZUKI OF AMERICA CORP.

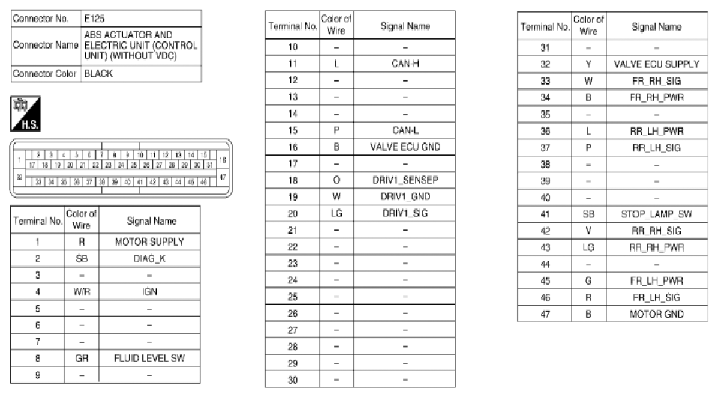

Fig 6: ABLS - Wiring Diagram (6 Of 6)

G06446205

Courtesy of SUZUKI OF AMERICA CORP.
